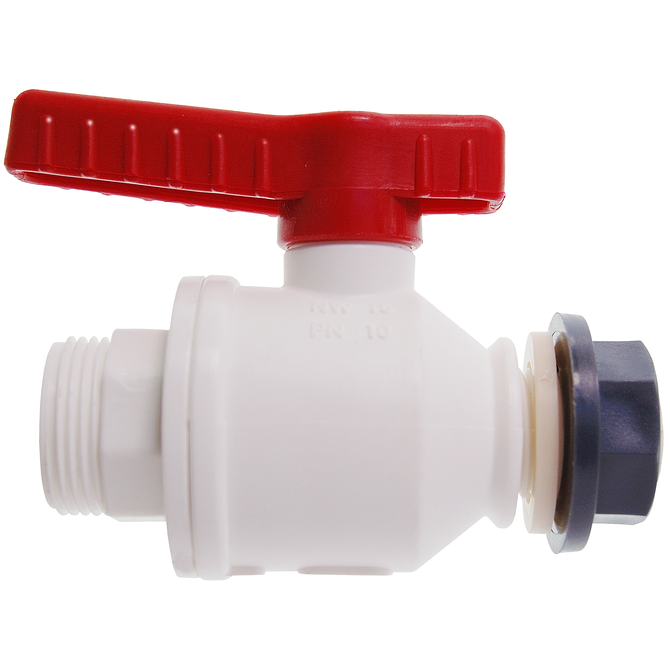

Burkle white polypropylene (PP) ball valves provide manual flow control for laboratory, food and beverage, industrial, and other liquid-handling systems. This product family features an external G-thread inlet and an external metric M-thread outlet, with three sizes available to match different connection requirements.
The three configurations cover G 1/2", G 3/4", and G 1" external inlet threads. Each size has a corresponding M-threaded outlet, making it important to select the valve based on both the inlet and outlet connection requirements.
Burkle specifies PP construction with fibre-glass reinforcement, a PP ball, food-safe NBR handle O-ring, and EPDM/PTFE sealing components. The manufacturer specifies a maximum operating pressure of 10 bar at +20 °C and a maximum operating temperature of 80 °C.
The valve is constructed from polypropylene with fibre-glass reinforcement, with a PP ball inside the valve body. This provides a lightweight valve construction for compatible liquid-handling applications.
The inlet uses an external G-thread connection. Available sizes are G 1/2", G 3/4", and G 1". The G designation identifies a standardized parallel pipe-thread configuration; the nominal inch size should not be interpreted as the actual measured outside diameter of the thread.
Each valve has an external metric M-thread outlet. The outlet size corresponds to the selected valve size: M29 × 1.75, M36 × 3, or M42 × 3.
Burkle identifies this valve family as suitable for food applications. The handle incorporates a food-safe NBR O-ring, with EPDM and PTFE sealing components specified by the manufacturer.
The ball-valve design provides straightforward manual control of liquid flow. The compact threaded configuration is suitable for integration into compatible laboratory, processing, and fluid-handling assemblies.
All three products belong to the same Burkle white PP ball valve family. The main difference is the size of the external G-thread inlet and corresponding M-thread outlet.
| Burkle SKU | Inlet Connection | Outlet Connection | Nominal Width |
|---|---|---|---|
| 0500-8202 | G 1/2" external | M29 × 1.75 external | 15 mm |
| 0500-8203 | G 3/4" external | M36 × 3 external | 20 mm |
| 0500-8201 | G 1" external | M42 × 3 external | 25 mm |
Select this model when your existing connection requires a G 1/2" external inlet thread and the mating outlet connection is M29 × 1.75.
Select this model when your existing connection requires a G 3/4" external inlet thread and the mating outlet connection is M36 × 3.
Select this model when your existing connection requires a G 1" external inlet thread and the mating outlet connection is M42 × 3.
| Application | How the Valve Helps |
|---|---|
| Laboratory fluid handling | Provides manual flow control within compatible liquid-handling assemblies and laboratory systems. |
| Food and beverage QA/QC | Provides a PP ball valve configuration that Burkle identifies as suitable for food applications. |
| Brewing and production | Allows compatible fluid lines and equipment to be manually opened or closed during liquid transfer. |
| Industrial fluid handling | Provides a threaded PP ball valve option where the specified G-thread and M-thread connections are required. |
| Research and laboratory systems | Provides a compact manual valve for compatible liquid-handling equipment and assemblies. |
| Product type | PP ball valve |
| Colour | White |
| Body material | PP (polypropylene), fibre-glass reinforced |
| Ball material | PP (polypropylene) |
| Handle O-ring | Food-safe NBR |
| Sealing materials | EPDM and PTFE |
| Maximum operating pressure | 10 bar at +20 °C |
| Maximum operating temperature | 80 °C |
| Food applications | Identified by Burkle as suitable for food applications |
| Specification | 0500-8202 | 0500-8203 | 0500-8201 |
|---|---|---|---|
| Inlet thread | G 1/2" external | G 3/4" external | G 1" external |
| Outlet thread | M29 × 1.75 external | M36 × 3 external | M42 × 3 external |
| Nominal width | 15 mm | 20 mm | 25 mm |
Burkle lists several accessories that correspond to the connection sizes used with this valve family.
| Accessory | Burkle Part Number |
|---|---|
| Container connection, white, 1/2" external | 8533-0012 |
| Container connection, white, 3/4" external | 8533-0034 |
| Container connection, white, 1" external | 8533-0100 |
| Tube bend with cap nut, M29 × 1.75 | 8548-0020 |
| Tube bend with cap nut, M36 × 3 | 8548-0025 |
| White tube bend with cap nut, M42 × 3 | 8548-0030 |
| PTFE sealing tape, 12 mm × 12 m | 0006-4514 |
Verify the complete thread configuration before ordering.
These three valves use an external G-thread inlet. The available sizes are G 1/2", G 3/4", and G 1". The outlet is a separate metric M-thread.
For example, the 0500-8201 is not simply a "1-inch valve." It has a G 1" external inlet and M42 × 3 external outlet. Likewise, 0500-8202 uses G 1/2" external to M29 × 1.75 external, while 0500-8203 uses G 3/4" external to M36 × 3 external.
G and M threads are different thread systems. Do not select a mating component based only on the nominal inch size. Confirm both the thread type and thread dimensions.
Burkle also offers a related 0500-810x family with internal G-thread inlets. If your installation requires an internal rather than external G-thread, the 810x configuration is the relevant family.
Operate the valve within the manufacturer's specified pressure and temperature limits and verify material compatibility with the liquid being handled.
Burkle specifies a maximum operating pressure of 10 bar at +20 °C and a maximum operating temperature of 80 °C. These limits should not be treated as universal limits for every fluid or installation condition.
For food-related applications, Burkle identifies the valve family as suitable for food applications. Any additional Canadian regulatory, sanitation, or process requirements should be evaluated according to the specific installation and intended use.
Cambridge Environmental Products supplies laboratory and fluid-handling equipment to Canadian laboratories, universities and colleges, food and beverage manufacturers, breweries, wastewater and environmental laboratories, research facilities, and industrial QA/QC operations.
These Burkle PP ball valves are available in Canada with CAD pricing and Canadian purchasing support. If you are unsure which connection configuration you require, provide Cambridge with the thread specifications, equipment connection details, or a photo of the existing fitting and we can help identify the appropriate valve.
They are manual ball valves for controlling liquid flow in compatible laboratory, food and beverage, industrial, production, and other fluid-handling systems.
The models differ primarily by their inlet and outlet thread sizes. 0500-8202 is G 1/2" external to M29 × 1.75 external, 0500-8203 is G 3/4" external to M36 × 3 external, and 0500-8201 is G 1" external to M42 × 3 external.
These are standardized G-thread pipe connection designations. The nominal inch designation does not mean that the actual outside diameter of the thread is exactly that number of inches.
They are external. This is the key distinction between the 0500-820x family and Burkle's related 0500-810x family, which uses internal G-thread inlets.
The outlet threads are external metric threads. The 1/2" model uses M29 × 1.75, the 3/4" model uses M36 × 3, and the 1" model uses M42 × 3.
Burkle identifies this product family as suitable for food applications. The manufacturer also specifies a food-safe NBR O-ring for the handle. Additional application-specific Canadian requirements should be evaluated separately.
The valve body and ball are made from PP, with fibre-glass reinforcement in the valve construction. Burkle specifies a food-safe NBR handle O-ring and EPDM/PTFE sealing components.
Burkle specifies a maximum operating pressure of 10 bar at +20 °C.
Burkle specifies a maximum operating temperature of 80 °C.
If your connection requires a G 1" external inlet, select Burkle SKU 0500-8201. Its outlet is M42 × 3 external and its nominal width is 25 mm.
Yes. Cambridge Environmental Products supplies Burkle products to Canadian customers. Contact us for current CAD pricing, availability, and Canadian purchasing support.
Not sure which valve configuration you need? Send Cambridge the required inlet thread, outlet thread, valve size, equipment connection, or a photo of the existing fitting. We can help identify the appropriate Burkle SKU for your application.
