Burkle White PP Ball Valves provide controlled liquid flow from compatible containers, drums, and liquid-handling systems. This product family includes three configurations with G 1/2", G 3/4", and G 1" inlet threads, each paired with a corresponding metric external outlet thread.
Constructed from polypropylene (PP) with NBR and PTFE components, these white ball valves are designed for laboratory, food and beverage, production, and other liquid-handling applications where a threaded valve is required. Burkle specifies a maximum operating pressure of 10 bar at +20°C and a maximum operating temperature of 80°C. Burkle also identifies this valve family as suitable for food applications.
The primary selection factor is the inlet thread size and the outlet connection required by your system. Choose the appropriate variant based on the G-thread connection on your container and the metric M-thread required on the discharge side.
Three Burkle White PP Ball Valve configurations are available. The models share the same general valve family but differ in inlet size, outlet thread, and nominal diameter.
| Burkle SKU | Inlet / Container Side | Outlet Side | Nominal Diameter | Choose This Variant When... |
|---|---|---|---|---|
| 0500-8102 | G 1/2" internal thread | M29 × 1.75 external thread | 15 mm | Your container requires a G 1/2" internal inlet connection and the outlet requires M29 × 1.75. |
| 0500-8103 | G 3/4" internal thread | M36 × 3 external thread | 20 mm | Your container requires a G 3/4" internal inlet connection and the outlet requires M36 × 3. |
| 0500-8101 | G 1" internal thread | M42 × 3 external thread | 25 mm | Your container requires a G 1" internal inlet connection and the outlet requires M42 × 3. |
The product family covers G 1/2", G 3/4", and G 1" internal inlet connections. This allows the valve to be selected according to the threaded connection already present on the container or liquid-handling system.
The valve body is made from polypropylene (PP) and is supplied in white. Burkle also specifies NBR and PTFE among the valve materials. This combination makes the valve suitable for a range of liquid-handling applications, subject to chemical compatibility with the specific medium.
Unlike a valve with a simple outlet spout, these models use external metric threads on the discharge side. The outlet sizes are matched to the individual inlet configuration: M29 × 1.75, M36 × 3, or M42 × 3.
Burkle identifies this white PP ball valve family as suitable for food applications and provides food-contact documentation for the applicable models and materials. This makes the family relevant to food and beverage processing and liquid-handling applications where the appropriate documentation and operating conditions are met.
Burkle specifies a maximum operating pressure of 10 bar (145 psi) at +20°C. This provides a defined pressure specification for systems where operating pressure is an important part of valve selection. The rating should not be assumed to remain unchanged at other temperatures or conditions.
Burkle specifies the flow rate as low flow rate. These valves are therefore intended for controlled liquid flow rather than applications where very high-volume transfer is the primary requirement.
Select the valve by matching the inlet thread on your container and the metric thread required on the outlet.
| If Your Container Has... | Select | Outlet |
|---|---|---|
| G 1/2" internal thread | 0500-8102 | M29 × 1.75 external |
| G 3/4" internal thread | 0500-8103 | M36 × 3 external |
| G 1" internal thread | 0500-8101 | M42 × 3 external |
A nominal 1/2", 3/4", or 1" size does not by itself confirm compatibility. These valves use G internal inlet threads and M external outlet threads. Confirm both thread standards and sizes before ordering. If you are replacing an existing valve and are unsure of the connection, contact Cambridge with the container manufacturer, model number, and a photo of the fitting.
| Application | How This Product Helps |
|---|---|
| Food and beverage processing | Provides controlled liquid flow from compatible containers and process equipment where the applicable food-contact requirements are met. |
| Laboratory liquid handling | Provides a compact threaded valve for controlled dispensing, draining, and transfer of compatible liquids. |
| Liquid storage containers | Allows liquids to be withdrawn through a dedicated threaded valve rather than manually pouring from the container. |
| Production facilities | Supports controlled liquid transfer from compatible storage and process containers. |
| Industrial liquid handling | Provides a threaded valve configuration for systems using G-threaded container connections and compatible M-threaded outlets. |
| Specification | 0500-8102 | 0500-8103 | 0500-8101 |
|---|---|---|---|
| Inlet connection | G 1/2" internal | G 3/4" internal | G 1" internal |
| Outlet connection | M29 × 1.75 external | M36 × 3 external | M42 × 3 external |
| Nominal diameter | 15 mm | 20 mm | 25 mm |
| SKU | 0500-8102 | 0500-8103 | 0500-8101 |
| Manufacturer | Burkle |
| Product family | Ball valve PP, white |
| General material | Polypropylene (PP) |
| Additional materials | NBR and PTFE |
| Colour | White |
| Valve design | Ball valve |
| Maximum operating pressure | 10 bar (145 psi) at +20°C |
| Maximum operating temperature | 80°C (176°F) |
| Flow rate | Low flow rate |
| Special features | Extensive accessories |
| Packaging unit | 1 piece |
Burkle identifies these white PP ball valves as suitable for food applications and provides manufacturer food-contact documentation for the product family. The valves use polypropylene, food-suitable NBR, and PTFE components as specified by Burkle.
Food-contact suitability remains dependent on the specific application, medium, temperature, and applicable regulatory requirements. The manufacturer's documentation should be reviewed when the valve will be used with food, beverages, or drinking water.
Burkle's food-contact documentation should not be interpreted as a blanket Canadian regulatory approval or certification. For Canadian food, beverage, or drinking-water applications, confirm that the selected valve and complete installation meet the requirements applicable to your specific process.
Burkle lists several accessories specifically for the white PP ball valve family, including container connections, threaded tube bends, and PTFE sealing tape. These accessories can help adapt the valve to compatible containers and discharge configurations.
| Accessory | Burkle Part Number | Purpose |
|---|---|---|
| White container connection, 1/2" external | 8533-0012 | Compatible container connection accessory. |
| White container connection, 3/4" external | 8533-0034 | Compatible container connection accessory. |
| White container connection, 1" external | 8533-0100 | Compatible container connection accessory. |
| Tube bend with cap nut, M29 × 1.75 | 8548-0020 | Provides an angled discharge configuration for compatible connections. |
| Tube bend with cap nut, M36 × 3 | 8548-0025 | Provides an angled discharge configuration for compatible connections. |
| White tube bend with cap nut, M42 × 3 | 8548-0030 | Provides an angled discharge configuration for compatible connections. |
| PTFE thread sealing tape, 12 mm × 12 m | 0006-4514 | For sealing compatible threaded connections. |
Match the inlet thread: The three models use G 1/2", G 3/4", or G 1" internal inlet threads. Confirm the thread size on your container before selecting a valve.
Match the outlet thread: Each model has a different metric external outlet thread. The 1/2" model uses M29 × 1.75, the 3/4" model uses M36 × 3, and the 1" model uses M42 × 3.
Do not assume nominal sizes are interchangeable: G and M threads use different thread standards. A nominally similar size does not necessarily indicate compatibility.
Check chemical compatibility: The valve contains PP, NBR, and PTFE components. Confirm compatibility with the specific liquid, concentration, temperature, and exposure conditions before use.
Check complete-system ratings: Burkle specifies 10 bar maximum operating pressure at +20°C and 80°C maximum operating temperature. The container, fittings, tubing, and other connected components must also be rated for the intended operating conditions.
Cambridge Environmental Products supplies laboratory and industrial equipment and supplies to Canadian laboratories, universities and colleges, food and beverage QA/QC facilities, production facilities, research laboratories, and other scientific and industrial organizations.
These Burkle White PP Ball Valves are available for Canadian purchasing with CAD pricing and Canadian purchasing support. If you are replacing an existing valve or are unsure which thread configuration you need, Cambridge can help identify the appropriate model.
For compatibility assistance, provide the container manufacturer and model, inlet connection size, outlet connection requirement, liquid or media being handled, and operating pressure and temperature where applicable.
These valves are used to control, dispense, drain, and transfer compatible liquids from containers and liquid-handling systems. Burkle identifies the product family as suitable for food applications as well as general liquid-handling uses.
The models differ primarily in their inlet and outlet thread sizes. 0500-8102 uses G 1/2" internal and M29 × 1.75 external threads; 0500-8103 uses G 3/4" internal and M36 × 3 external threads; and 0500-8101 uses G 1" internal and M42 × 3 external threads.

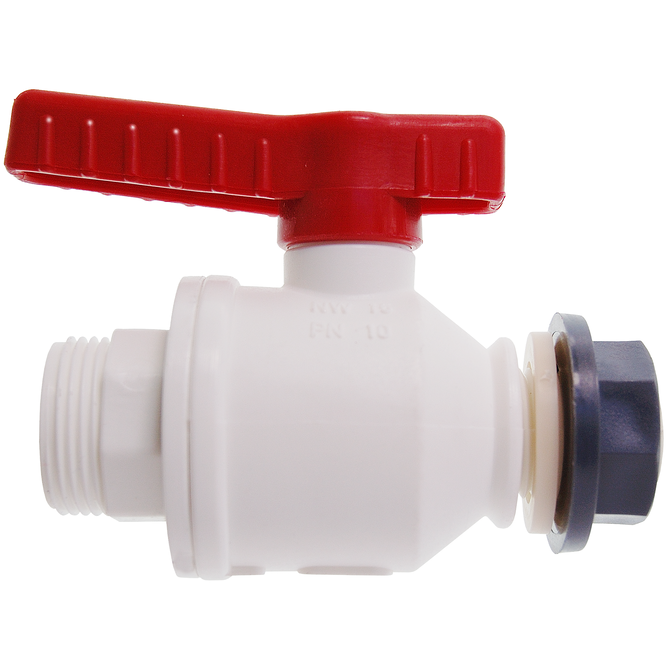

Model 0500-8102 has a G 1/2" internal inlet thread and an M29 × 1.75 external outlet thread.

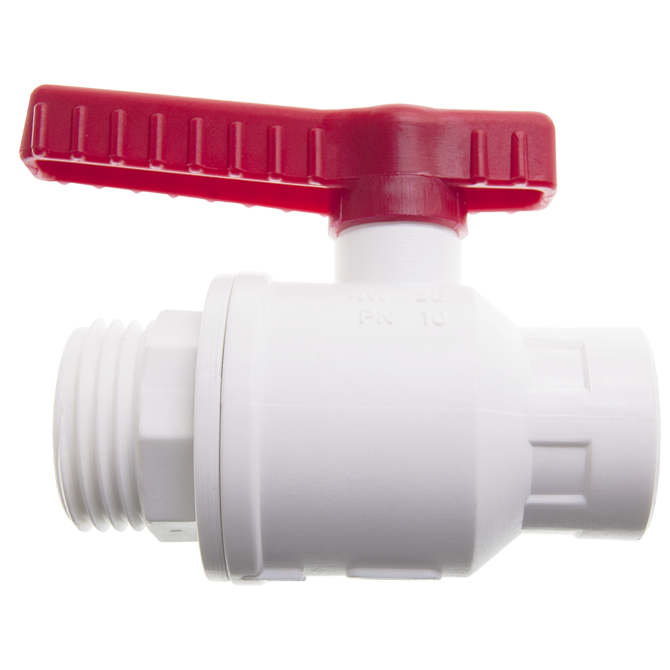

Model 0500-8103 has a G 3/4" internal inlet thread and an M36 × 3 external outlet thread.
Model 0500-8101 has a G 1" internal inlet thread and an M42 × 3 external outlet thread.
Yes. Burkle identifies the white PP ball valve family as suitable for food applications and provides food-contact documentation. Application-specific requirements should still be verified for the food, beverage, temperature, and complete installation involved.
Burkle specifies a maximum operating pressure of 10 bar (145 psi) at +20°C.
The maximum operating temperature specified by Burkle is 80°C (176°F).
The main valve material is polypropylene (PP), with NBR and PTFE also specified by Burkle.
The outlet uses an external metric thread, allowing compatible threaded accessories to be connected. Burkle lists corresponding tube bends and other accessories for the valve family.
First identify the G-thread size on the container, then confirm whether the required outlet accessory uses the corresponding M thread. If you are unsure, provide Cambridge with the container manufacturer, model number, and a photo of the existing connection.
Yes. Cambridge Environmental Products provides Canadian purchasing support and CAD pricing for laboratory and industrial products.
Not sure which of the three Burkle White PP Ball Valve configurations will fit your container or liquid-handling system? Cambridge can help identify the correct model and compatible accessories.
When contacting us, provide the container manufacturer and model, inlet thread size, required outlet connection, liquid or media being handled, and operating pressure and temperature. A photo of the existing fitting can also help us identify the correct configuration.
