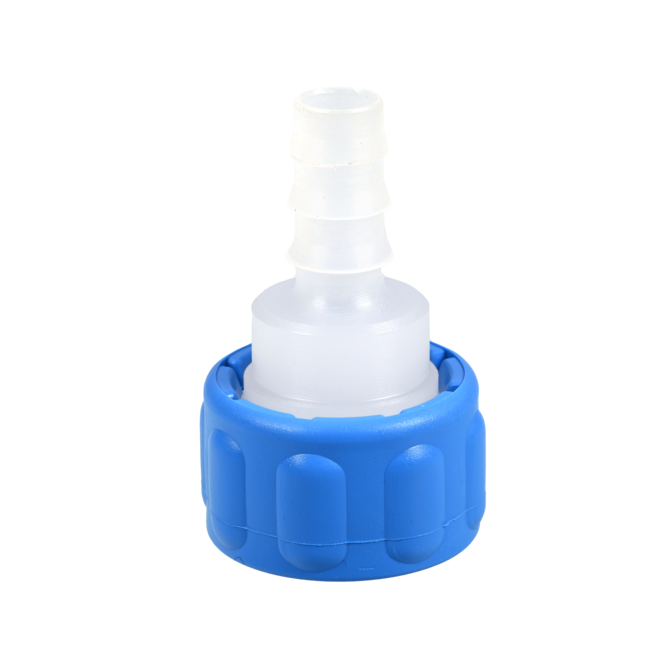

Burkle StopCock hose nozzles are replacement and accessory fittings designed to connect dispensing hose directly to compatible Burkle StopCock drain taps. Available in six nominal hose diameters from 2 to 14 mm, these nozzles provide a practical way to transfer liquids from drums, barrels and other compatible containers to receiving containers located farther away or in difficult-to-reach positions.
Each hose nozzle installs onto the G 3/4" external thread of a compatible StopCock using the supplied-style cap-nut connection. Once installed, a dispensing hose can be connected to the straight nozzle to direct liquid where it is needed.
Choose the nozzle based on your hose's nominal internal diameter:
These hose nozzles convert a compatible Burkle StopCock outlet into a direct hose connection. This allows liquid to be transferred through tubing instead of dispensing directly from the tap outlet.

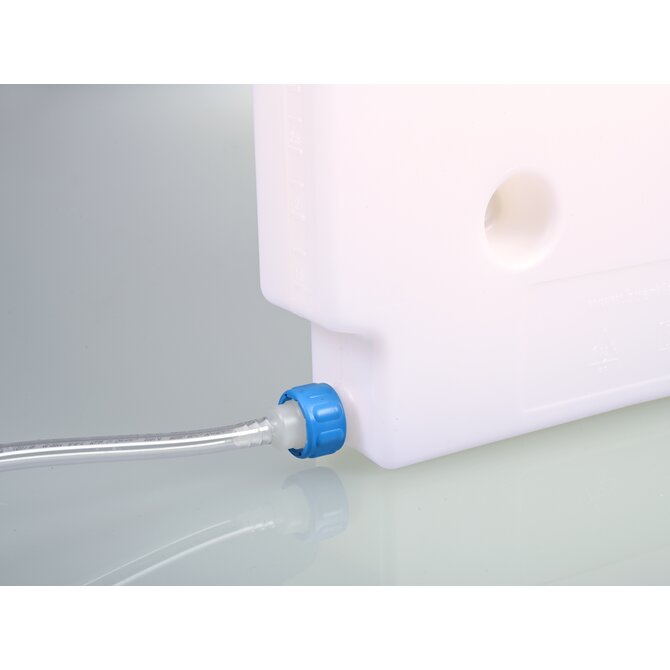

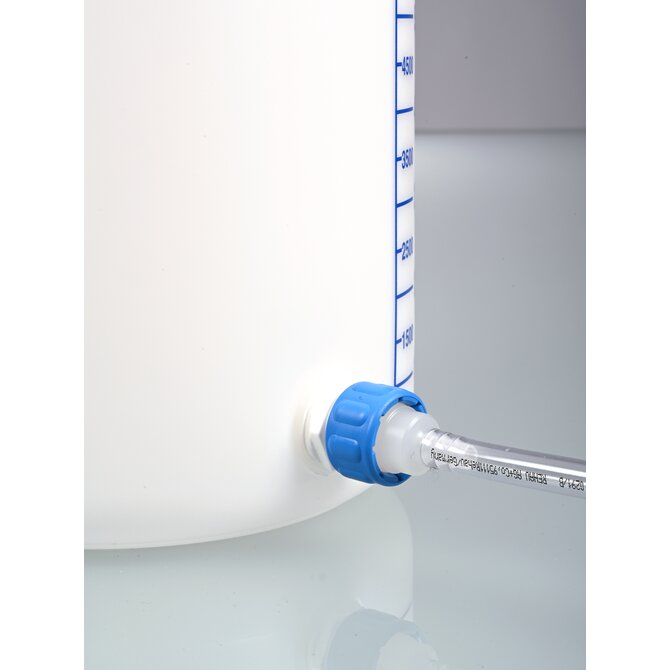

A connected dispensing hose can extend the reach of the StopCock, making it easier to fill containers that are positioned away from the source container or located in difficult-to-access areas.
The Burkle range includes six nominal hose diameters from 2 mm through 14 mm. Selecting the correct variant based on the hose's internal diameter helps ensure the nozzle and dispensing hose are appropriately matched.
The hose nozzles are manufactured from polypropylene (PP) with low-density polyethylene (PE-LD) listed as a further material. Burkle describes the nozzles as chemically resistant and dimensionally stable. Chemical compatibility should still be confirmed for the specific liquid being transferred.
| Part Number | Nominal Hose Diameter | Nozzle Spout OD | Length |
|---|---|---|---|

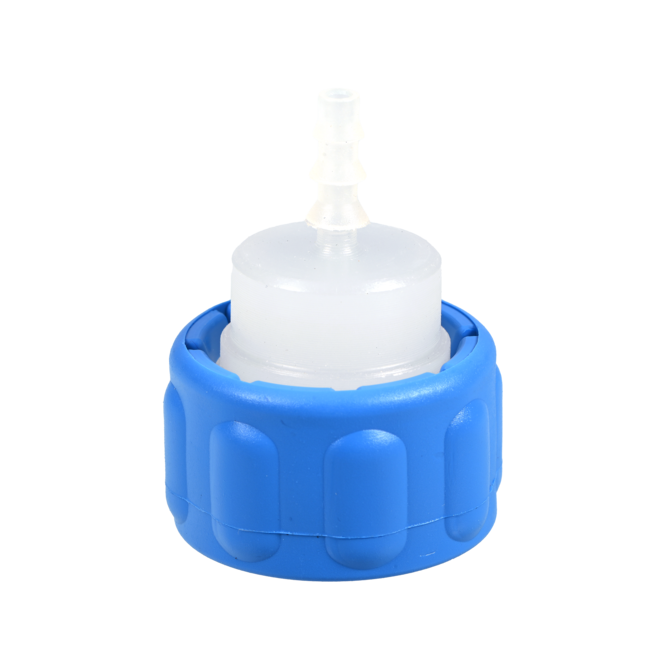

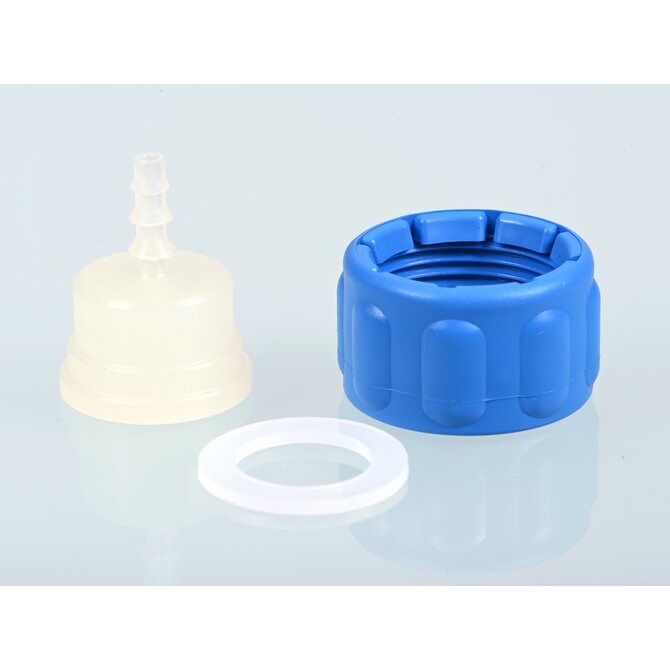

| 0525-1304 | 2 mm | 4 mm | 42 mm |

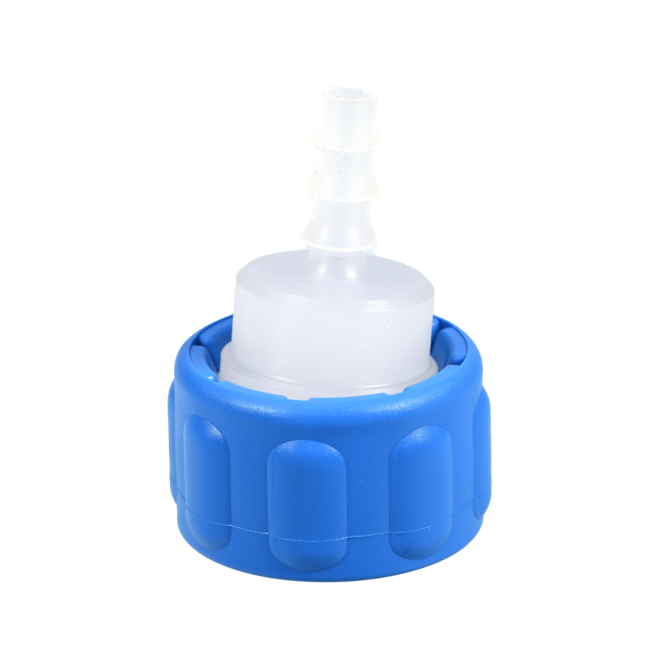

| 0525-1306 | 4 mm | 6 mm | 45 mm |

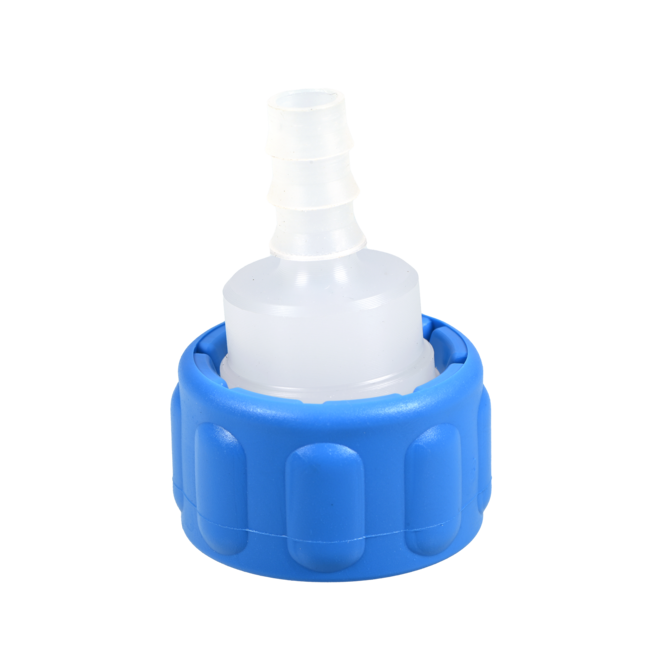

| 0525-1308 | 6 mm | 8 mm | 45 mm |
| 0525-1310 | 8 mm | 10 mm | 50 mm |

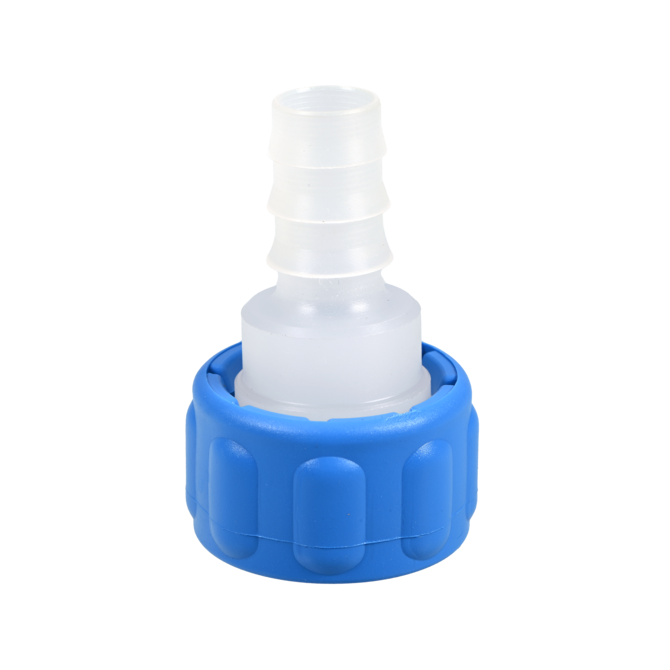

| 0525-1312 | 10 mm | 12 mm | 50 mm |

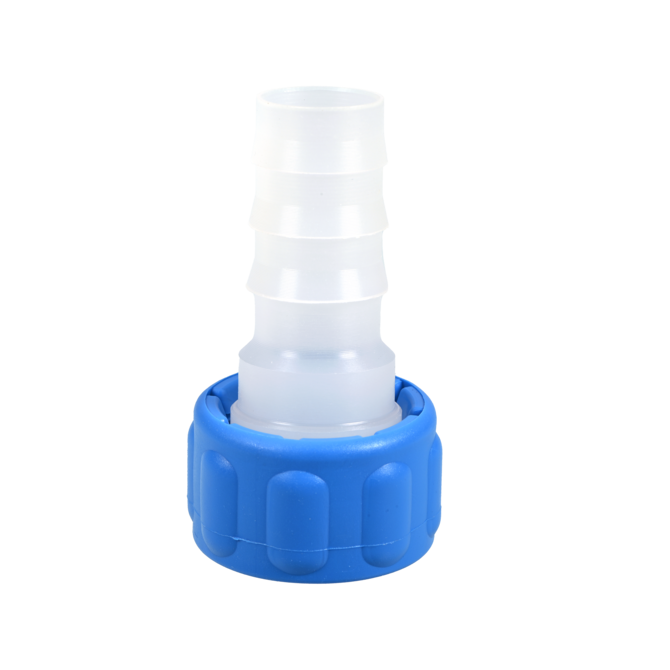

| 0525-1316 | 14 mm | 16 mm | 58 mm |
Note: The nominal diameter is the key selection specification for the dispensing hose. The spout outside diameter is listed separately because it is larger than the nominal hose diameter on each model.
| Specification | Details |
|---|---|
| Manufacturer | Burkle |
| Product Type | StopCock hose nozzle |
| Connection Thread | G 3/4" |
| Connection Type | Cap nut |
| Connector Shape | Straight (I) |
| General Material | PP (polypropylene) |
| Further Material | PE-LD (low-density polyethylene) |
| Colour | Blue |
| Outer Diameter of Body | 31 mm |
| Packaging Unit | 1 piece |
The easiest way to select the correct Burkle hose nozzle is to match the nominal diameter of the nozzle to the internal diameter of the dispensing hose.
| If Your Hose ID Is | Select |
|---|---|
| 2 mm | 0525-1304 |
| 4 mm | 0525-1306 |
| 6 mm | 0525-1308 |
| 8 mm | 0525-1310 |
| 10 mm | 0525-1312 |
| 14 mm | 0525-1316 |
Burkle StopCock hose nozzles are useful wherever liquid needs to be transferred through a hose rather than discharged directly from a container tap.

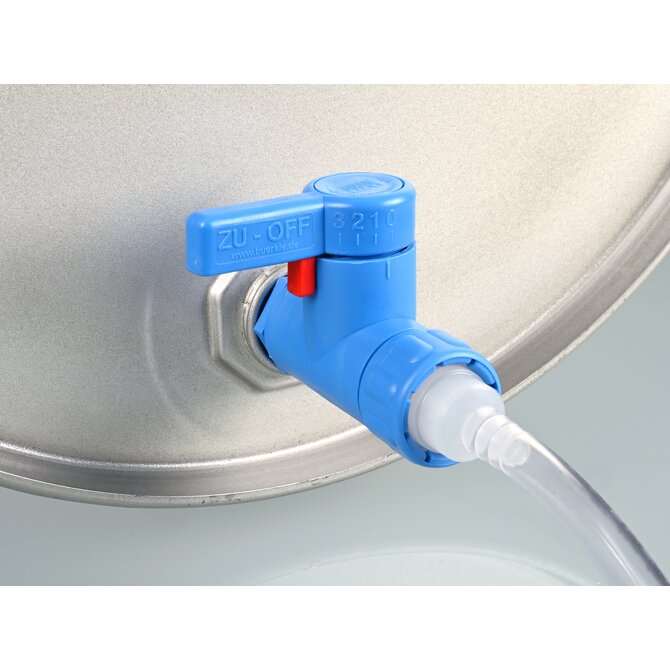

These hose nozzles are specifically designed as accessories for compatible Burkle StopCock drain taps. Installation is made using the cap nut on the StopCock's G 3/4" external thread.
The hose nozzle then provides a straight connection point for the dispensing hose, allowing liquid to be directed to the desired receiving container.
Compatibility note:
These hose nozzles are intended for compatible Burkle StopCock taps with the required G 3/4" external connection. Confirm the connection and hose dimensions before ordering. Chemical compatibility should also be verified for the liquid being transferred.
Burkle also offers a discharge angle for StopCock taps. The two accessories serve different purposes:
If your application requires a hose connection, select the hose nozzle based on the required nominal hose diameter.
Burkle lists polypropylene (PP) as the general material and low-density polyethylene (PE-LD) as a further material. The manufacturer describes the hose nozzles as chemically resistant and dimensionally stable.
However, chemical resistance varies according to the liquid, concentration, temperature and exposure conditions. Always consult the manufacturer's chemical-resistance information when selecting a nozzle for a specific chemical or process liquid.
They are accessory fittings that attach to compatible Burkle StopCock drain taps and provide a connection for dispensing hose. They allow liquids to be transferred away from the source container through flexible tubing.
The hose nozzles connect to the StopCock using a G 3/4" external thread and cap-nut connection.
Burkle offers six variants with nominal diameters of 2, 4, 6, 8, 10 and 14 mm.
Select the variant that matches the nominal internal diameter of the dispensing hose. For example, use 0525-1308 for a 6 mm nominal hose diameter.
No. These are separate StopCock accessories. They are designed to be installed onto compatible StopCock drain taps.
No. Although Burkle describes the materials as chemically resistant, compatibility must be confirmed for the specific liquid, concentration and operating conditions.
They are used to transfer liquids from drums, barrels and compatible containers through dispensing hose to bottles, jerrycans, laboratory containers or other receiving equipment.
The hose nozzles are straight fittings. Burkle also offers a separate angled discharge accessory for applications where the liquid outlet needs to be redirected.
The general material is polypropylene (PP), with low-density polyethylene (PE-LD) listed as a further material.
Cambridge Environmental Products supplies Burkle liquid-handling accessories and laboratory equipment to Canadian laboratories, research facilities, industrial QA/QC operations, food and beverage facilities and other professional users.
If you are unsure which hose nozzle size matches your existing Burkle StopCock and dispensing hose, contact us with the StopCock model and hose dimensions and we can help confirm the appropriate variant.
