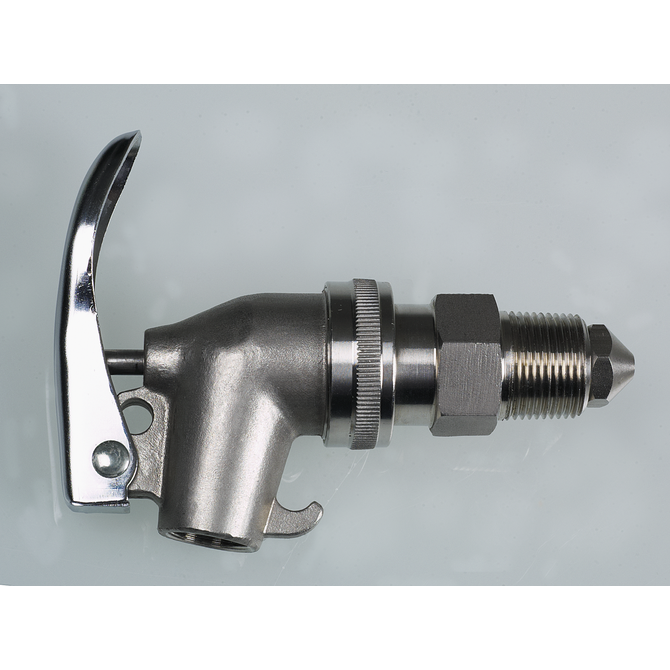

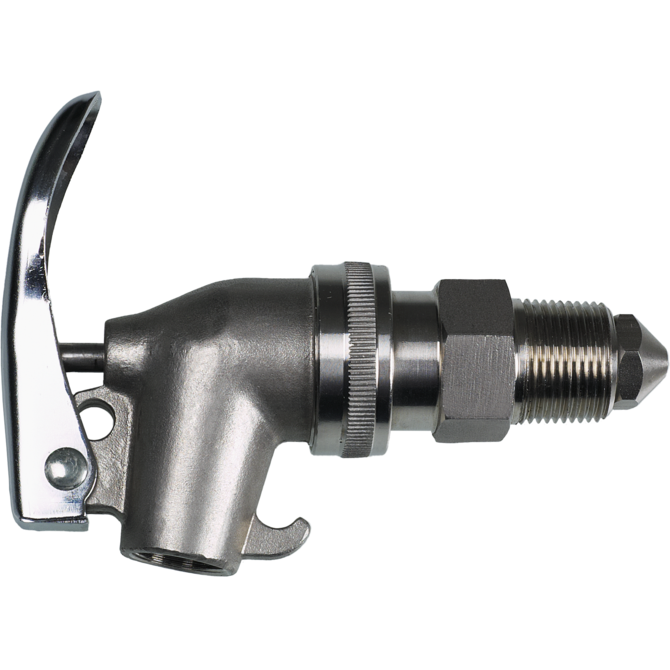

The Burkle Stainless Steel Spigot 0535-0020 is a robust drum and container tap made from AISI 304 stainless steel. It features a self-closing piston valve, a rotatable outlet that can be adjusted through 360°, and an R 3/4" external thread for connection to compatible drums and containers.
The spigot is designed for controlled liquid dispensing from drums and containers. Its adjustable outlet, suspension device, and eyelet for shutting off the spigot provide additional flexibility for filling and dispensing applications.
Burkle SKU: 0535-0020
Connection: R 3/4" external thread
Body material: AISI 304 stainless steel (1.4301)
Seal materials: PTFE and FKM/FPM
Valve type: Self-closing piston valve
Outlet: 360° rotatable
Outlet outside diameter: 25 mm
The Burkle 0535-0020 is designed for draining liquids from drums and containers. Its stainless steel construction provides a robust alternative to plastic or brass dispensing taps when the application calls for stainless steel equipment.

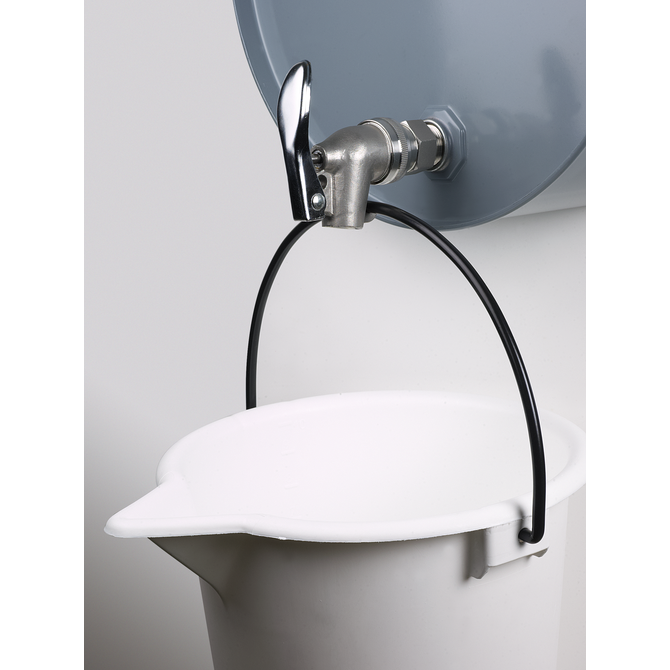

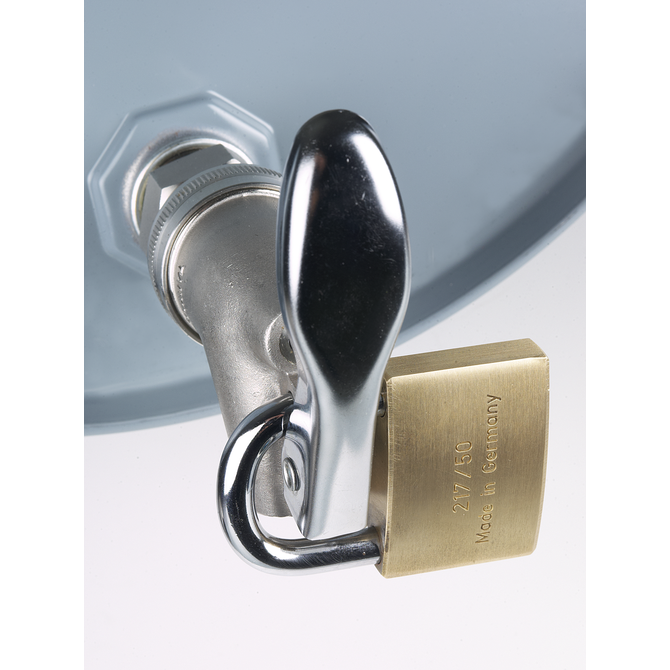

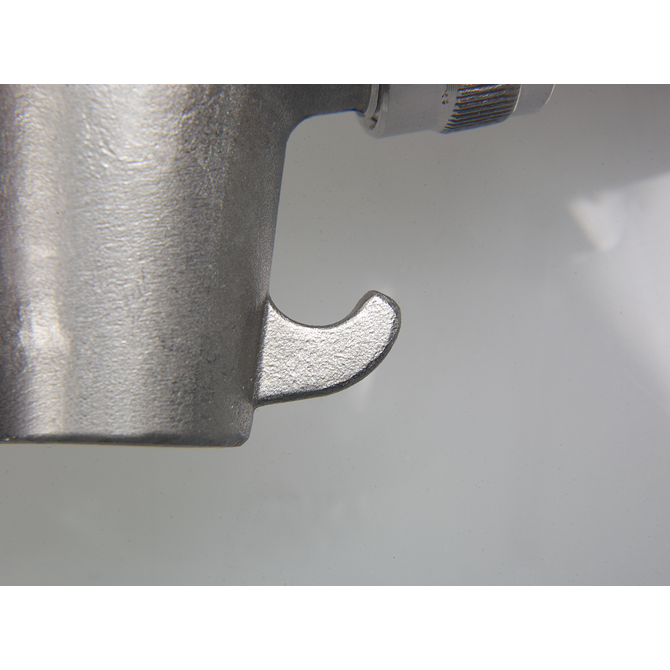

The outlet can be rotated through 360°, allowing the dispensing direction to be adjusted to suit the receiving container or workspace. The manufacturer also provides a practical suspension device and an eyelet for shutting off the spigot.
The 0535-0020 uses a self-closing piston valve with a low flow rate. The self-closing design automatically returns the spigot to the closed position when it is no longer being operated.
This makes the spigot suitable for controlled dispensing applications where the outlet should not remain open unintentionally.

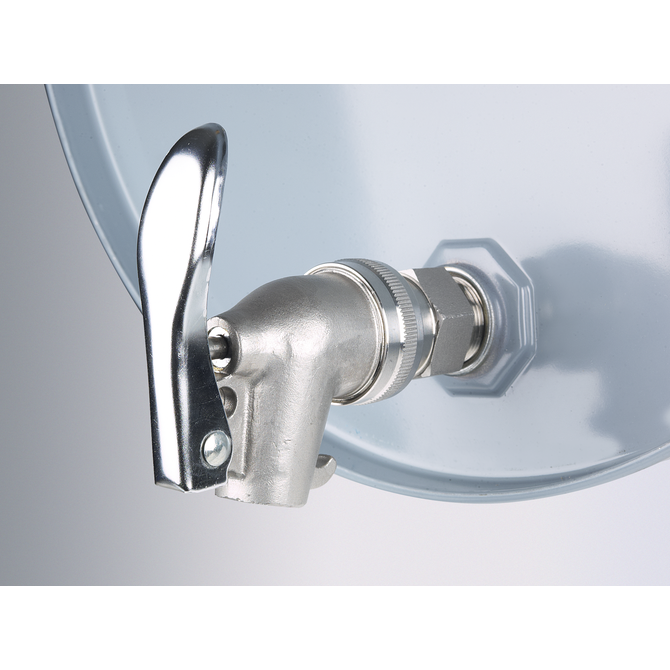

The stainless steel spigot features an outlet that can be turned 360° and positioned as required. This allows the dispensing direction to be adjusted without changing the orientation of the container connection.
The adjustable outlet can be useful when transferring liquid into containers of different sizes or when workspace clearance makes a fixed outlet position inconvenient.
| Specification | 0535-0020 |
|---|---|
| Product type | Stainless steel drum / container spigot |
| SKU | 0535-0020 |
| General material | AISI 304 stainless steel (1.4301) |
| Seal materials | PTFE and FKM/FPM |
| Connection type | Thread |
| Thread | R 3/4" external |
| Outlet outside diameter | 25 mm |
| Valve design | Piston valve |
| Flow rate | Low flow rate |
| Outlet adjustment | 360° rotatable |
| Special features | Self-closing, freely positionable, lockable |
| Colour | Silver |
| Length | 103 mm |
| Width | 42 mm |
| Height | 145 mm |
The 0535-0020 uses an R 3/4" external thread. The connection should be matched to the compatible threaded opening on the drum, barrel, container, or adapter.
Compatibility note: Verify the complete threaded connection before ordering. R 3/4" is a specific pipe-thread designation and should not be assumed to be interchangeable with every G 3/4" connection.
The main body of the spigot is manufactured from AISI 304 stainless steel (1.4301). The manufacturer specifies PTFE and FKM/FPM as further materials used in the product.
Material compatibility depends on the specific liquid, concentration, temperature, and operating conditions. For chemical applications, verify compatibility with the intended medium before use.
