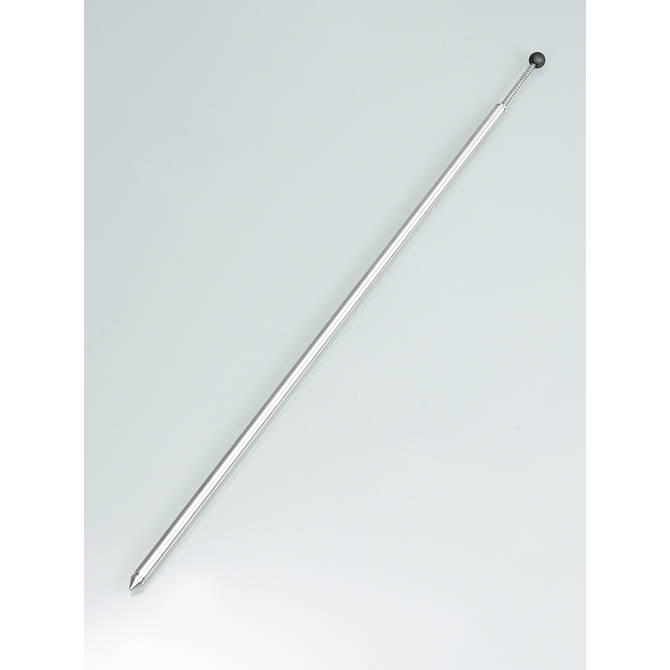

The Burkle MicroSampler is designed for targeted sampling of small quantities of powder from sacks, containers and other suitable bulk-material sources. Its sampling lance allows material to be collected from a selected point and depth, making it useful for quality control, laboratory testing and production sampling workflows.
This range includes three lance lengths, each with a 25 mm outer diameter and a sampling capacity range of 2–10 mL when used with the appropriate interchangeable sampling head. The lance is made primarily from stainless steel AISI 316L, with additional materials used in its construction.

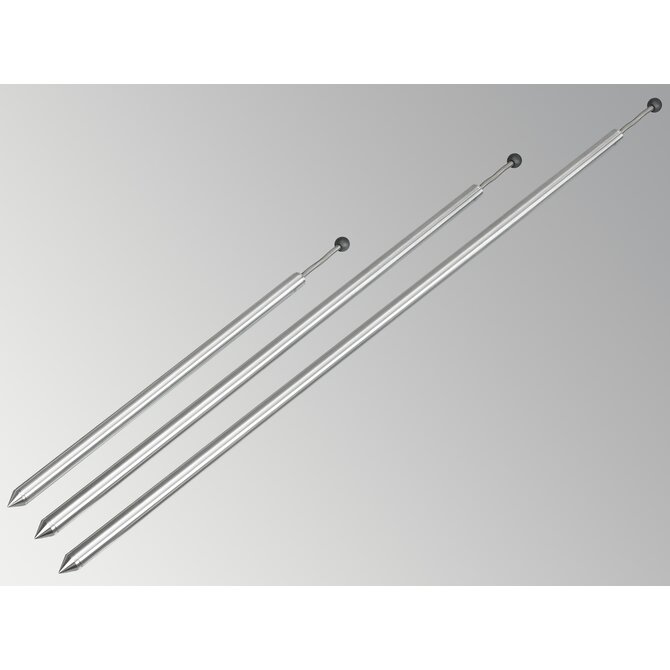

Select the lance length for your sampling depth
Note: The MicroSampler lance is supplied without a sampling head. The compatible head must be ordered separately.

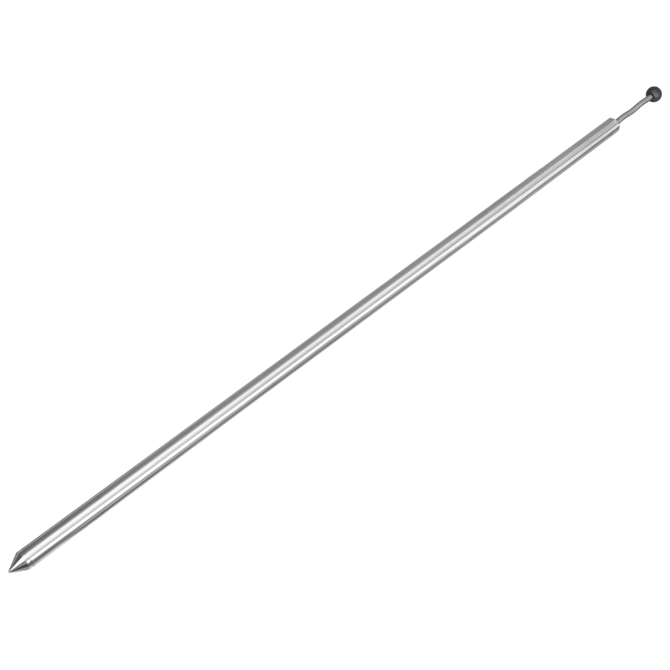

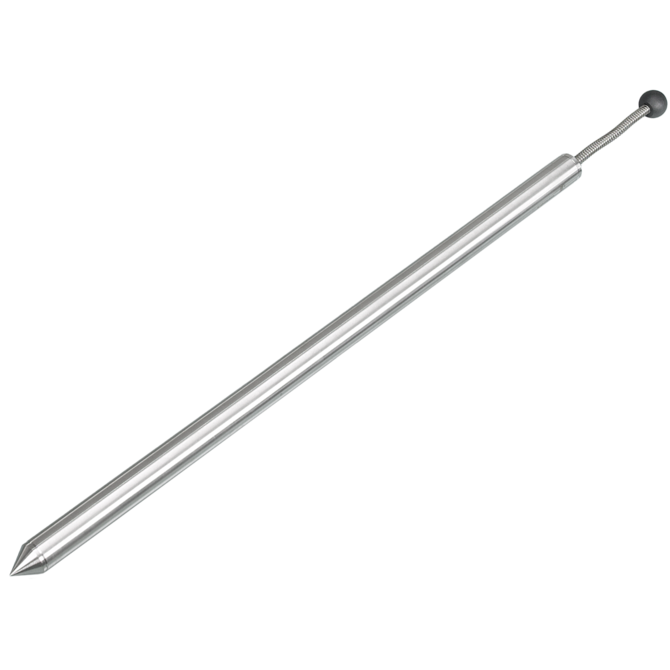

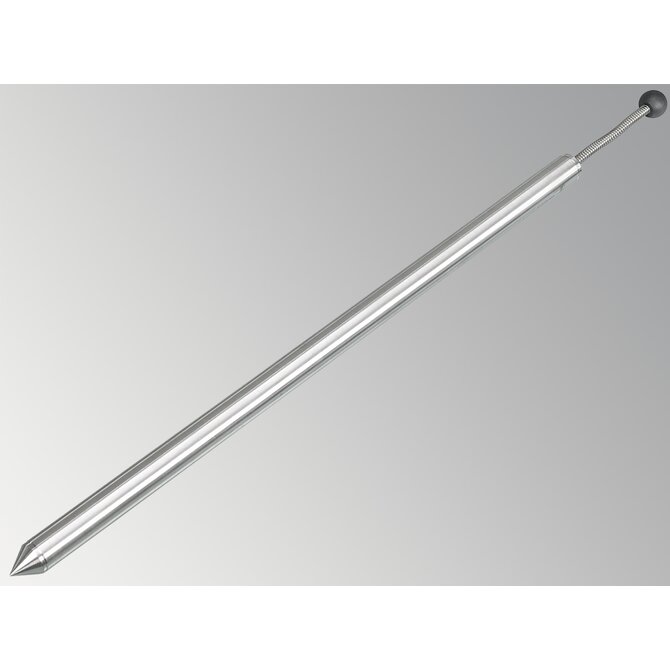

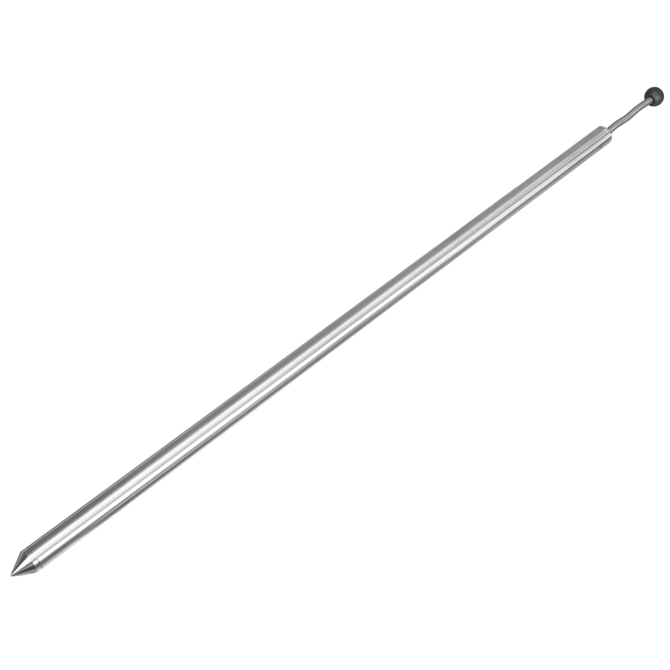

| Specification | 550 mm | 850 mm | 1,200 mm |
|---|---|---|---|
| Manufacturer item number | 5307-2055 | 5307-2085 | 5307-2120 |
| Tube outer diameter | 25 mm | 25 mm | 25 mm |
| Plunge depth | 550 mm | 850 mm | 1,200 mm |
| Total length | 698 mm | 998 mm | 1,348 mm |
| Sampling head included | No | No | No |

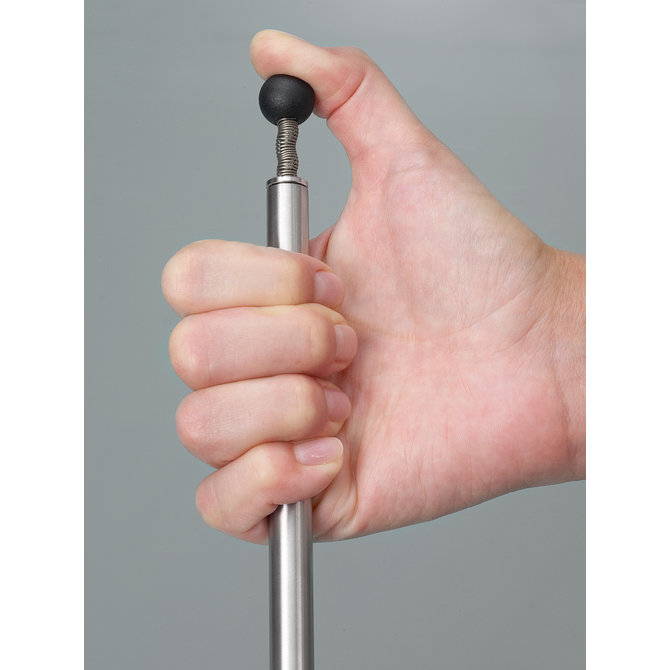

The MicroSampler collects a sample from a selected point within a powder or bulk material. The operator inserts the lance to the desired depth, opens the sampling head using the button, closes it to retain the sample, and withdraws the lance. The head can then be opened to release the collected material.
The MicroSampler is intended for small-volume, targeted sampling of suitable powders and fine-grained bulk materials. Applications may include:
The lance is supplied without a sampling head. Select a compatible head separately according to the required sample volume.
| Accessory | Capacity | Manufacturer item number |
|---|---|---|
| MicroSampler head for 25 mm tube | 2 mL | 5307-0202 |
| MicroSampler head for 25 mm tube | 5 mL | 5307-0205 |
| MicroSampler head for 25 mm tube | 10 mL | 5307-0210 |
Before ordering
The sampling head is a separate purchase. Choose a head that matches the 25 mm lance and the desired sample volume. The manufacturer lists 2 mL, 5 mL and 10 mL heads for this tube diameter.
The main material is stainless steel AISI 316L (material 1.4404). The manufacturer also lists polyamide (PA) and spring steel AISI 301 (material 1.4310) as additional materials used in the sampler.
The removable head supports cleaning between sampling tasks. Establish a suitable cleaning procedure for the sampled material and intended analysis to help prevent cross-contamination. Confirm material compatibility where samples have specific chemical or purity requirements.
The variants differ in plunge depth and total length. Choose 550 mm, 850 mm or 1,200 mm plunge depth according to the depth you need to reach in the material.
No. These three lance models are supplied without a head. A compatible 2 mL, 5 mL or 10 mL sampling head must be ordered separately.
The manufacturer specifies powdery or fine-grained, free-flowing sample materials. Suitability may depend on the material's flow properties and the sampling procedure.
All three variants have a tube outer diameter of 25 mm.
Cambridge Environmental Products supplies laboratory and industrial sampling equipment to Canadian customers. Contact our team if you need help selecting the appropriate lance length or compatible sampling head for your application.
