The Burkle MicroSampler is designed for collecting small, targeted samples of free-flowing powders and fine-grained materials from sacks and containers. Its interchangeable sampling heads allow collection volumes from 0.2 mL to 1.0 mL, making it suitable for applications where only a small quantity of material is required.

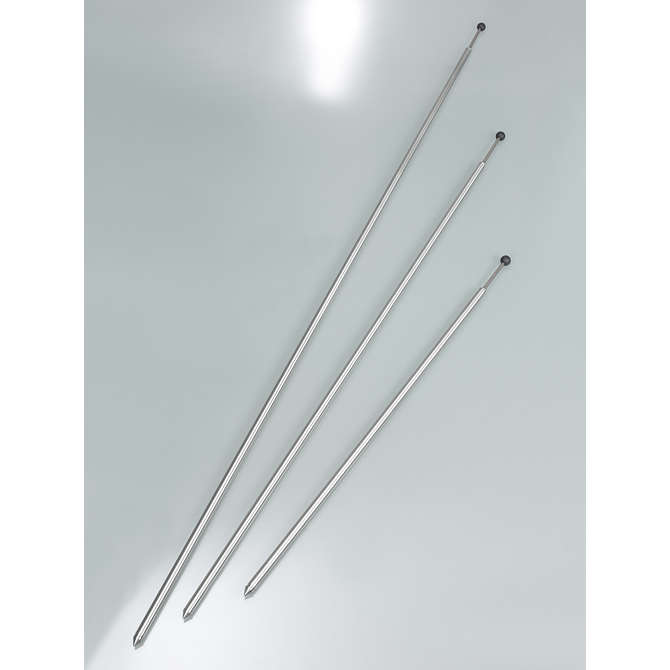

Choose from three lance lengths to suit your sampling depth: 550 mm, 850 mm, or 1,170 mm. The sampler features a 12 mm outer diameter and is constructed primarily from 316L stainless steel.
The MicroSampler lance does not include a sampling head. The required head must be ordered separately. Select a compatible 0.2 mL, 0.5 mL, or 1.0 mL head for the 12 mm MicroSampler model.
Select the required plunge depth from the available variants below.
| Specification | 550 mm Model | 850 mm Model | 1,170 mm Model |
|---|---|---|---|

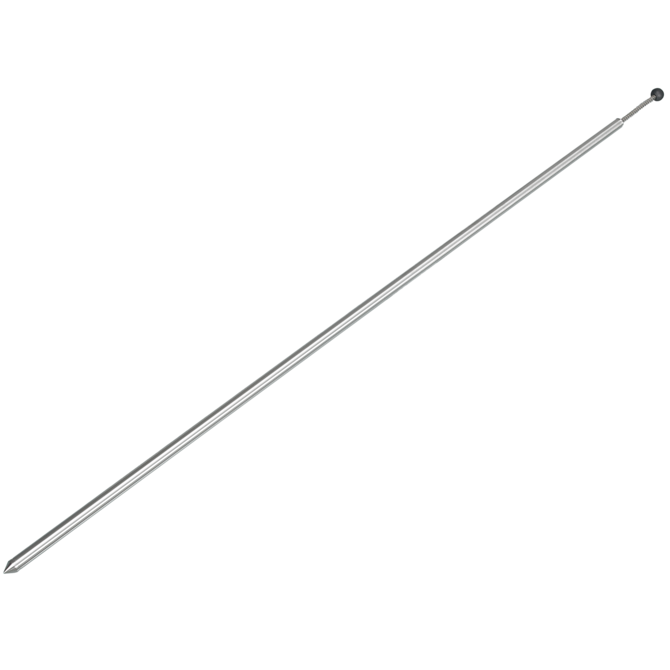

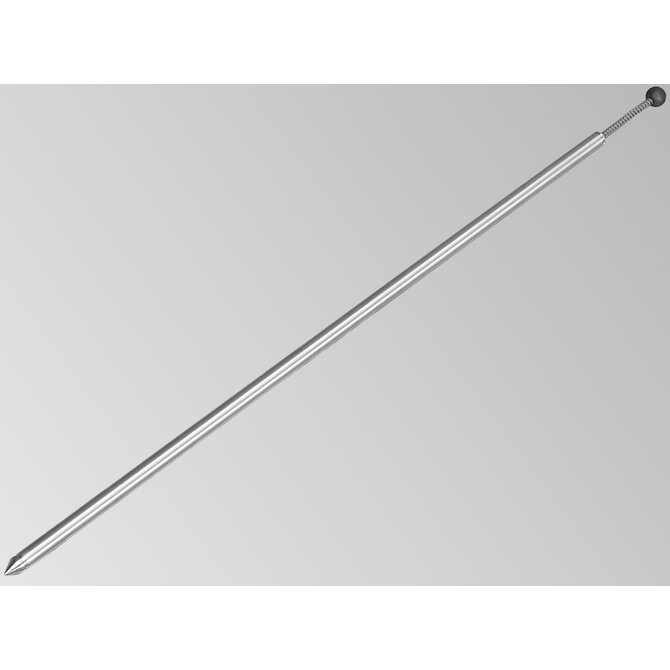

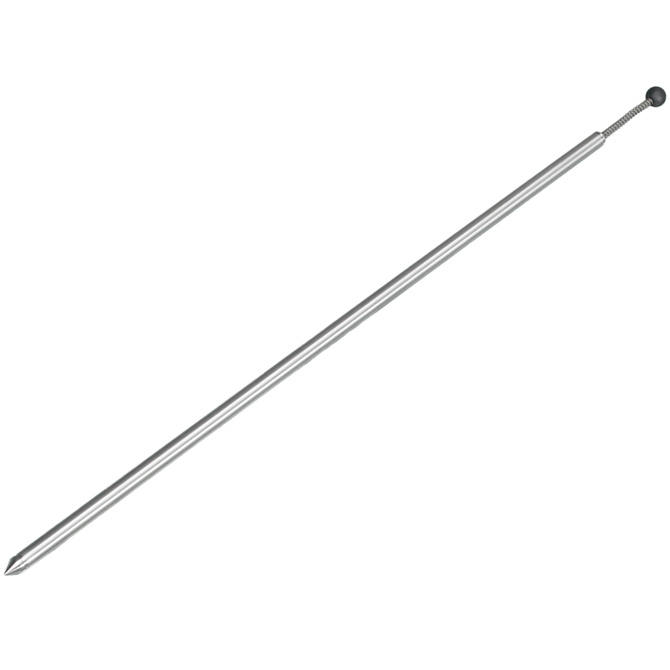

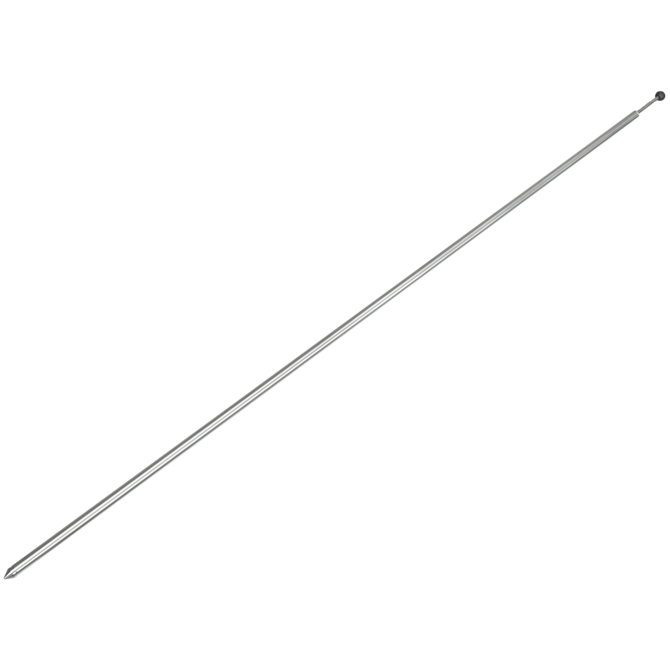

| Item number | 5307-1055 | 5307-1085 | 5307-1120 |
| Plunge depth | 550 mm | 850 mm | 1,170 mm |
| Total length | 652 mm | 952 mm | 1,272 mm |
| Outer diameter | 12 mm | 12 mm | 12 mm |
| Sampling volume range | 0.2–1.0 mL with compatible head | 0.2–1.0 mL with compatible head | 0.2–1.0 mL with compatible head |
Choose the sampling head that corresponds to the desired sample volume. Heads are sold separately from the MicroSampler lance.
| Sampling Volume | Accessory Item Number |
|---|---|
| 0.2 mL | 5307-0102 |
| 0.5 mL | 5307-0105 |
| 1.0 mL | 5307-0110 |
These accessories are for the 12 mm MicroSampler range with 0.2–1.0 mL sampling volumes. Confirm the head is compatible with your selected model before ordering. The larger 2.0–10 mL MicroSampler range is a separate model with a different lance diameter.
The MicroSampler is intended for collecting small quantities of free-flowing, powdery or fine-grained materials from sacks and containers. Its target-point sampling design allows material to be collected from a selected depth rather than only from the surface.
No. The sampling head must be purchased separately. Choose the compatible head based on the required sample volume.
The models differ in plunge depth and total length. Choose 550 mm, 850 mm, or 1,170 mm plunge depth based on the depth you need to reach in the material being sampled.
The manufacturer specifies the MicroSampler for powdery or fine-grained, free-flowing materials.
Yes. Compatible interchangeable heads are available for 0.2 mL, 0.5 mL, and 1.0 mL sample volumes. The required head is sold separately.
Contact Cambridge Environmental Products for assistance choosing the appropriate plunge depth and compatible sampling head for your application.
