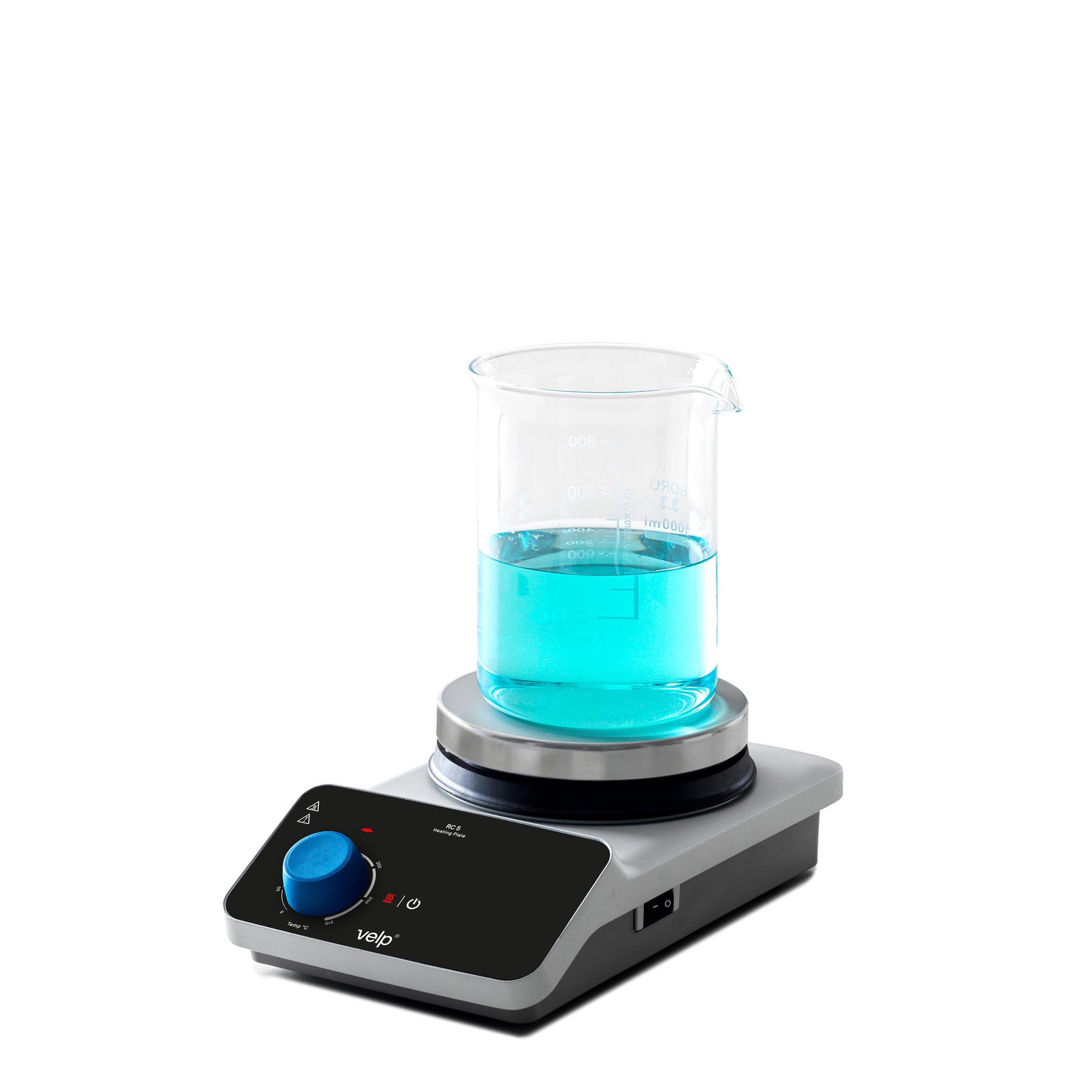

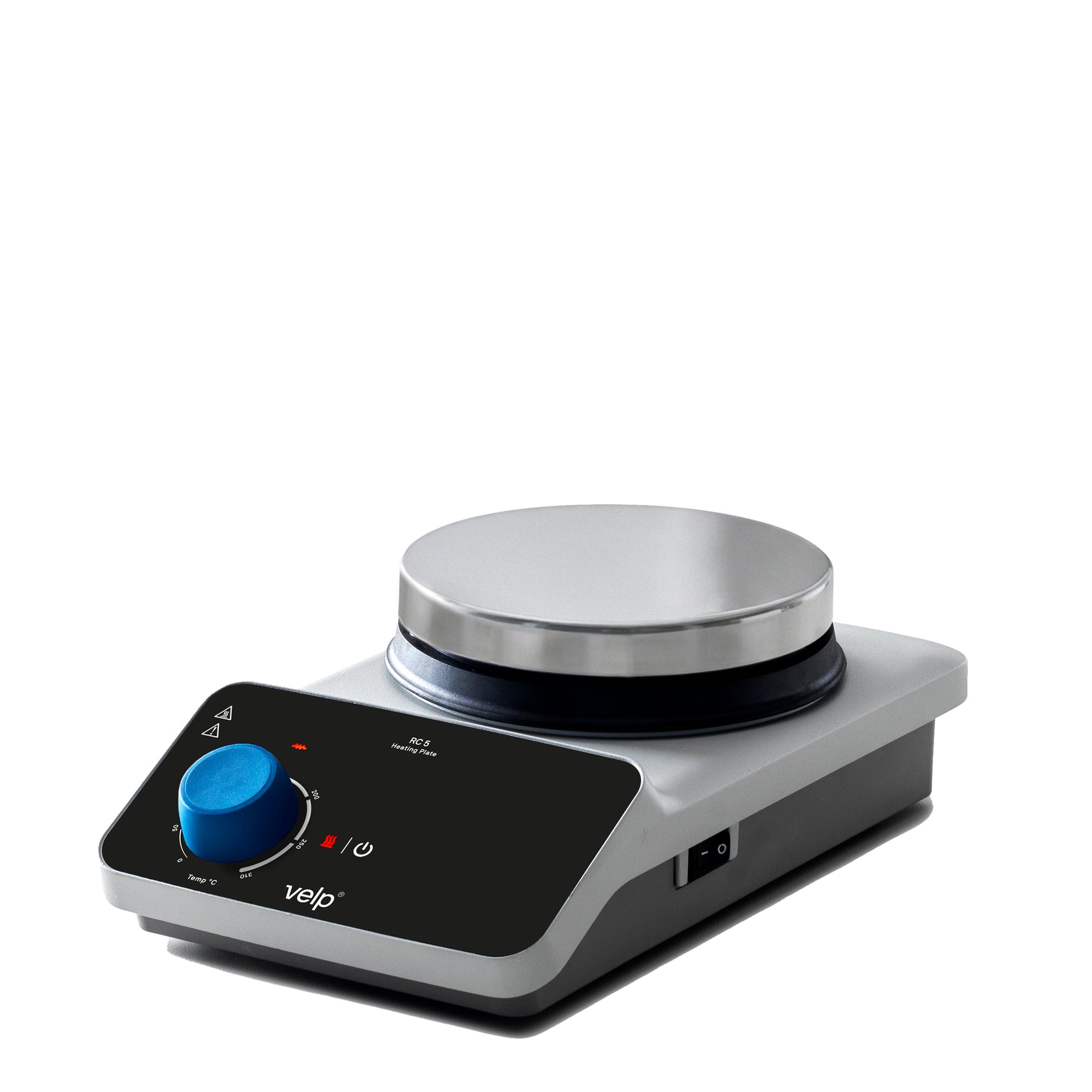

VELP RC 5 Hotplate

The VELP RC 5 is a reliable single‑position heating plate engineered for routine laboratory heating tasks. Featuring a 135 mm diameter aluminum alloy top plate, it delivers uniform temperature distribution and efficient heat transfer across the entire surface, ensuring consistent results for everyday heating applications such as boiling liquids, preparing solutions, or dissolving reagents. Temperature can be easily adjusted up to a maximum of 310 °C via a simple analog control, while safety systems such as illuminated hot‑top warning indicators and robust construction provide operator protection and durability. The compact, epoxy‑painted aluminum body with IP 42 certification ensures resistance to chemicals and long service life. Designed and manufactured in Italy, the RC 5 is a dependable workhorse for general laboratory heating.

Features

Uniform heating performance with 135 mm diameter aluminum alloy top plate for optimal heat transfer and temperature homogeneity
Wide temperature range from ambient up to 310 °C for versatile laboratory heating
Analog temperature control via intuitive knob for easy operation
Illuminated hot‑top warning indicator alerts operators when plate temperature exceeds 50 °C for enhanced safety
IP 42 protection rating for reliable performance in laboratory environments
Compact, lightweight design with inclined control panel for improved visibility
Epoxy‑painted aluminum body for excellent chemical resistance and durability
Accepts flasks and containers up to 15 L in volume for flexible use
Designed for long life and continuous use in standard lab applications

Specifications

Plate Diameter	135 mm
Plate Material	Aluminum alloy
Temperature Range	Room temp. – 310 °C
Control Type	Analog knob
Hot Top Warning	Illuminated indicator (above 50 °C)
Protection Class	IP 42
Housing Material	Epoxy‑painted aluminum
Power Input	630 W
Permissible Ambient Temperature	5 – 40 °C
Weight	1.4 kg
Dimensions (W × H × D)	160 × 85 × 270 mm
Volume Capacity	Up to 15 L
Input Voltage Options	230 V / 50‑60 Hz (F20700610) 115 V / 50‑60 Hz (F20710610)
Origin	Designed and manufactured in Italy

Documentation:

Brochure

Manual
