Digital Forced Air Oven - 3.0 Cu.Ft.

SKU: SMO3~ea

SKU: SMO3~ea

Some sizes or selections of this product may be backordered. General ETA is 2 weeks for delivery. If you require a product urgently, please feel free to Chat (bottom right), Email - sales@ceproducts.ca or Call 1-800-535-3751 to confirm stock / lead time. We appreciate your business!

Get a Quote

Description

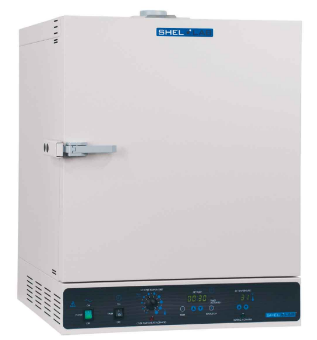

 3.0 Cu. Ft. Digital Forced Air Oven - 20 to 306°C Range

SMO3 forced air lab oven is equipped with a stainless-steel interior for long-life operation and easy cleaning. Triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool. Ideal for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.

Features a quick ramp-up time to 306°C for faster cycle times. Includes an advanced PID temperature control system for sensitive response. SMO3 forced air oven delivers precise uniformity, air distribution, and the peace of mind expected of the SHEL LAB brand.

Features:
  • Embedded Microprocessor Control with Countdown Timer
  • Horizontal Forced Airflow
  • 1.75in (45 mm) Access Port
  • UL/CSA Approved
  • CE Approval
  • DIN 12880 Compliant
  • 24 Month Limited Warranty

Specifications:

Capacity 3.0 cu.ft. (85.0 L)
Exterior Dimensions (WxDxH) 26.9 × 28.6 × 34
(684 mm × 727 mm × 840 mm)
Interior Dimensions (WxDxH) 16.5 × 19.5 × 16.2
(419 mm × 495 mm × 412 mm)
Shelf Dimensions (WxD) 16.1 × 18.8 (409 mm × 478 mm)
Unit Weight 170.5 lbs (77.3 kg)
Interior Metal 430 SST
Exterior Metal Painted Cold Roll Steel
Operating Temperature
Range
Amb +20C - 306C
Temperature Uniformity
- Mid Range
1.8°C
Temperature Stability
- Mid Range
0.3 °C
Controller Type  Digital
Display Resolution 0.1 °C
Power Voltage, Frequency and Current 110-120 VAC, 50/60 Hz, 14.0 Amps
Safety Certifications UL 61010-1EN 61010-1CSA 61010-1, CE

Additional Literature:
SMO3 Brochure
SMO3 120V - Manual
