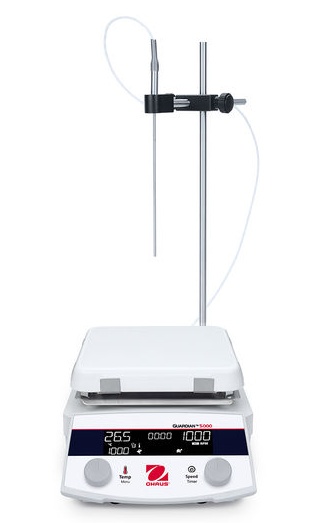

Ohaus Guardian 5000 Hot Plate Stirrers
Ohaus Guardian 5000 Hotplate Stirrers are scientifically engineered for safety and versatility, perfect for research, academic, and industrial settings. With powerful heating and mixing capabilities and premium software and hardware, users can rely on precise results with 3 temperature control modes and 5 models to choose from.
Unique Features:
- Ohaus signature SafetyHeatâ„¢ and SmartHeatâ„¢ features combined with the new RunÂ
Dry Protection system plus the Time Run mode and the optional Splash ShieldÂ
provide complete safety. - The evolved SmartRateâ„¢ system supports heating & stirring from fast and intensive to soft and precise, with a range of accessories to empower a variety of applications.
- An intuitive user interface featuring a large, bright LCD screen with whiteÂ
characters & knob button(s), allows for user friendly operation. RS232 port included for remote control or data logging.Â

Specifications:

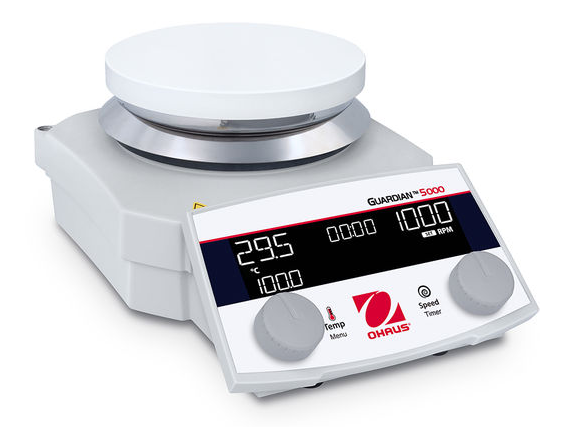

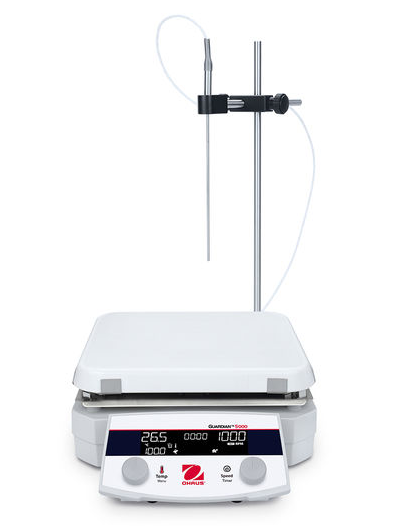

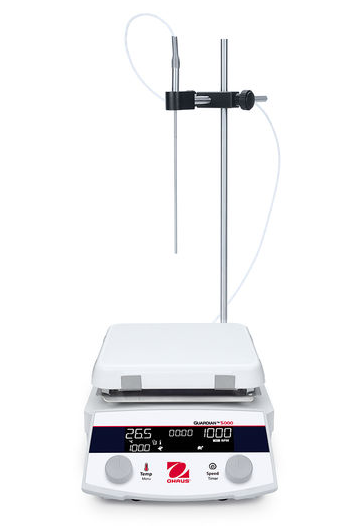

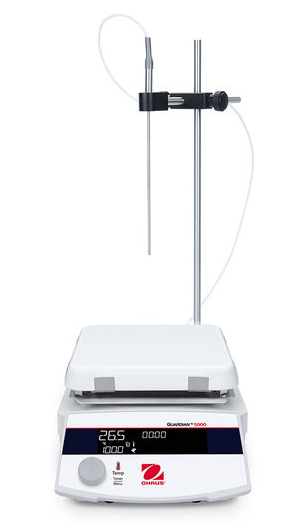

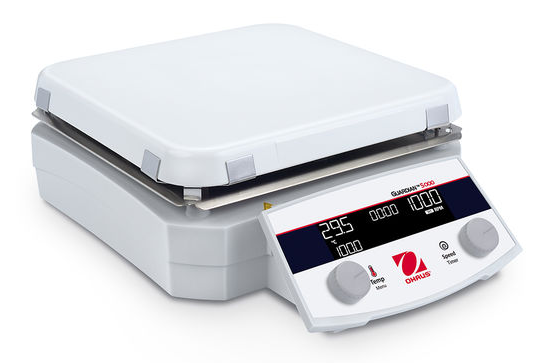

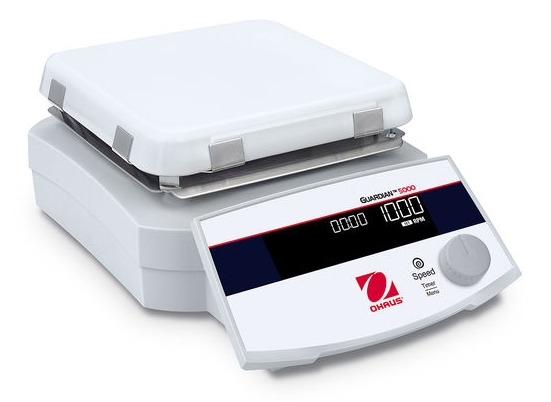

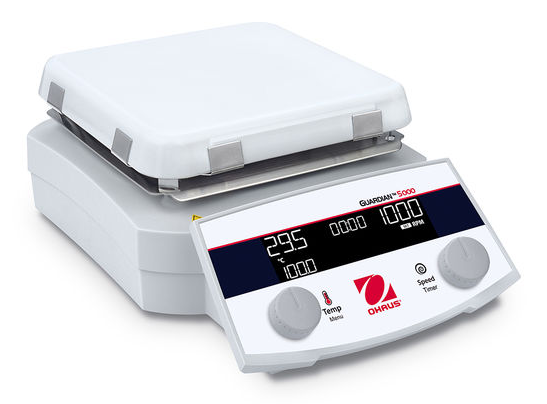

| Â Model | e-G52HSRDA | e-G52HS10C | e-G52HS07C | e-G52HP07C | e-G52ST07C |
| Kit Model*** | e-G52HSRDA -K1 | e-G52HS10C -K1 | e-G52HS07C -K1 | e-G52HP07C -K1 | - |
| Function | Heating and Stirring | Heating and Stirring | Heating and Stirring | Heating | Stirring |
| Top Plate Size | Ø 5.3 in / 13.5 cm | 10 x 10 in / 26 x 26 cm | 7 x 7 in / 18 x 18 cm | 7 x 7 in / 18 x 18 cm | 7 x 7 in / 18 x 18 cm |
| Top Plate Material | Ceramic Coated Aluminum |
Ceramic | Ceramic | Ceramic | Ceramic |
| Display | 4.5 x 1.2 in / 115 x 30 mm White Character LCD | 4.5 x 1.2 in / 115 x 30 mm White Character LCD | 4.5 x 1.2 in / 115 x 30 mm White Character LCD | 4.5 x 1.2 in / 115 x 30 mm White Character LCD | 4.5 x 1.2 in / 115 x 30 mm White Character LCD |
| Temperature Range | Ambient + 5 °C – 360 °C | Ambient + 5 °C – 500°C | Ambient + 5 °C – 550 °C | Ambient + 5 °C – 550 °C | - |
| Heating Power | 600 W at 120 V 656 W at 230 V |
1650 W at 120 V 2066 W at 230 V |
1582 W at 120 V 1050 W at 230 V |
1582 W at 120 V 1050 W at 230 V |
- |
| Speed Range | 50 - 1800 rpm | 50 - 1800 rpm | 50 - 1800 rpm | - | 50 - 1800 rpm |
| Stirring Capacity (H2O) | 20 L | 22 L | 20 L | - | 20 L |
| Data Logging & Remote Control | built-in RS232; optional RS232-USB interface kit; optional RS232-Ethernet interface kit | built-in RS232; optional RS232-USB interface kit; optional RS232-Ethernet interface kit | built-in RS232; optional RS232-USB interface kit; optional RS232-Ethernet interface kit | built-in RS232; optional RS232-USB interface kit; optional RS232-Ethernet interface kit | built-in RS232; optional RS232-USB interface kit; optional RS232-Ethernet interface kit |
| Dimensions (L x W x H) |
259 x 175 x 108 mm 10.21 x 6.87 x 4.26 inch |
402 x 287 x 118 mm 15.84 x 11.28 x 4.65 inch |
329 x 221 x 116 mm 12.94 x 8.69 x 4.56 inch |
329 x 221 x 116 mm 12.94 x 8.69 x 4.56 inch |
329 x 221 x 116 mm 12.94 x 8.69 x 4.56 inch |
| Basic Model Net Weight | 5.7 lb / 2.6 kg | 14.8 lb / 6.7 kg | 10.1 lb / 4.6 kg | 8.6 lb / 3.9 kg | 9.9 lb / 4.5 kg |
| Electrical (50/60 Hz) | 100 - 120V, 8 A 220 - 240V, 4 A |
100 - 120V, 15 A 220 - 240V, 10 A |
100 - 120V, 15 A 220 - 240V, 7 A |
100 - 120V, 15 A 220 - 240V, 7 A |
100 - 120 V, 1 A 220 - 240 V, 1 A |
Kit Model*** has the Temperature Probe 30500590 and the Probe Holder Kit 30973298 included in package.
Additional Literature:
Guardian 5000 - Datasheet
Guardian 5000 - Brochure
Guardian 5000 - Instruction Manual
7 Things to consider before buying a Guardian Hot Plate StirrerÂ
$1,324.57 CAD
