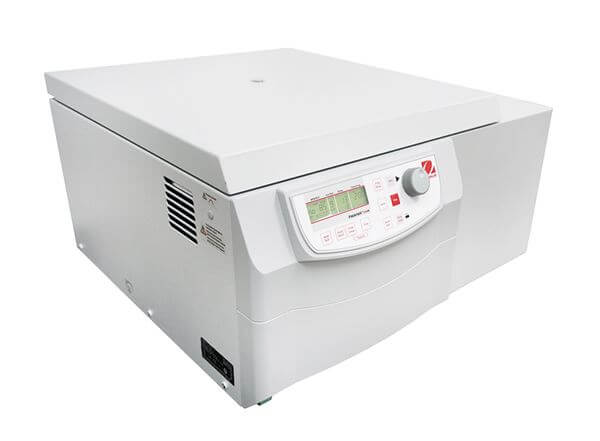

Ohaus Frontier FC5916R - Advanced Refrigerated Multi Pro Centrifuge

SKU: FC5916R~ea
Ohaus Frontier FC5916R - Advanced Refrigerated Multi Pro Centrifuge

Ohaus Frontier FC5916R - Advanced Refrigerated Multi Pro Centrifuge

SKU: FC5916R~ea
Title
Regular price $13,340.61 CAD
/
  • Secure payments
Shipping calculated at checkout.
Ohaus Frontier FC5916R - Advanced Refridgerated Benchtop Multi-Pro Centrifuge - 120v

Frontier FC5916R Multi-Pro Centrifuge is designed for universal use in multiple applications in research, industrial, and clinical laboratories and is compatible with up to 14 optional rotors and 75 accessories for customized use. Ohaus multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit your workflow needs using a wide variety of rotors and accessories.

Equipped with protective features, including automatic overspeed protection, imbalance detection, motorized lid-locking system, and self-diagnostic system to ensure reliable use and operator safety. Ohaus FC5916R is designed to make lab processes more efficient and easier, and includes many user-friendly features & software that allow for intuitive operation. Simple one-hand operation enabled by the selection button/rotary knob combination — even when wearing gloves. Large backlit LCD display shows centrifugation settings and real-time parameters on one interface. Sealed and bio-containment rotors to safeguard operators from harmful aerosols.

Features:

Intuitively Designed for Simple Operation -  Automatic rotor identification makes switching between applications extremely easy. Program storage up to 99 runs including parameter settings and rotor types.

Solid Engineering Ensures Reliability - Manufactured with high-quality components for reliable use and German engineered for high performance.

• Maintenance-free induction drive
• Thread-free rotor locking mechanism
• Optimized airflow system to keep samples cool
• Chemical and corrosion-resistant stainless steel housing ensures durability in lab environments
• Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
• Capacities from microliter to 4 × 750 ml
• Improved sample processing through-put with additional rotor for blood collection tubes and standard conical tubes
• High-speed centrifugation (>10000 rpm) from 0.2 ml up to 85 ml tubes
• Temperature variable range of -20 °C to 40 °C (FC5916R)



Specifications

Speed Range 200 rpm – 16,000 rpm
Maximum Relative Centrifuge Force (x g) 26,331 g
Maximum Capacity (Rotor) 4 x 750 ml
Refrigeration Range -4 °F – 104 °F (-20 °C – 40 °C)
Program memories 99
Rotor In Package Not applicable
Acceleration Gear 10
Deceleration Gear 10
Dimensions 15.4 in x 26.4 in x 28.7 in (390 mm x 670 mm x 730 mm) (HxLxW)
Display 2-line, backlit LCD
Lid lock Motor driven
Net Weight 260 lb (118 kg)
Noise Level ≤63±2 dB(A)
Power AC Adapter (Included)
Power Consumption 1,750 W
Pre-cool time From room temperature to 4℃ < 10min
Rotor Compatibility
  • Swing out 4x750ml ID Sealable
  • Rotor Angle 4x500ml ID
  • Angle 6 x 250 ml FB ID
  • Swing out 4 x 100 ml ID
  • Swing out 4 x 100 ml ID Sealable
  • Swing out 2 x 3MTP ID
  • Angle 6 x 85 ml RB ID Hi
  • Angle 6 x 85 ml RB ID
  • Angle 4 x 85ml RB ID Hi
  • Angle 10 x 50 ml FA ID
  • Angle 6 x 50 ml RB ID Hi
  • Angle 6 x 50 ml RB/FA ID
  • Angle 30 x 15 ml RB/FA ID
  • Angle 20 x 10 ml RB ID Hi
  • Angle 12 x 15 ml RB/FA ID
  • Angle 44 x 1.5 / 2.0 ml ID
  • Angle 30 x 1.5 / 2.0 ml ID Sealable
  • Angle 24 x 1.5 / 2.0 ml ID Sealable
  • Angle 24 x 1.5 / 2.0 ml ID
  • Angle 12 x 1.5 / 2.0 ml ID
  • Angle 64 x 0.5 ml ID
  • Angle 4 x 8-w PCR Strip ID
Rotor Recognition Method Auto
Running Time Quickspin;  10 sec to 99 h 59 min 59 sec;  Continous
Safety Certification CE;  FCC
Working Environment 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
Warranty 24 Months





Additional Literature:

Ohaus FC5916R Datasheet
Ohaus FC5916R Manual
Ohaus FC916R Rotor Guide
Ohaus FC5916R Quick Start Guide
