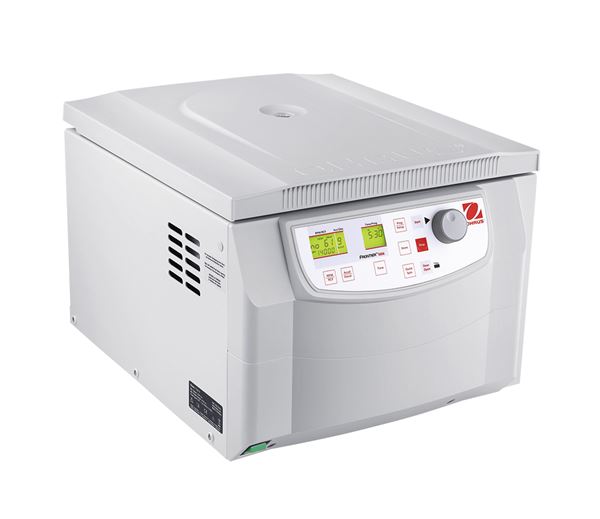

Ohaus Frontier FC5816 Intermediate Benchtop Multi Pro Centrifuge - 120v

Frontier FC5816 Multi-Pro Centrifuge is designed for universal use in multiple applications in research, industrial, and clinical laboratories and is compatible with up to 13 optional rotors and 71 accessories for customized use. Ohaus multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit your workflow needs using a wide variety of rotors and accessories.

Equipped with protective features, including automatic overspeed protection, imbalance detection, motorized lid-locking system, and self-diagnostic system to ensure reliable use and operator safety. Ohaus FC5816 is designed to make lab processes more efficient and easier, and includes many user-friendly features & software that allow for intuitive operation. Simple one-hand operation enabled by the selection button/rotary knob combination — even when wearing gloves. Large backlit LCD display shows centrifugation settings and real-time parameters on one interface. Sealed and bio-containment rotors to safeguard operators from harmful aerosols.

Features:

Intuitively Designed for Simple Operation -  Automatic rotor identification makes switching between applications extremely easy. Program storage up to 99 runs including parameter settings and rotor types.

Solid Engineering Ensures Reliability - Manufactured with high-quality components for reliable use and German engineered for high performance.

• Maintenance-free induction drive, thread-free rotor locking mechanism
• Optimized airflow system to keep samples cool
• Chemical and corrosion-resistant stainless steel housing ensures durability in lab environments
• Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
• Capacities from microliter (0.2 ml per tube) to 6 × 250 ml
• Improved sample processing through-put with additional rotor for blood collection tubes and standard conical tubes
• High-speed centrifugation (>10000 rpm) from 0.2 ml up to 85 ml tubes


Specifications:

Speed Range 200 rpm – 15,000 rpm
Maximum Relative Centrifuge Force (x g) 21,379 g
Maximum Capacity (Rotor) 6 x 250 ml
Program memories 99
Rotor In Package Not applicable
Acceleration Gear 10
Deceleration Gear 10
Dimensions 13.94 in x 21.18 in x 17.56 in (354 mm x 538 mm x 446 mm) (HxLxW)
Display LCD with backlight
Lid lock Motor driven
Net Weight 115 lb (52 kg)
Noise Level ≤61±2 dB(A)
Power AC Power (Included)
Power Consumption 520 W
Pre-cool time Not applicable
Rotor Compatibility Swing out 4 x 250 ml ID;  Swing out 2 x 3MTP ID;  Swing out 16 x 50 ml ID;  Angle 6 x 250 ml FB ID;  Angle 6 x 85 ml RB ID;  Angle 4 x 85ml RB ID Hi;  Angle 10 x 50 ml FA ID;  Angle 6 x 50 ml RB ID Hi;  Angle 30 x 15 ml RB/FA ID;  Angle 20 x 10 ml RB ID Hi;  Angle 44 x 1.5 / 2.0 ml ID;  Angle 24 x 1.5 / 2.0 ml ID Sealable;  Angle 24 x 1.5 / 2.0 ml ID
Rotor Recognition Method Auto
Running Time Quickspin;  10 sec to 99 h 59 min 59 sec;  Continous
Safety Certification CE;  FCC
Working Environment 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
Warranty 24 Months





Additional Literature:

Ohaus FC5816 Datasheet
Ohaus FC5816 Manual
Ohaus FC5816 Rotor Guide
Ohaus FC5816 Quick Start Guide
