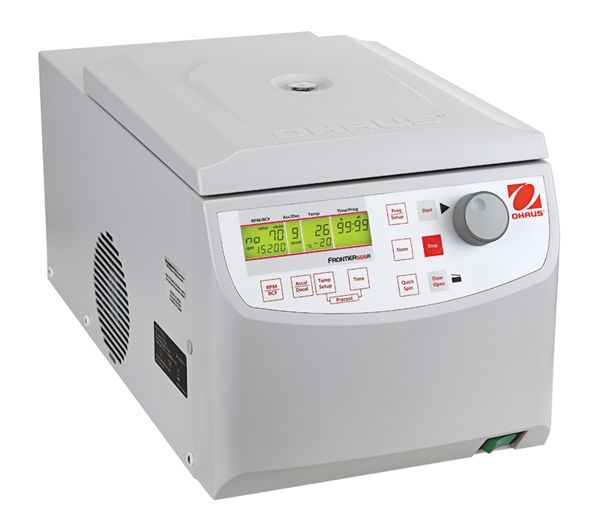

Ohaus Frontier FC5515R - Refrigerated Micro Centrifuge

SKU: FC5515R~ea
Ohaus Frontier FC5515R  - Refrigerated Micro Centrifuge

Ohaus Frontier FC5515R - Refrigerated Micro Centrifuge

SKU: FC5515R~ea
Regular price $7,653.00 CAD
  • Secure payments
Shipping calculated at checkout.

Ohaus Frontier FC5515R Benchtop Micro Centrifuge - 120v

Ohaus Frontier FC5515R  benchtop centrifuges provides high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities.  10 acceleration/deceleration settings, multiple safety features, and an unmatched capacity, FC5515R provides stable liquid separation for life science applications requiring high-speed operation. Ideal for DNA/RNA preparation, ultrafiltration, and more.

Biocontainment rotors enable research involving hazardous samples. Engineered with the convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.


Easy-to-Use Control Panel that Supports Simple Operation—The intuitive control panel with rotary knob puts the centrifuge’s simple operations at your fingertips, including the ability to set and recall speed and g-force, and temperature control.

Sophisticated Technology that Drives High-Performance—Powerful brushless induction motor, 10 acceleration and deceleration settings, and memory for up to 99 commonly-used parameters are a few features that propel high-performance.

Several Safety Features that Protect Against Injury - Features a motorized lid locking system and a rotor imbalance sensor that stops the centrifuge if the rotors become imbalanced or sudden shock occurs, protecting the operator from injury by the high-speed spinning rotors.

Seven Rotor Sizes that Provide Flexibility for Varied Centrifugation Needs—Compatible with seven different rotors, more than any centrifuge in its class, FC5515R is highly-versatile and can be used for various applications of different volumes.


Speed Range 200 rpm – 15,200 rpm

Maximum Capacity (Rotor)

44 x 1.5 / 2.0ml; 12 x 5 ml

Maximum Relative Centrifuge Force (x g)

21,953 g

Running Time

10sec to 99hr 99min 59sec or continuous

Refrigeration Range

-20° to 40°C,1°C/set

Program memories


Refrigeration Range


Rotor In Package


Acceleration Gear


Deceleration Gear


Lid lock


Safety Certification


Pre-cool time

From room temperature to 4℃ < 10min

Working Environment

2°C – 35°C, 80%RH, non-condensing

Rotor Compatibility

Angle 24 x 1.5 ml / 2.0 ml;
Angle 24 x 1.5 ml / 2.0 ml Sealable;
Angle 12 x 5 ml Sealable;
Angle 44 x 1.5 ml / 2.0 ml;
Angle 4 x 8 place PCR Strips;
Angle 30 x 1.5 ml / 2.0 ml Sealable

Noise Level

≤57±2 dB(A)

Dimensions  (W × D × H)

11.3 × 22.1 × 11.5 in/287 × 561 × 292 mm

Net Weight

77 lb/35 kg


AC Power (Included) 120 V/50 - 60 Hz

Fluctation ± 10%
Current Consumption 5.1A
Power Consumption  560 W


LCD with backlight

Running Time

10 sec to 99 h 59 min 59 sec; Continous


24 Month

Additional Literature:

Ohaus FC5515R Datasheet
Ohaus FC5515R Manual
Ohaus FC5515R Rotor Guide
