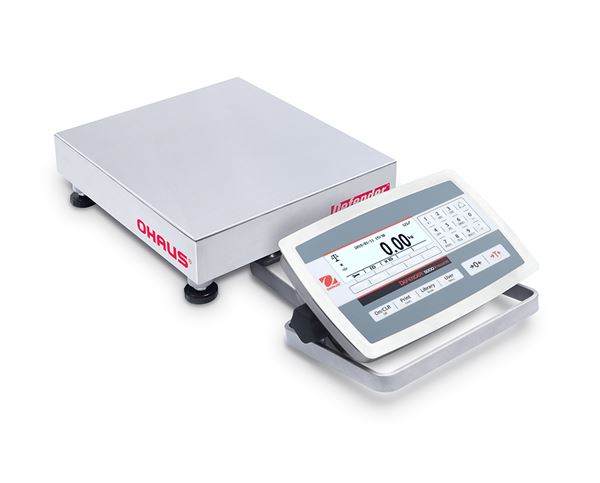

Ohaus Defender 5000 - 12.5Kg x 0.5g Washdown & Legal For Trade Bench Scale - 10" x 10"

Introducing the next generation of the Defender 5000: a multifunctional washdown bench scale ideal for a multitude of applications such as production and packaging, inventory and shipping. Durable all stainless steel construction is married with advanced weighing features such as maximum configurability print output, GMP/GLP data output with time/date for result traceability, library/user management and multiple connectivity options. Large backlit indicator guides the user with on-screen prompts for simple operation.

Durably constructed with an IP67 loadcell and IP68/NEMA4X indicator, ruggedly equipped with 150% overload capacity. Features a 50,000 item library and 1,000 user profiles that can easily be uploaded/downloaded with the included Micro SD Card. Alibi memory available. Multiple connectivity options include built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Application Modes:

Weighing
Parts Counting with APW optimization
Checkweighing or Checkcounting
Percent Weighing
Dynamic Weighing or Display Hold

Indicator Position	Model #
Column Mount	D52XW12WQS6
Low Profile	D52XW12WQS5

Specifications:

Maximum Capacity	25 lb (12.5 kg)
Readability	0.001 lb (0.5 g)
Readability (Certified)	0.005 lb (5 g)
Platform Size (LxW)	10 in x 10 in (254 mm x 254 mm)
Legal for Trade	Measurement Canada Approved; NTEP Certified
Power	AC Power (Included); Rechargeable Battery (Not Included)
Battery Life	20 Hours with Rechargeable Battery
Communication	RS232 (Included); 2nd RS232/RS485/USB (Available as an Accessory); USB Host (Available as an Accessory); WiFi/Bluetooth (Available as an Accessory); Ethernet (Available as an Accessory)
Dimensions (HxLxW)	With Column: 23.6 in x 15.1 in x 10 in (600 mm x 383 mm x 254 mm) (HxLxW) Low Profile: 4.8 in x 20.8 in x 10 in (122 mm x 529 mm x 254 mm)
Display	Dot matrix LCD with white LED backlight
Net Weight	19.8 lb (9 kg)
Outputs	3 In/4 Out digital I/O; 4 - 20mA
Platform Construction	Stainless Steel
Protection Rating	IP67
Second Scale Input	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Custom; Gram; Kilogram; Metric Tonnes; Ounce; Pound; Pound:Ounce; Tonne
Working Environment	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Warranty	1 Year

Additional Literature:

Ohaus Defender 5000 - D52 Front Mount Data Sheet
Ohaus Defender 5000 - D52 Column Mount Data Sheet
Ohaus Defender 5000 - D52 Scale Base Manual
Ohaus Defender 5000 - D52 Indicator Manual
