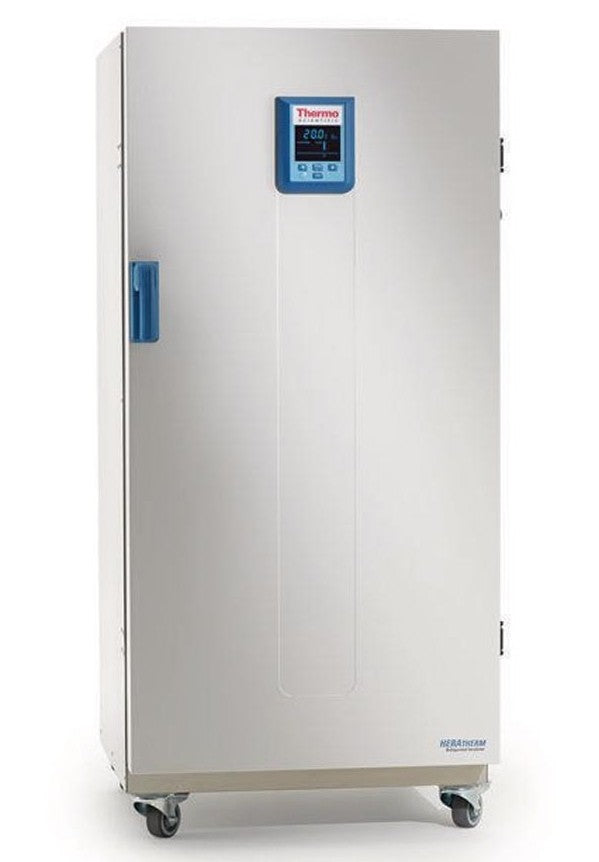

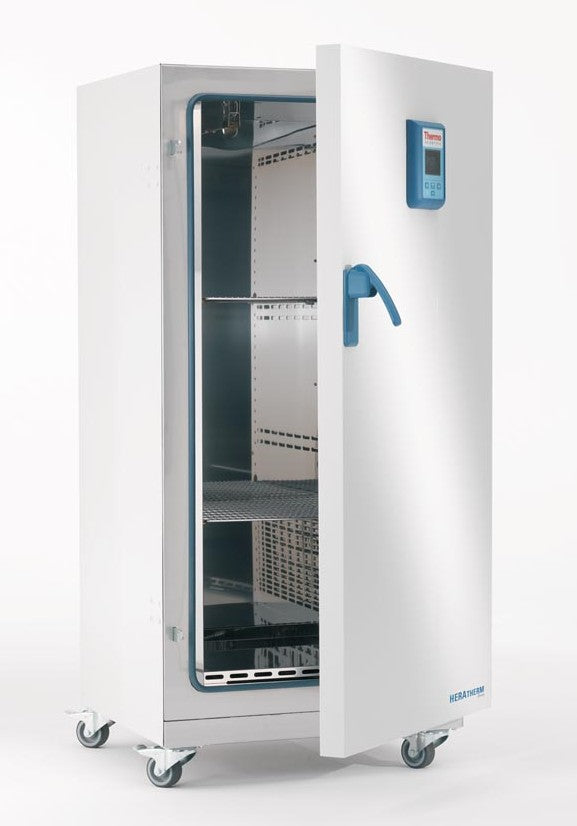

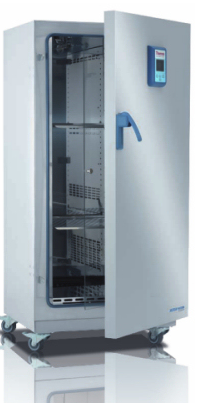

Heratherm™ High Capacity Gravity Convection Oven - 14.8 cu. Ft. / 419L
SKU: OGS400~ea
SKU: OGS400~ea
Description
Heratherm™ large capacity ovens provide high capacity for day- to- day drying and heating applications. Designed to accommodate for larger samples or high sample volumes that you may have. OGS400 operates at a temperature of 10°C above ambient temperature with the max being 250°C.
Features and Benefits
- Low overall energy consumption: 23% energy savings compared to conventional ovens*
- Great footprint/volume ratio
- Optimal use of chamber with flexible shelving system

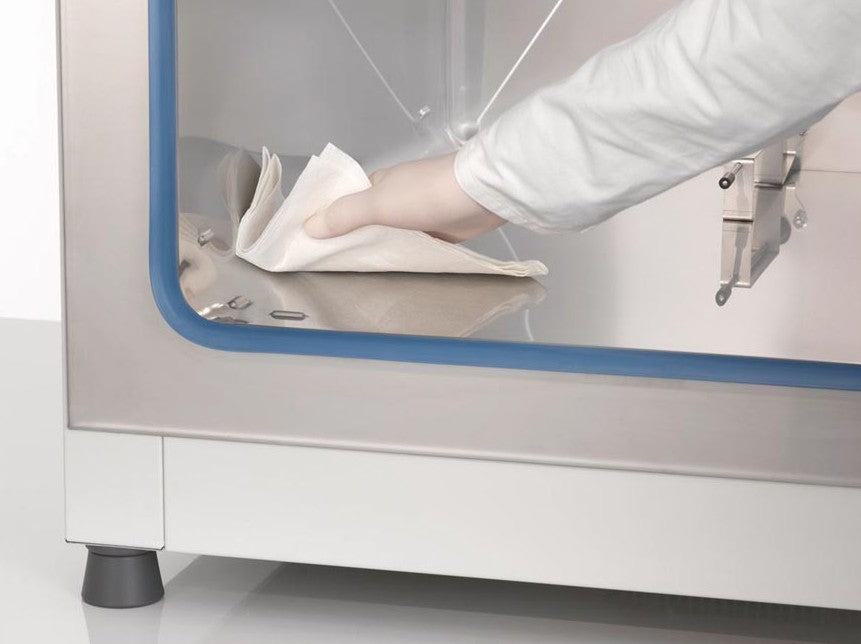

- Corrosion-resistant stainless steel inner chambers (AISI 430)
- Protect delicate samples while still offering a uniformity of ± 3.0°K and temperature stability of 0.5°K at 150°C
- “Plug and play” for 208/240V models with standard Nema 6-20P plug: no special hard-wiring necessary
- Intuitive user interface and easy-to-read display
- Lockable casters for mobility and easy set-up in your lab
Specifications
Max Temperature |
250°C (482°F) |
Volume |
14.8 cu ft (419 L) |
Outside Dimensions |
30.6 x 60.8 x 30.3" (77.8 x 154.5 x 77 cm) |
Chamber Dimensions |
21.4 x 51.5 x 23.2" (54.4 x 130.7 x 59 cm) |
Power |
208-240V / 11A / 2640W |
Spatial Temperature |
± 3.0°C |
Temperature Deviation |
± 0.5 °C |
Footprint |
6.0 sq. ft. / 0.56 m2 |
Controller Type |
Microprocessor control with vacuum fluorescent display |
Timer |
ON / OFF |
Max. Shelf Load |
40 kg / 88 lbs |
Number of Shelves |
2 Supplied, 39 Max. |
Warranty |
2 Year Manufacturer warranty |
Additional Literature
