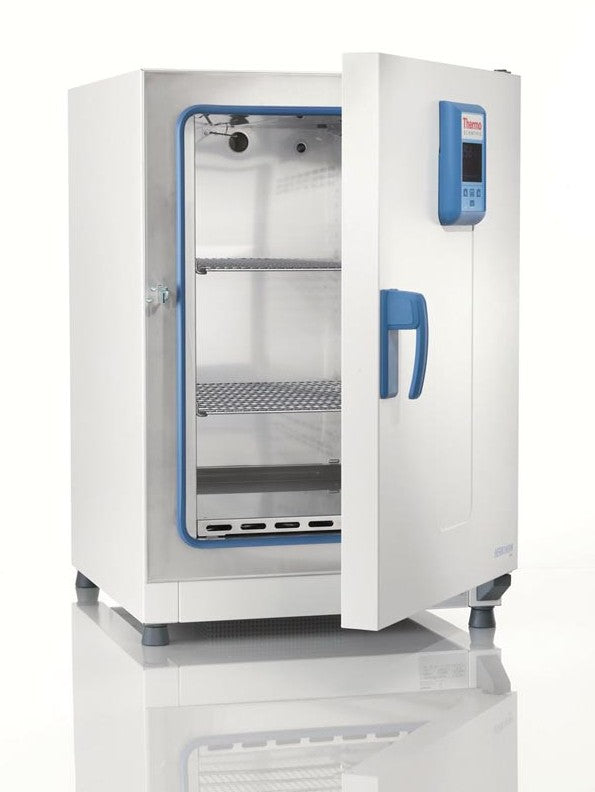

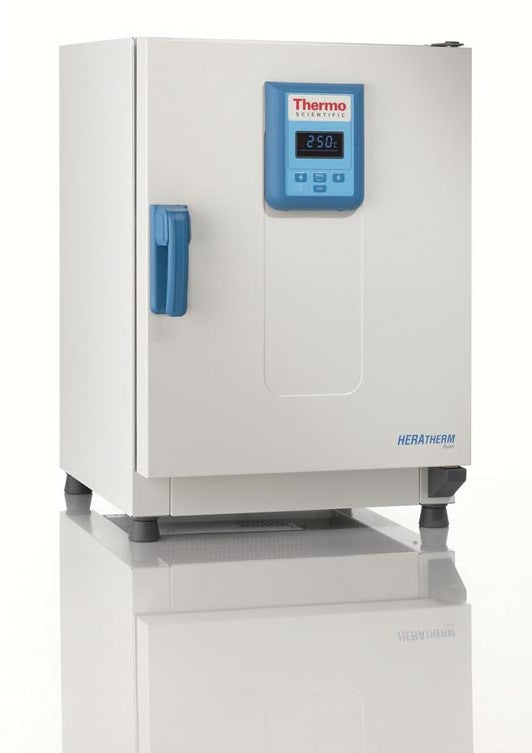

Heratherm™ General Protocol Gravity Convection Oven
50°C - 250°C - 3.75 cu. Ft. / 105L
Heratherm™ General Protocol Gravity Convection provide gentle drying and heating, for research, clinical, and industrial needs. These ovens are designed to protect delicate samples while providing temperature uniformity of ±4°C or better, and temperature stability of at least ±0.4°C at 150°C. Features automatic over-temperature alarm system to protect samples. Large, easy to view display with built in timer and simple, microprocessor-based touch button controls.
Features and Benefits
- Low energy consumption

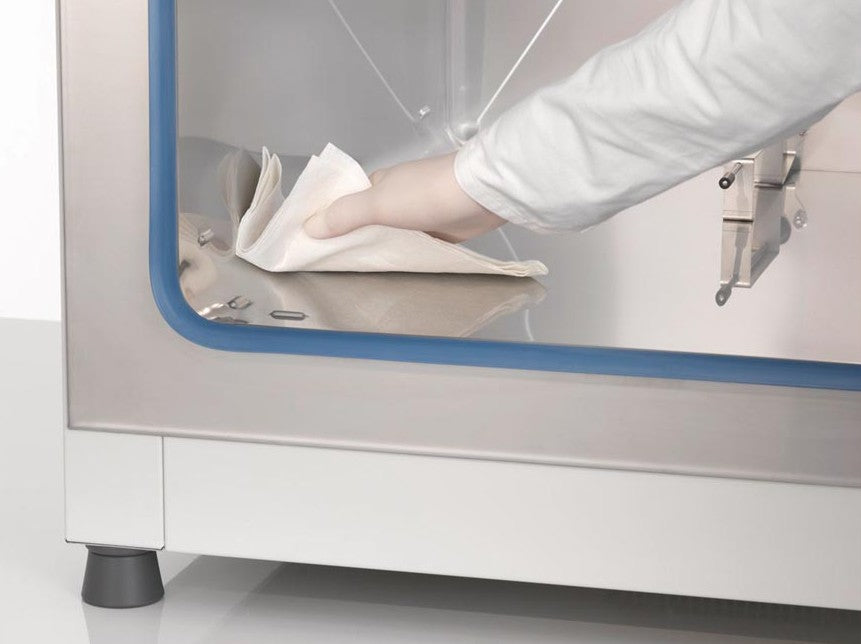

- Inner chambers made from corrosion-resistant galvanized steel with rounded corners for easy cleaning
- Doors can be opened over 180° making these units easy to access
- All Heratherm™ ovens come standard with a RS232 data interface
- The exhaust vent can be used as an access port for an external temperature sensor
Specifications:
|
Max Temperature
|
250°C (482°F)
|
|
Volume
|
3.75 cu ft (105 L)
|
|
Outside Dimensions
(WxHxD)
|
25.2 x 32.3 x 22.2" (64 x 82 x 56.5 cm)
|
|
Chamber Dimensions
(WxHxD)
|
17.2 x 22.8 x 16.3" (43.8 x 58 x 41.4 cm)
|
|
Power
|
120V/ 14A / 1680W
|
|
Spatial Temperature
Deviation at 150 °C
|
± 4.5 °C
|
|
Temperature Deviation
Over Time at 150 °C
|
± 0.4 °C
|
|
Footprint
|
3.9 sq. ft. / 0.36 m2
|
|
Controller Type
|
Microprocessor control with vacuum fluorescent display
|
|
Timer
|
ON / OFF
|
|
Max. Shelf Load
|
25 kg / 55 lbs
|
|
Number of Shelves
|
2 Supplied, 16 Max.
|
|
Warranty
|
2 Year Manufacturer warranty
|
Additional Literature:
Heratherm™ Heating and Drying Ovens Brochure
Heratherm™ Heating and Drying Ovens Manual
