Drucker Diagnostics HORIZON 6 Compact Routine Centrifuge

SKU: HORIZON 6~ea

Drucker Diagnostics HORIZON 6 Compact Routine Centrifuge

SKU: HORIZON 6~ea
Default Title
Regular price $1,776.87 CAD
/
  • Secure payments
Shipping calculated at checkout.

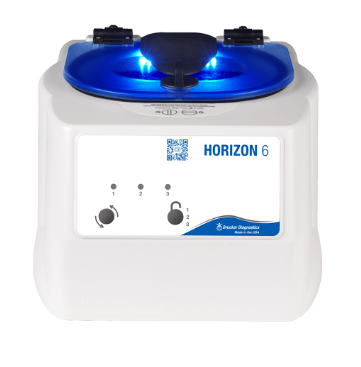

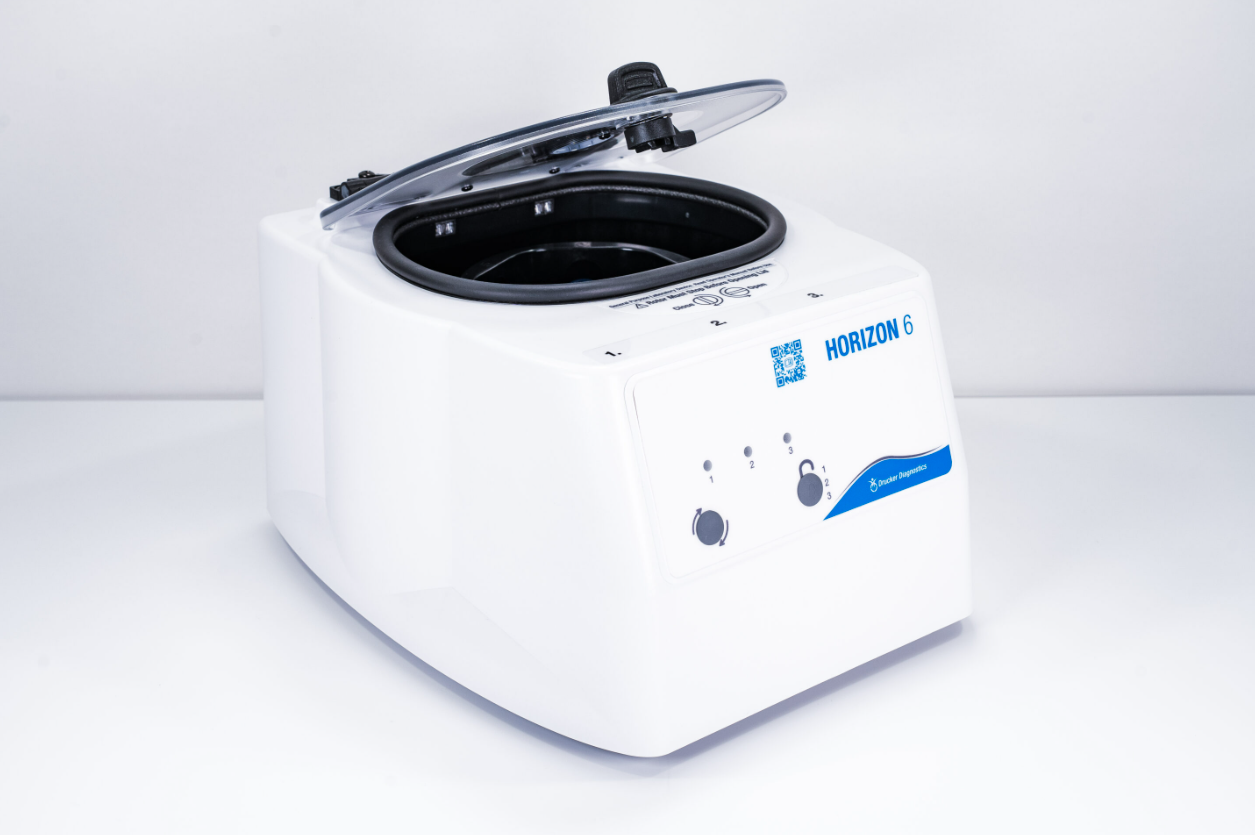

Drucker Diagnostics HORIZON 6 Compact Routine Centrifuge

Drucker Diagnostics HORIZON 6 Compact Routine Centrifuge is perfect for processing blood and urine specimens in labs and point of care facilities. Its six-tube capacity and small footprint ensure repeatability, while the simple interface and preset cycles make it easy to use. Bright LED lighting indicates the status of the cycle.

Features:

  • Max Capacity – 6 (up to 16 x 100 mm or 10 mL)
  • Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
  • Set and Lock Controls – The two-button interface allows users to select a cycle, or lock to a single cycle with the press of a button
  • Intuitive Lid Lighting – No more forgotten samples! Lid lights flash at the end of each cycle and continue flashing until the lid is opened
  • Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning

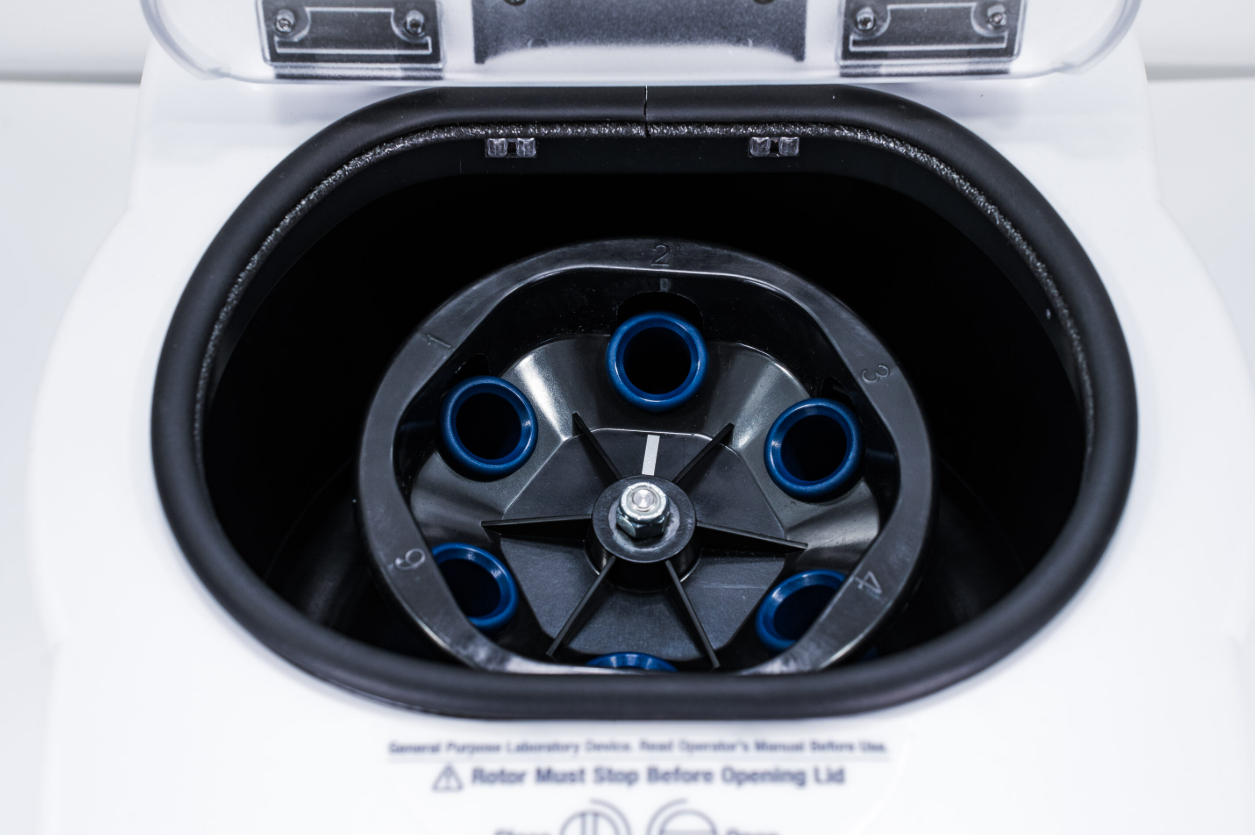

  • 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out rotor design produces ideal horizontally separated samples
  • Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
  • Brushless DC Motor – Years of operation with no routine maintenance
  • Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
  • Reinforced Guard Bowl – Provides maximum safety and durability
  • Quiet Operation – Enjoy a sound level of just 64 dBA
  • Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards

*Rotor and Tube Holders Included

Specifications:

Sound Level 64 dBA
Dimensions (WxDxH) 12 x 14 x 9in
30.5 x 35.6 x 22.9cm
Weight 12 lbs (5.4kg)
Max RPM 3800 RPM
Max G-Force 2000 xg
Max Capacity 6 (up to 16 x 100mm or 10mL)
Interface 2 Button - 3 Setting
Rotor Type Horizontal
Power 100-240 (+/- 10%) - 50/60 Hz
Warranty 2 Years

Preset Cycles:

Preset 1: 10 min / 3600 RPM / 1800 xg
Preset 2: 15 min / 3300 RPM / 1500 xg
Preset 3: 5 min / 1900 RPM / 500 xg

Additional Literature:

HORIZON 6 Operator Manual - English
HORIZON 6 Service Manual - English
HORIZON 6 Datasheet - English
HORIZON 6 Operation and Troubleshooting Guide
Drucker Diagnostics Centrifuge Reference Guide
Drucker Diagnostics Centrifuge Decision Tree
