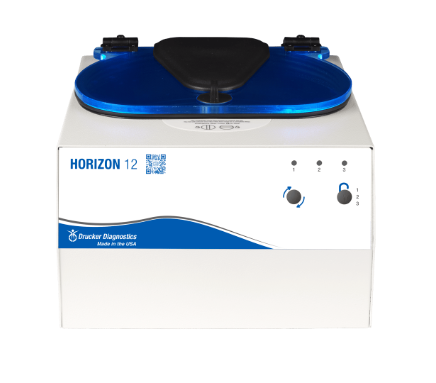

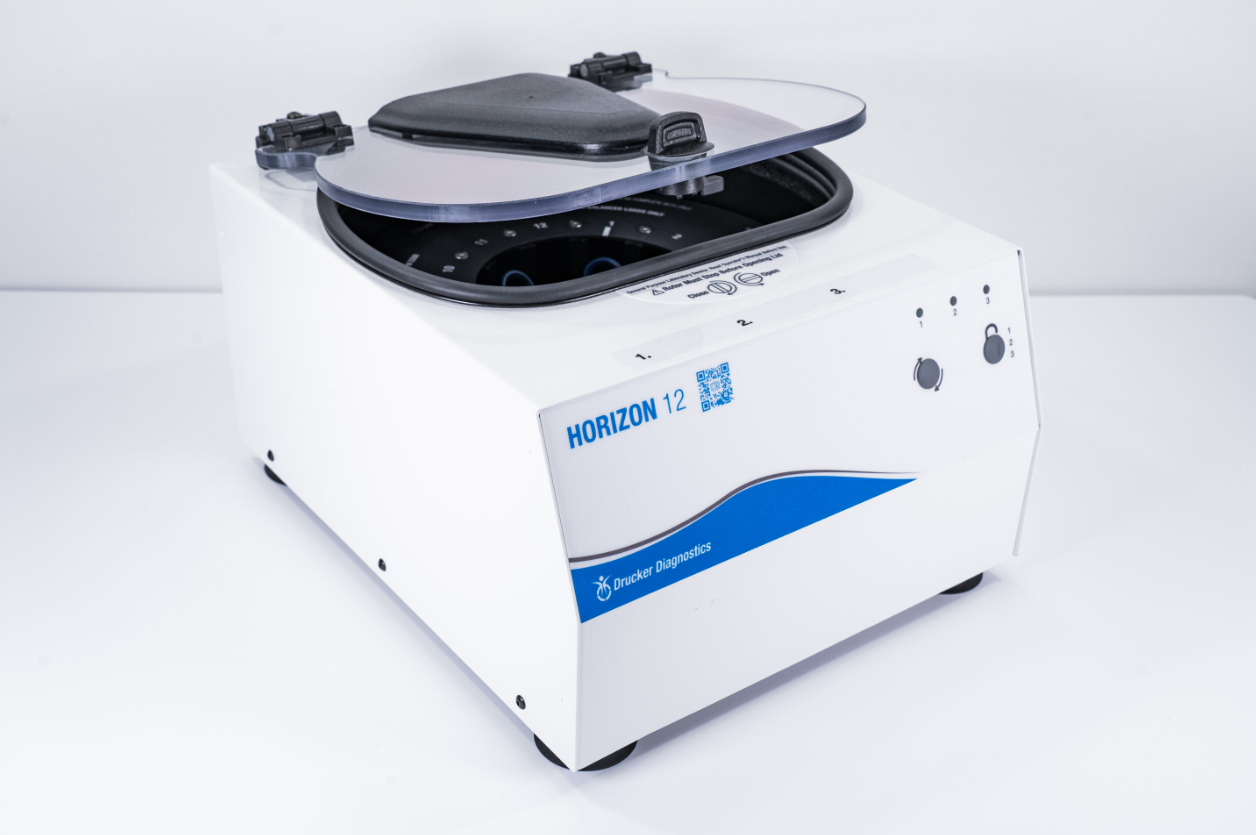

Drucker Diagnostics HORIZON 12 Compact Routine Centrifuge

Drucker Diagnostics HORIZON 12 Compact Routine Centrifuge simplifies processing for up to 16 blood and urine tubes, ensuring the best outcome for patients. Choose from preset cycles or set and lock one to prevent accidental changes. LED lid lighting alerts status of samples, and the centrifuge operates quietly, maintenance-free, and efficiently.

Features:

  • Max Capacity – 12 (up to 16 x 100 mm or 10 mL)

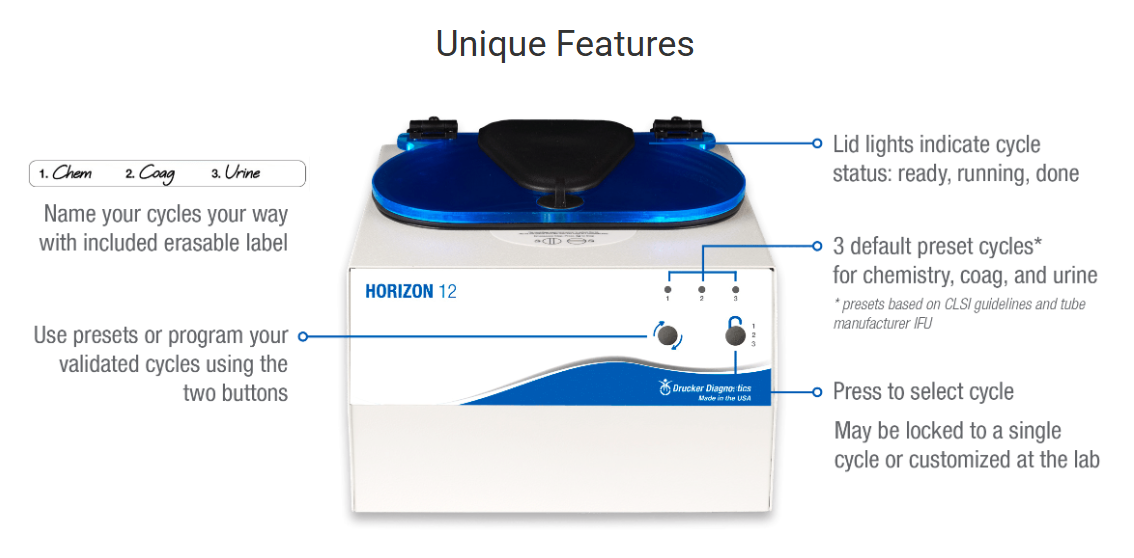

  • Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
  • Set and Lock Controls – Select a preset cycle, or lock to a single cycle with the two-button interface
  • Intuitive Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened
  • Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning

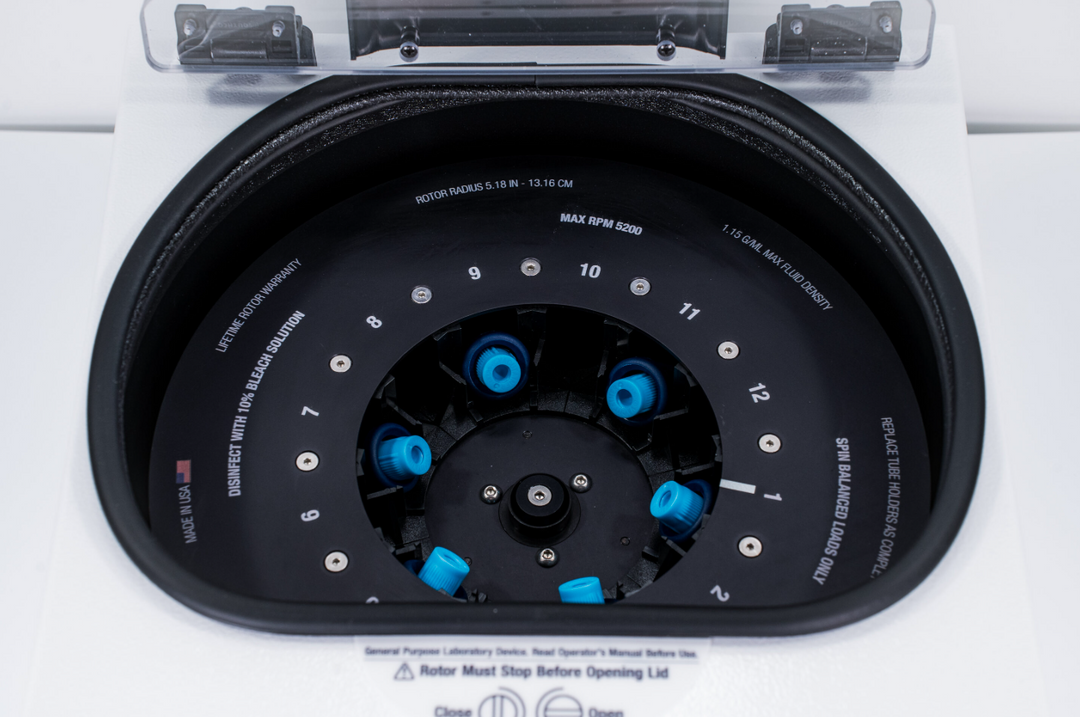

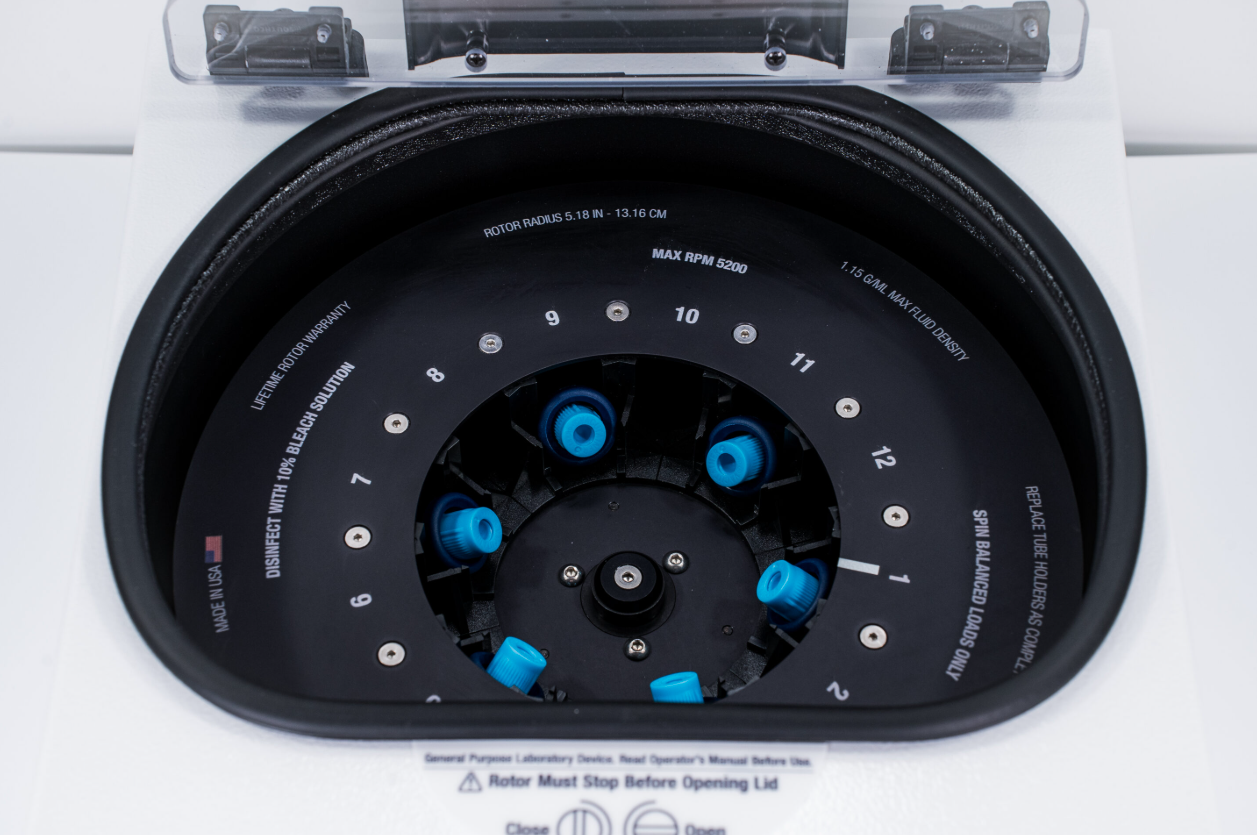

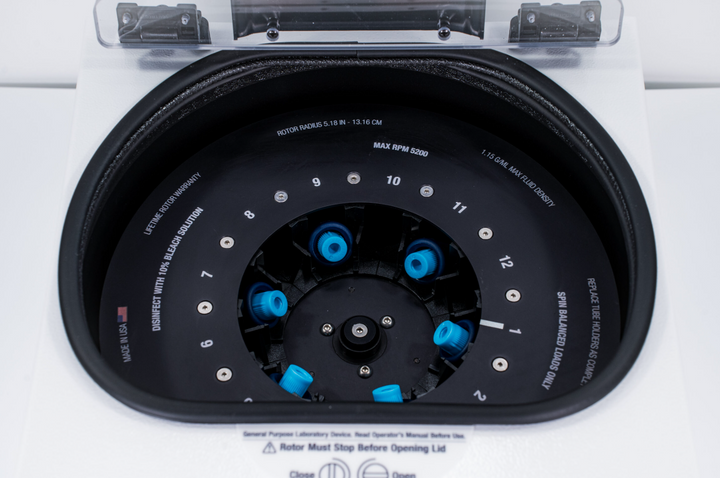

  • 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
  • Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
  • Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
  • Brushless DC Motor – Years of operation with no routine maintenance
  • Reinforced Guard Bowl – Provides maximum safety and durability
  • Quiet Operation – Enjoy a sound level of just 56 dBA
  • Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards

*Rotor and Tube Holders Included

Specifications:

Sound Level 56 dBA
Dimensions (WxDxH) 13 x 15 x 9in
33.1 x 38.1 x 22.9cm
Weight 30 lbs (13.7kg)
Max RPM 3700 RPM
Max G-Force 2000 xg
Max Capacity 12 (up to 16 x 100mm or 10mL)
Interface 2 Button - 3 Setting
Rotor Type Horizontal
Power 100-240 (+/- 10%) - 50/60 Hz
Warranty 2 Years

Preset Cycles:

Preset 1: 10 min / 3500 RPM / 1800 xg
Preset 2: 15 min / 3200 RPM / 1500 xg
Preset 3: 5 min / 1800 RPM / 500 xg

Additional Literature:

HORIZON 12 Operator Manual - English
HORIZON 12 Service Manual - English
HORIZON 12 Datasheet - English
HORIZON 12 Operation and Troubleshooting Guide
Drucker Diagnostics Centrifuge Reference Guide
Drucker Diagnostics Centrifuge Decision Tree
