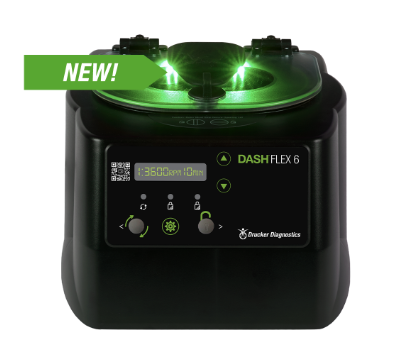

Drucker Diagnostics DASH Flex 6 Programmable STAT Centrifuge
Drucker Diagnostics’ DASH Flex 6 – the space-saving centrifuge with flexible controls and a digital display. Choose from up to 10 programmable settings and spin 6 tubes up to 10 mL with the compatible horizontal rotor. This expert-designed centrifuge arrives pre-programmed with common STAT settings and is compatible with recommended IFUs for all common tube manufacturers.
Features:
- Capacity – Up to six (6) tubes
- Tube Sizes – Up to 16 x 100 mm or 10 mL

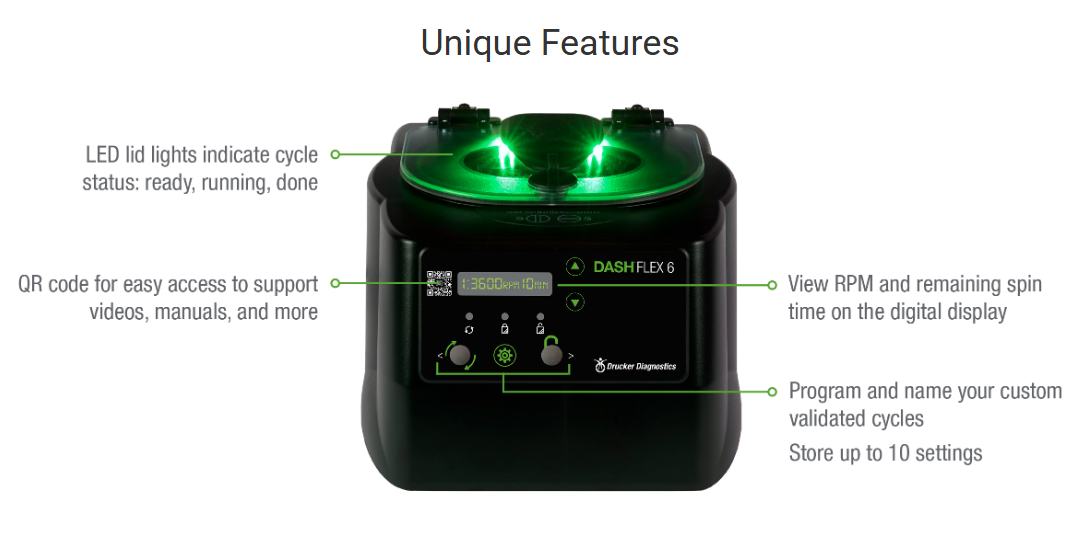

- Digital Display – Clearly see your custom parameters and the time left in each cycle
- Fully Programmable – Easily set and save up to 10 custom time, RPM, and g-force settings
- Brushless DC Motor – Years of operation with no routine maintenance
- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
-
Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
*Rotor and Tube Holders Included
Specifications:
| Sound Level | 61 dBA |
| Dimensions (WxDxH) | 12 x 14 x 9in 30.5 x 35.6 x 22.9cm |
| Weight | 12 lbs (5.4kg) |
| Max RPM | 5400 RPM |
| Max G-Force | 4150 xg |
| Max Capacity | 6 (up to 16 x 100mm or 10mL) |
| Interface | Digital - 10 Setting |
| Rotor Type | Horizontal |
| Power | 100-240 (+/- 10%) - 50/60 Hz |
| Warranty | 2 Years |
Preset 2: 5 minutes / 5300 RPM / 4000 xg
Preset 3: 10 minutes / 3800 RPM / 2000 xg
Additional Literature:
DASH Flex 6 Operator Manual - English
DASH Flex 6 Datasheet - English
Drucker Diagnostics Centrifuge Reference Guide
Drucker Diagnostics Centrifuge Decision Tree
