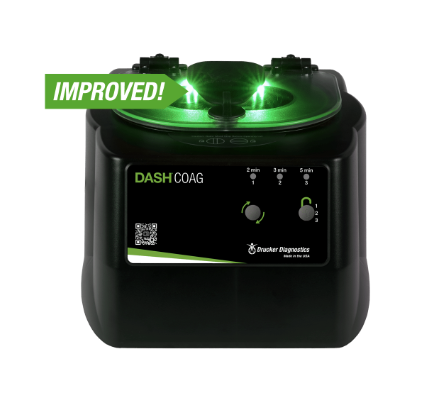

Drucker Diagnostics DASH Coag 2-3-5 Minute STAT Coag Centrifuge
DASH Coag 2-3-5 Minute STAT Coag Centrifuge from Drucker Diagnostics is perfect for high volume labs. With upgraded features, it can accommodate larger tubes and its user-friendly set-and-lock controls streamline operations. Simply select from the three preset cycles and get high-quality samples with the press of a button.

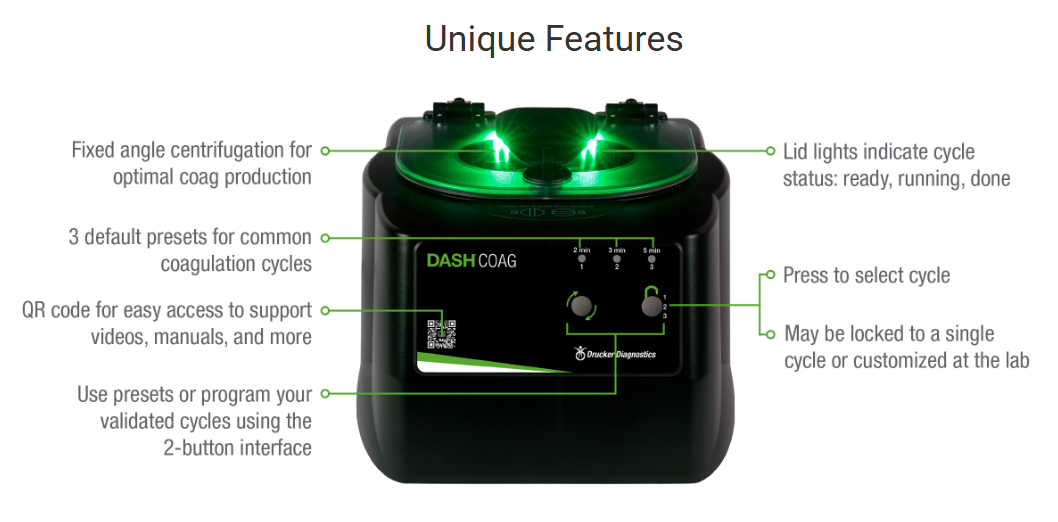

Features:
-
Capacity – Up to 12 tubes
-
Tube Sizes – Up to 16 x 100 mm or 10 mL
-
Electronic Timer – 3 easily selectable preset cycles (default or custom)
-
Brushless DC Motor – Years of operation with no routine maintenance
-

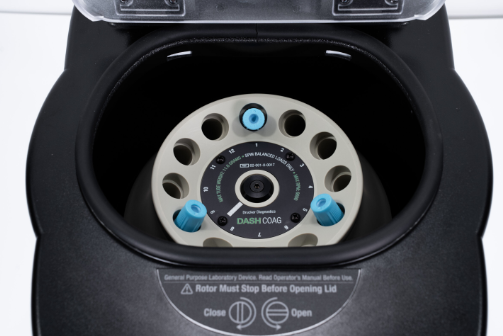

Fixed Angle Rotor – The rotor remains at a 45° angle during processing for optimal PPP formation
-
Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
-
Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
-
Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
-
Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
-
Reinforced Guard Bowl – Provides maximum safety and durability
-
Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
*Rotor and Tube Holders Included
Specifications:
Sound Level |
61 dBA |
Dimensions (WxDxH) |
12 x 14 x 9in 30.5 x 35.6 x 22.9cm |
Weight |
12 lbs (5.4kg) |
Max RPM |
6600 RPM |
Max G-Force |
4400 xg |
Max Capacity |
12 (up to 16 x 100mm or 10mL) |
Interface |
2-Button, 3-Setting |
Rotor Type |
Fixed Angle |
Power |
100-240 (+/- 10%) - 50/60 Hz |
Warranty |
2 Years |
Preset Cycles:
Preset 1: 2 minutes / 6600 RPM / 4400 xg
Preset 2: 3 minutes / 6600 RPM / 4400 xg
Preset 3: 5 minutes / 5200 RPM / 2700 xg
Additional Literature:
DASH Coag Operator Manual - English
DASH Coag Datasheet - English
Drucker Diagnostics Centrifuge Reference Guide
Drucker Diagnostics Centrifuge Decision Tree
