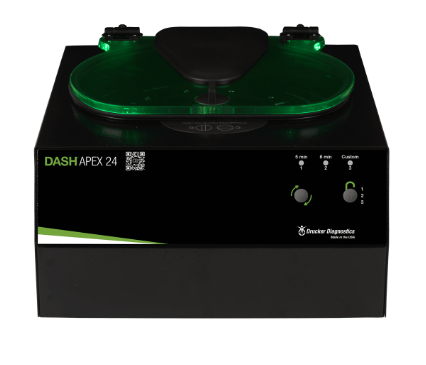

Drucker Diagnostics DASH Apex 24 High Volume STAT Centrifuge

DASH Apex 24 centrifuge is the perfect solution for large, high-volume STAT labs. Its LED lid lighting (patent pending) prevents forgotten samples and reduces turnaround time. With a small footprint and 24-tube capacity, it can quickly process samples and improve TAT. The simple set-and-lock controls ensure maximum repeatability.

Features:

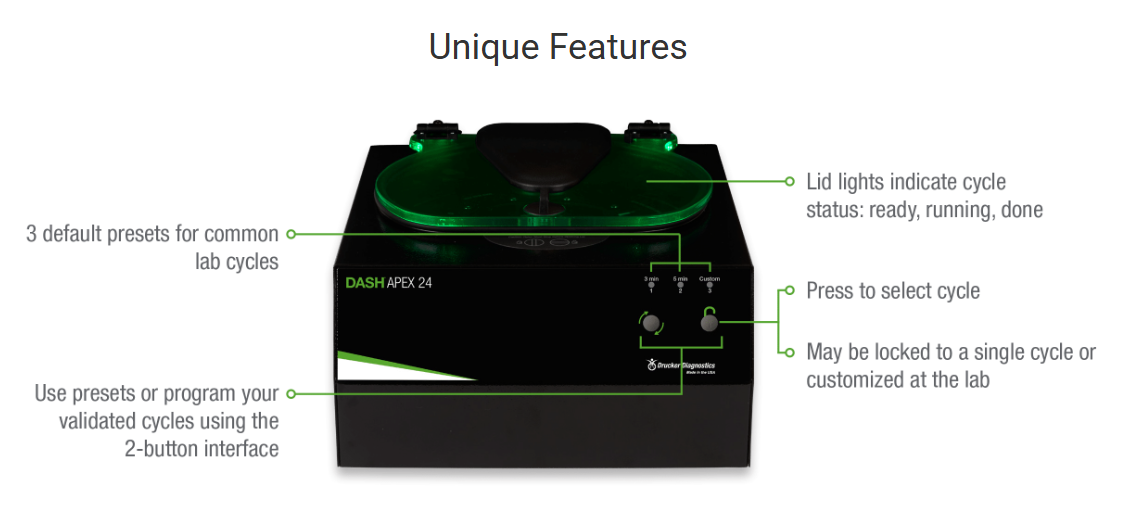

• Electronic Timer – 3 easily selectable pre-set cycles (default or custom)
• Capacity – 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
• Brushless DC Motor – Years of operation with no routine maintenance
• 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
• Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
• Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
• Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
• Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
• Reinforced Guard Bowl – Provides maximum safety and durability
• Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards


Specifications:

Additional Literature:

DASH Apex 24 Operator Manual - English
DASH Apex 24 Service Manual - English
DASH Apex 24 Datasheet - English
Drucker Diagnostics Centrifuge Reference Guide
Drucker Diagnostics Centrifuge Decision Tree
