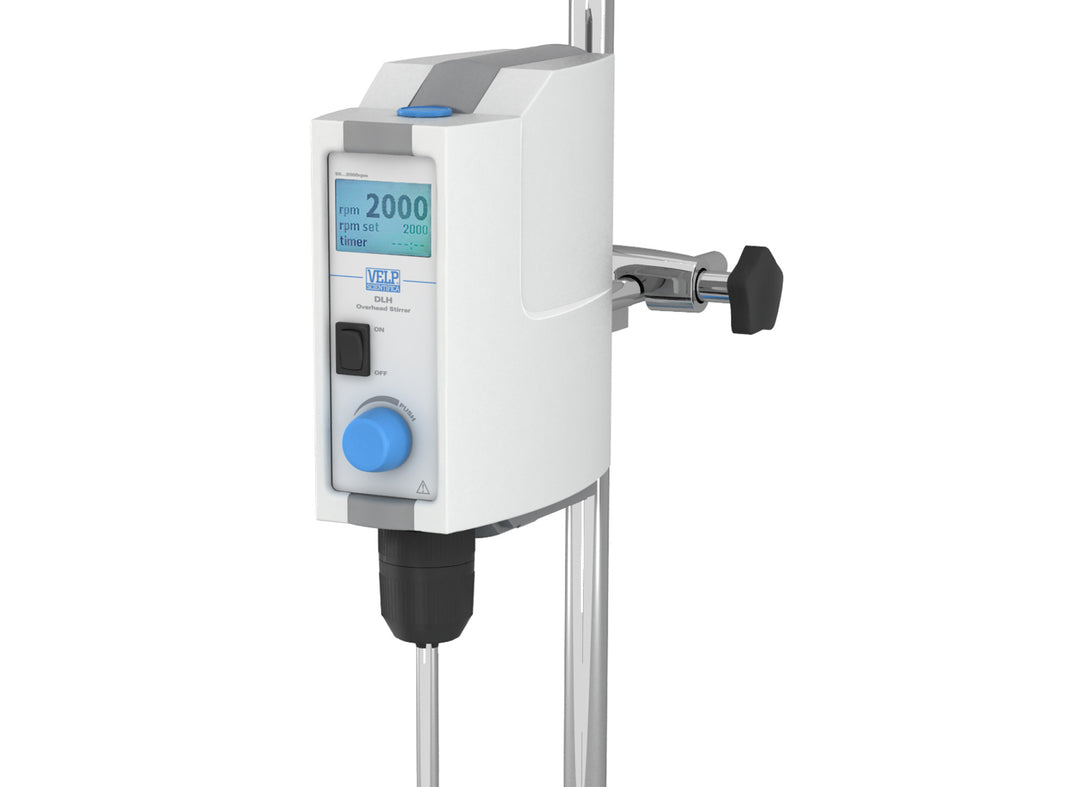

VELP DLH Digital Overhead Stirrer

The VELP DLH is a powerful digital overhead stirrer designed for precise mixing of medium to high viscosity samples in demanding laboratory environments. Delivering up to 80 Ncm of torque with electronic speed regulation from 50 to 2000 rpm, it ensures reliable and consistent performance for volumes up to 40 L and viscosities up to 50,000 mPa*s. The bright digital display provides real-time monitoring of key parameters including set speed, actual speed, torque, and timer, allowing full control over the mixing process. Equipped with a programmable timer up to 999:59 minutes with automatic shut-off, the DLH enhances repeatability and workflow efficiency. Its advanced SpeedServo™ feedback system maintains constant speed even when sample viscosity changes, while the smooth start function minimizes splashing. Built for durability, the DLH features a robust long-life motor, automatic shut-off in case of blockage, and full overload, overcurrent, and overheating protection. The lightweight technopolymer and epoxy-painted aluminum construction ensures excellent chemical resistance, making the DLH a dependable solution for laboratories handling more demanding mixing applications.

Features

• Digital display showing set speed, actual speed, torque, and timer in real time
• Electronic speed regulation from 50 to 2000 rpm for precise control
• Maximum torque of 80 Ncm for medium to high viscosity applications
• Handles volumes up to 40 L for larger laboratory processes
• Capable of mixing viscosities up to 50,000 mPa*s
• Digital timer up to 999:59 minutes with automatic shut-off
• SpeedServo™ feedback system maintains constant speed during viscosity changes
• Smooth start function reduces splashing and improves control
• Automatic motor stop in case of blockage to prevent damage or burn-out
• Overload, overcurrent, and overheating protection for safe operation
• Tool-free easy chuck accommodating shafts from 1 to 10 mm
• Compact and lightweight design with small footprint
• IP 40 protection rating for laboratory environments
• Chemically resistant technopolymer and epoxy-coated aluminum construction


Specifications

Documentation:

Brochure

Manual

Comparison Table
