Dispensette® S Trace Analysis Bottletop Dispenser
SKU: 4640041~ea
SKU: 4640041~ea
Description

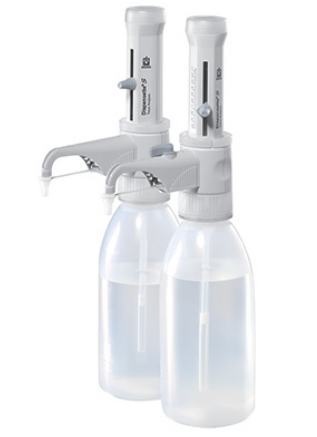

Dispensette® S Trace Analysis Bottletop Dispenser
Dispensette® S Trace Analysis is the next generation bottletop dispenser for precise volume dispensing of high-purity media for trace analysis. It is especially suited for dispensing acids, bases and hydrogen peroxide in the volume range from 1 to 10 mL.
Components of the fluid path have been selected to only contain the highest purity materials, such as fluoroplastics and sapphire. The result is a trace metal content of dispensed liquid generally in the low ppb range, or even in the low ppt range, depending on the application. Both platinum-iridium and tantalum valve springs are available for application compatibility.
Features:
- Simple to mount discharge tube available with or without integrated recirculation valve
- Designed without additional sealing rings for ease of cleaning and maintenance
- Replaceable discharge valve with safety valve
- Olive-shaped filling valve for firmer attachment of filling tubes
- Improved flow technology results in faster priming
- Scalloped track for secure volume setting on analog dispensers
Specifications:
*Both platinum-iridium and tantalum valve springs are available for application compatibility.*
|
Volume
mL |
Valve Spring
|
Subdivision
mL |
A* ≤ ±
|
CV* ≤
|
w/ Recirculation Valve
Cat. No. |
||
|---|---|---|---|---|---|---|---|
|
%
|
µL
|
%
|
µL
|
||||
|
1-10
|
Platinum-iridium
|
0.2
|
0.5
|
50
|
0.1
|
10
|
4640041
|
|
1-10
|
Tantalum
|
0.2
|
0.5
|
50
|
0.1
|
10
|
4640241
|
A*=Accuracy, CV*=Coefficient of Variation
*The value of accuracy and coefficient of variation are final test values referring ot the delivered nominal volume, instrument and distilled water at equilibrium with ambient temperature (20°C/68°F) and with smooth operation.
Literature:
Dispensette S Trace Analysis Operation Manual
Dispensette S Calibration SOP
