Digital Forced Air Oven - 14.6 Cu. Ft.

SKU: SMO14-2~ea

SKU: SMO14-2~ea

Some sizes or selections of this product may be backordered. General ETA is 2 weeks for delivery. If you require a product urgently, please feel free to Chat (bottom right), Email - sales@ceproducts.ca or Call 1-800-535-3751 to confirm stock / lead time. We appreciate your business!

Get a Quote

Description

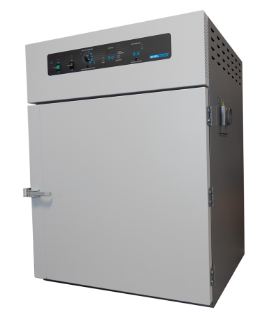

Digital Forced Air Oven - 14.6 Cu. Ft. - 15°C to 260°C

SMO14-2 is the largest general purpose oven on the market. Turbo blower-assisted forced airflow design, coupled with a heavy-duty blower motor, offers excellent temperature uniformity and fast recovery times. Airflow is directed evenly across all shelves and samples to ensure consistent drying, curing, and baking results.

Independent overtemperature safety feature is user adjustable and provides added safety. SMO large capacity units are perfect for high volume sample and drying applications, including production processes. These units are especially ideal for glassware drying.

Features:

  • Three inch Adjustable Exhaust Port
  • Stainless Steel Shelves
  • High Temperature Silicone Door Seal
  • No Exposed Heating Elements
  • Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
  • Shelf standards moved to the sides of the unit for easier shelf installation
  • Wrap Around Insulation
  • Durable Powder Coat Paint Exterior Finish
  • Digital Timer
  • 24 Month Limited Warranty


Specifications:

Capacity 14.6 cu.ft. (413 L)
Exterior Dimensions (W × D × H) 39.1 × 34 × 48
(993 mm × 864 mm × 1219 mm)
Interior Dimensions (W × D × H) 30.8 × 24.8 × 31
(782 mm × 630 mm × 788 mm)
Shelf Dimensions (W × D) 30.1 × 24 (765 mm × 610 mm)
Unit Weight 280.0 lbs (127.3 kg)
Shelving 3 Supplied (8 Maximum)

Interior Metal

430 SST
Exterior Metal Painted Cold Roll Steel
Operating Temperature Range Amb +15C - 260C
Temperature Uniformity
- Mid-Range
3.0 °C
Temperature Stability
- Mid-Range
0.4 °C
Controller Type
Digital
Display Resolution
1 °C
Power Voltage,
Frequency & Current
230 VAC, 50/60 Hz, 12.0 Amps
Safety Certifications
UL 61010-1, EN 61010-1, CSA 61010-1, CE
Warranty 24 Months


Available Literature:

SMO14 Series Data Sheet
SMO14 Series Manual
