Clean Room Digital Forced Air Oven - 3.9 Cu. Ft. - 20 to 270°C Range

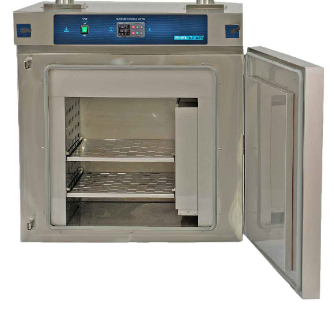

SMO5CR-2 cleanroom oven incorporates all the special features needed for high-temperature cleanroom work: stainless-steel interior, adjustable perforated stainless-steel shelves, and rapid heat recovery.

The Watlow controller is capable of a 40-step ramp and soak profile or 4 files with 10 steps per file. SMO5CR-2 cleanroom ovens are made with high-temperature, wrap-around insulation, and a high-temperature silicone door gasket.

SMO5CR-2’s adjustable air intake and exhaust ducts are easily removed for cleaning. Chamber air is continually passed through the Class E11 efficiency particle filter in SMO5CR-2’s horizontal airflow regimen; this contrasts with other oven designs that merely filter the incoming air once. A nitrogen inlet purge port is standard to reduce external air ingress and the risk of contamination.

Features:

Horizontal Airflow
Encapsulated Insulation
Nitrogen Purging
Brushless Circulation Blower Motor
Watlow Controller
Class E11 Efficiency Particle Filter
300 Series Stainless-Steel Exterior
Fully Welded Stainless-Steel Interior
Built-in Overtemperature Protection
24 Month Limited Warranty

Specifications:

Capacity	3.9 cu.ft. (111 L)
Exterior Dimensions (WxDxH)	35 × 30 × 37.6 (889 mm × 747 mm × 955 mm)
Interior Dimensions (WxDxH)	17 × 20 × 20 (431 mm × 508 mm × 508 mm)
Shelf Dimensions (WxD)	16.6 × 20.1 (421 mm × 510 mm)
Unit Weight	325 lbs (147 kg)
Interior Metal	300 SST
Exterior Metal	300 SST
Operating Temperature Range	Amb +20°C - 270°C
Temperature Uniformity - Mid Range	2.5 °C
Temperature Stability - Mid Range	0.3 °C
Controller Type	Digital
Display Resolution	0.1 °C
Power Voltage, Frequency and Current	220-240 VAC, 50/60 Hz, 12.0 Amps
Safety Certifications	UL 61010-1, EN 61010-1, CSA 61010-1, CE

Additional Literature:
SMO5CR-2 Brochure
SMO5CR-2 220/240V - Manual
