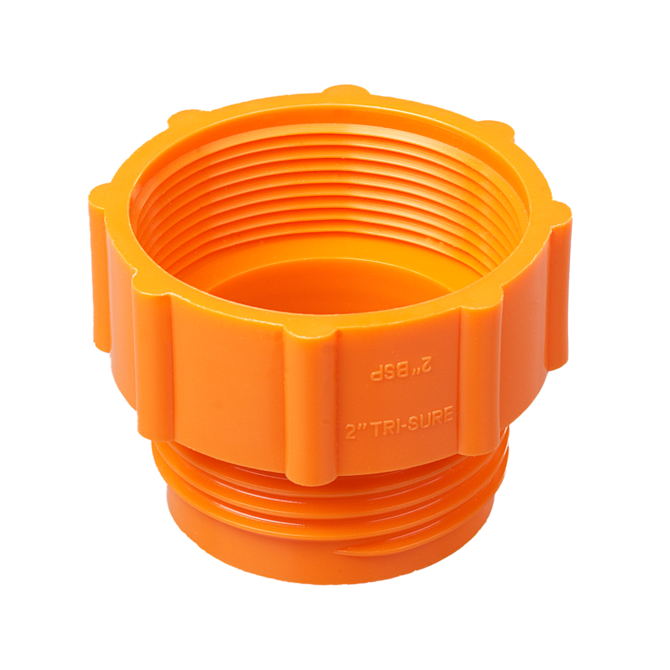

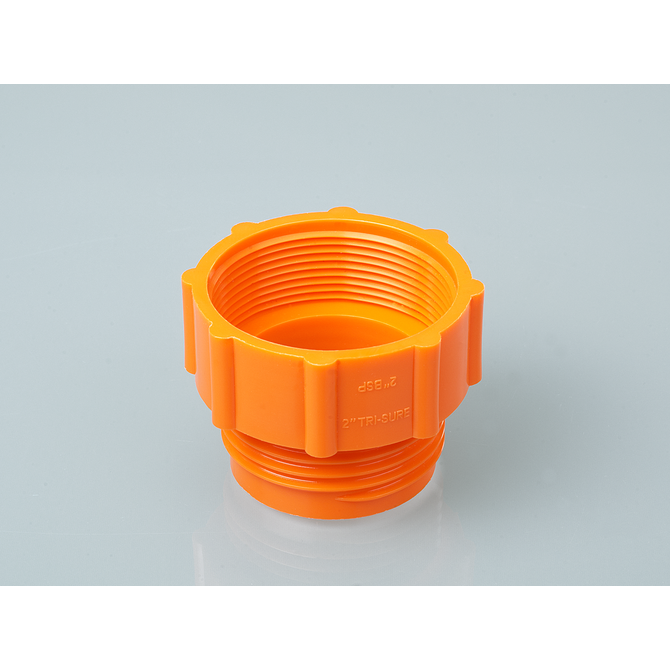

The Burkle 0600-1006 PP Thread Adapter connects containers with an S 56×4 (Tri-Sure) external thread to equipment or components with a G 2" external thread. Made from polypropylene, this adapter provides a practical thread transition for compatible drums, canisters, pumps and liquid-handling equipment.
The 0600-1006 is specifically configured with a Tri-Sure S 56×4 external thread and a G 2" internal thread, making the exact thread configuration important when selecting this adapter.
Important: The 0600-1006 has an S 56×4 external thread and a G 2" internal thread. The mating components must have the corresponding opposite threads. Verify the thread standard, diameter and pitch before ordering.
| Connection | Thread | Thread Type |
|---|---|---|
| Container side | S 56×4 (Tri-Sure) | External |
| Equipment/component side | G 2" | Internal |
The S 56×4 thread is a Tri-Sure container thread specification. On the Burkle 0600-1006, this connection is an external thread designed to mate with a compatible S 56×4 internal thread.
The opposite side of the adapter provides a G 2" internal thread for connection to a compatible G 2" external thread. This allows equipment using the G 2" thread standard to be connected to a container using the S 56×4 Tri-Sure standard.
Burkle's thread adapter range is designed to facilitate the connection of pumps and discharge cocks to containers with different thread standards. The 0600-1006 provides one specific thread transition: S 56×4 (Tri-Sure) external to G 2" internal.
For example, a compatible container-side component with an S 56×4 internal thread can mate with the adapter's external S 56×4 thread, while equipment with a G 2" external thread can connect to the adapter's G 2" internal thread.
Correct thread identification is essential when selecting a container adapter. Similar-looking container openings can use different thread standards, so the actual thread dimensions and configuration should be verified before ordering.
Before ordering:
| Manufacturer | Burkle |
| SKU | 0600-1006 |
| Product type | Thread adapter |
| General material | PP (polypropylene) |
| First connection | S 56×4 (Tri-Sure), external thread |
| Second connection | G 2", internal thread |
| Colour | Orange |
| Packaging unit | 1 piece |
The 0600-1006 is constructed from polypropylene (PP). Chemical compatibility should be evaluated for the specific liquid, concentration, temperature and operating conditions before use.
Do not assume compatibility solely from the PP construction. Burkle provides chemical-resistance information to assist with material selection.
The 0600-1006 has an S 56×4 (Tri-Sure) external thread and a G 2" internal thread.
S 56×4 is a Tri-Sure container thread designation. The Burkle 0600-1006 uses this thread as an external connection.
G 2" refers to a G/BSP parallel pipe thread. On the 0600-1006, the G 2" connection is an internal thread and is intended to mate with a compatible G 2" external thread.
The adapter is intended for compatible containers or container connections using an S 56×4 (Tri-Sure) internal thread. The connected equipment must have a compatible G 2" external thread. Verify the actual thread configuration before ordering.
Yes. More precisely, it converts between an S 56×4 (Tri-Sure) external thread and a G 2" internal thread.
Burkle offers multiple thread adapters for different drum, canister and equipment thread standards. If you are unsure whether S 56×4 Tri-Sure, G 2" or another thread configuration is required, contact Cambridge Environmental Products before ordering.
