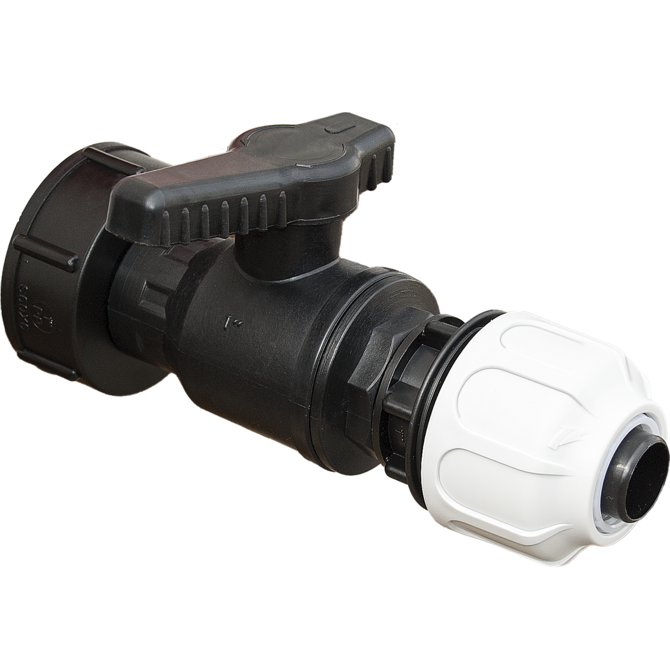

The Burkle IBC discharge valve with hose screw connection is a heavy-duty ball valve designed for controlled liquid dispensing and hose connection from compatible IBC containers. The integrated hose screw connection allows a wide range of hoses to be attached without an additional hose clamp.
The valve is designed for standard European IBC container connections and includes a connection adapter with seal. The S 60x6 (DIN 60) internal thread provides compatibility with commonly used IBC outlets, while the freely positionable valve allows the discharge direction to be adjusted to suit the installation.
IBC tanks are commonly used for storing and transporting large volumes of liquids, but connecting a hose directly to the original outlet can be inconvenient depending on the application. The Burkle IBC discharge valve provides a dedicated valve and hose connection for more controlled liquid transfer.
Burkle states that the valve is designed for commonly used European IBC containers. With the appropriate thread connection, it can also be installed directly onto an existing IBC discharge valve when the original valve is leaking or faulty, providing a practical option for residual emptying of the container.
| Manufacturer | Burkle |
| Product | IBC discharge valve with hose screw connection |
| SKU | 0534-0001 |
| Valve design | Ball valve |
| IBC connection | S 60x6 (DIN 60) |
| Connection configuration | Internal thread |
| Hose connection | Hose screw connection |
| Hose connection outside diameter | 25 mm |
| General material | PP (polypropylene) |
| Further materials | POM, NBR |
| Colour | Black |
| Maximum operating pressure | 10 bar at 20 °C |
| Maximum operating temperature | 80 °C |
| Flow rate | Low flow rate |
| Valve positioning | Tap can be freely positioned |
| Dimensions | 205 L × 72 W × 95 H mm |
The integrated hose screw connection is the primary feature of this IBC discharge valve. Burkle designed the connection to accommodate a wide range of hoses while avoiding the need for a separate hose clamp.
The hose fitting is manufactured from PP/POM and has an external diameter of 25 mm. The screw connection provides a practical attachment point for hose-based liquid transfer from the IBC.
The valve uses an S 60x6 (DIN 60) internal thread. Burkle identifies this connection as suitable for standard S 60x6 external threads used on commonly used European IBC containers.

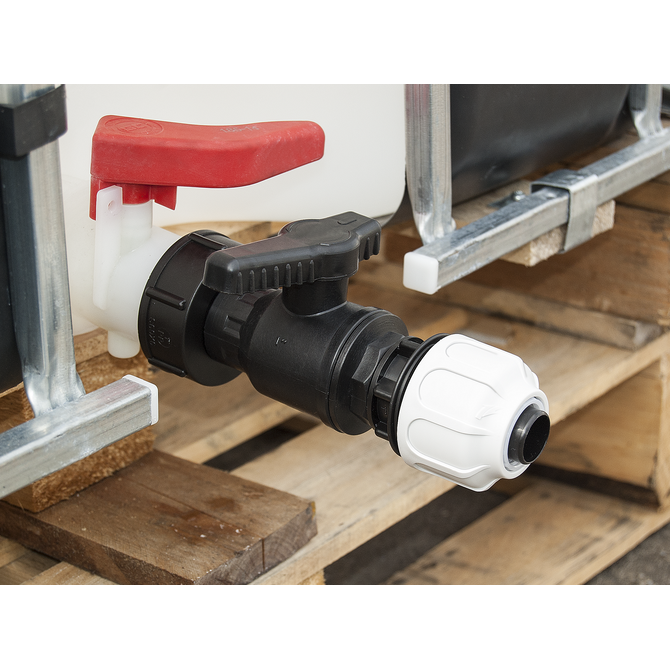

The supplied connection adapter and seal provide the interface between the IBC outlet and the discharge valve. Burkle also states that, with the appropriate thread, the valve can be screwed directly onto the original discharge valve already fitted to an IBC tank.
The IBC discharge valve uses a ball valve design to control liquid flow. The manufacturer specifies a low flow rate and states that the tap can be freely positioned, allowing the outlet orientation to be adjusted according to the container and hose arrangement.
This makes the valve suitable for applications where the IBC needs to be emptied or liquid needs to be transferred through a connected hose in a controlled manner.
For this specific IBC discharge valve, Burkle specifies a maximum operating pressure of 10 bar at 20 °C and a maximum operating temperature of 80 °C.
These are manufacturer specifications for the valve and should not be interpreted as ratings for the complete IBC tank, hose assembly or liquid-handling system. The operating limits of the complete system should always be considered.
The main valve construction is polypropylene (PP), with POM (polyoxymethylene) and NBR (nitrile butadiene rubber) also specified by Burkle.
For chemical applications, verify compatibility between the liquid and all wetted materials before use. Chemical compatibility can depend on concentration, temperature, exposure time and other operating conditions.
| Application | Benefit |
|---|---|
| IBC liquid dispensing | Provides a dedicated valve and hose connection for controlled transfer. |
| Hose-based liquid transfer | Integrated screw connection eliminates the need for a separate hose clamp. |
| IBC residual emptying | Can be installed on compatible IBC outlets to assist with residual liquid removal. |
| Laboratory and industrial liquid handling | Provides controlled discharge from compatible IBC storage containers. |
| IBC outlet replacement | Can be installed directly onto a compatible original IBC discharge valve when the appropriate thread is available. |

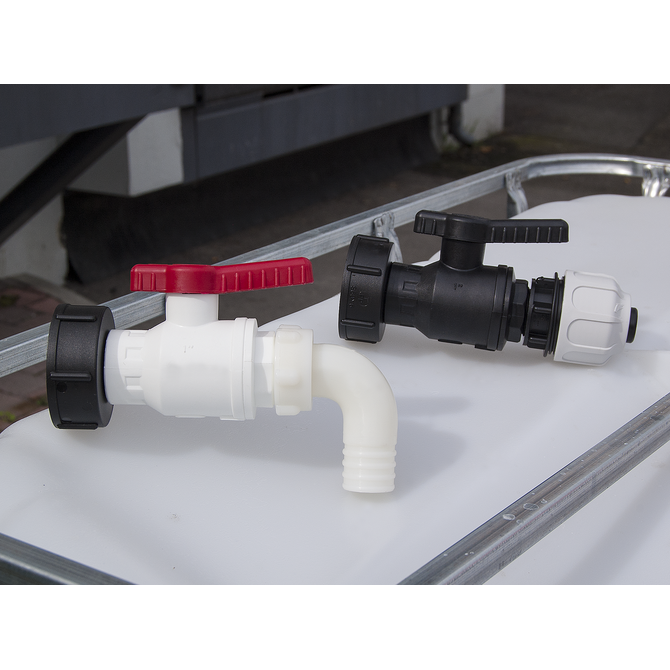

Burkle also offers an IBC discharge valve with angle discharge. That version uses a 90° hose nozzle and sealing cap, whereas this 0534-0001 model uses an integrated hose screw connection designed to accommodate a wide range of hoses without an additional hose clamp.
The valve uses an S 60x6 (DIN 60) internal thread. Burkle specifies it for compatible IBC containers with an S 60x6 external connection.
The hose screw connection has an external diameter of 25 mm. The screw connection is designed to accommodate a wide range of hoses without requiring an additional hose clamp.
No. Burkle specifically states that the hose screw connection eliminates the need for an additional hose clamp.
The discharge valve uses a ball valve and is specified as having a low flow rate.
The manufacturer specifies a maximum operating pressure of 10 bar at 20 °C.
The manufacturer specifies a maximum operating temperature of 80 °C.
Yes, where the appropriate thread connection is available. Burkle states that the valve can be screwed directly onto the original IBC discharge valve, including as an option for a leaking or faulty original valve.
If you are unsure whether your IBC outlet matches the S 60x6 connection or whether your hose is compatible with the 25 mm screw connection, contact Cambridge Environmental Products for assistance.
