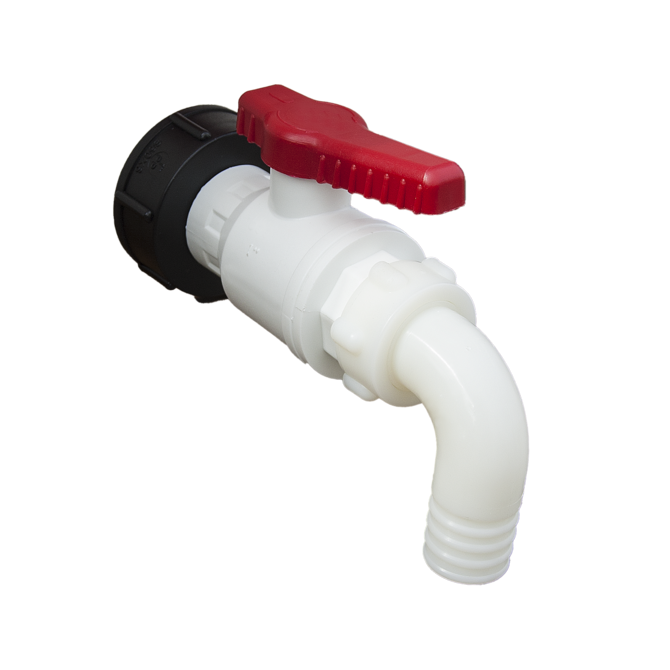

The Burkle IBC discharge valve with angle discharge is a robust ball valve designed for controlled liquid dispensing and hose connection from compatible IBC containers. The integrated 90° hose nozzle directs the liquid outlet downward for convenient filling and transfer, while the included sealing cap allows the hose connection to be closed when not in use.
The valve uses an S 60x6 (DIN 60) internal thread for connection to compatible IBC containers and includes a connection adapter with seal. The 1" internal-thread outlet and 30 mm external PA hose nozzle provide a practical connection for flexible hoses.

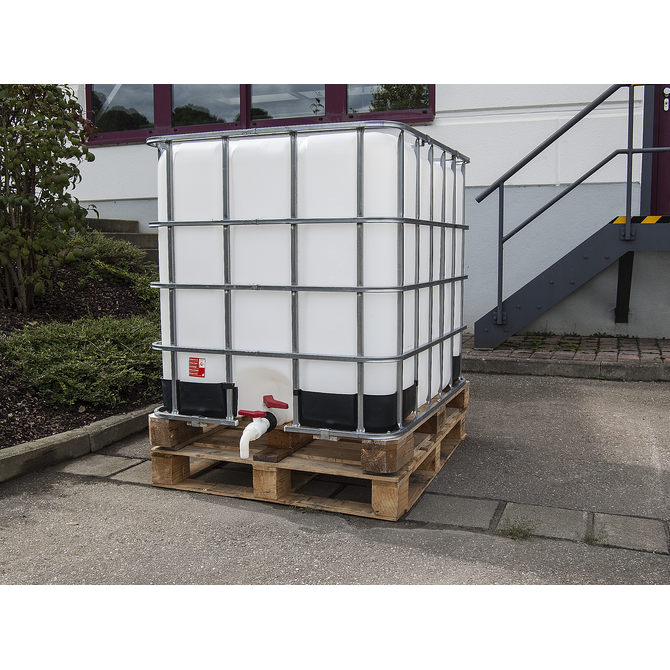

IBC tanks are commonly used for storing and transporting large volumes of liquid. The Burkle IBC discharge valve provides a dedicated valve and hose connection for more controlled transfer from the container.
The angled outlet directs the hose connection through approximately 90°, providing a practical arrangement when the hose needs to run downward from the IBC outlet. This can simplify hose routing when filling containers or transferring liquid from an elevated IBC.
Burkle specifies this valve for commonly used European IBC containers with compatible connection threads. With the appropriate thread, it can also be installed directly onto an existing IBC discharge valve when the original valve is leaking or faulty.
| Manufacturer | Burkle |
| Product | IBC discharge valve with angle discharge |
| SKU | 0534-0002 |
| Valve design | Ball valve |
| IBC connection | S 60x6 (DIN 60) |
| IBC connection configuration | Internal thread |
| Outlet connection | G 1" internal thread |
| Outlet type | 90° hose nozzle |
| Hose nozzle outside diameter | 30 mm |
| Hose nozzle material | PA (polyamide) |
| General material | PP (polypropylene) |
| Further material | NBR (nitrile butadiene rubber) |
| Colour | White |
| Maximum operating pressure | 10 bar at 20 °C |
| Maximum operating temperature | 80 °C |
| Flow rate | Low flow rate |
| Valve positioning | Tap can be freely positioned |
| Dimensions | 192 L × 72 W × 133 H mm |

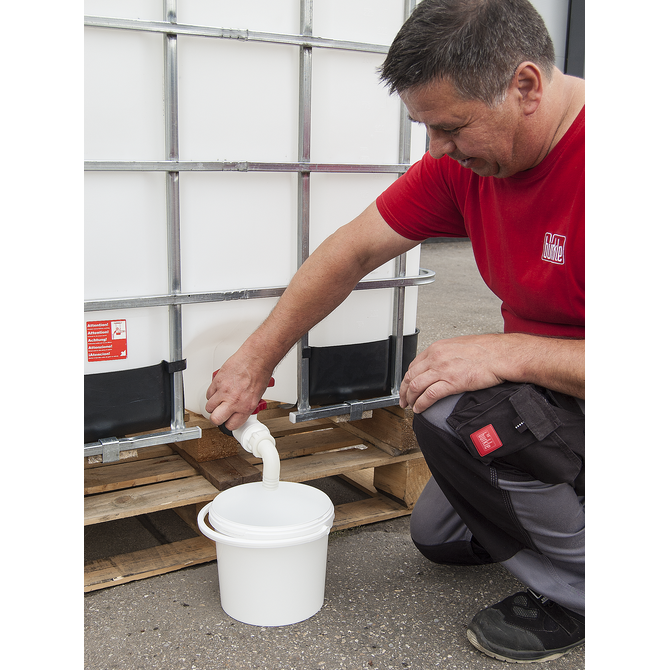

The discharge outlet incorporates a 90° hose nozzle with a 30 mm outside diameter. The angled configuration directs the hose downward, which can be useful when liquid needs to be transferred from an IBC into a vessel positioned below the outlet.

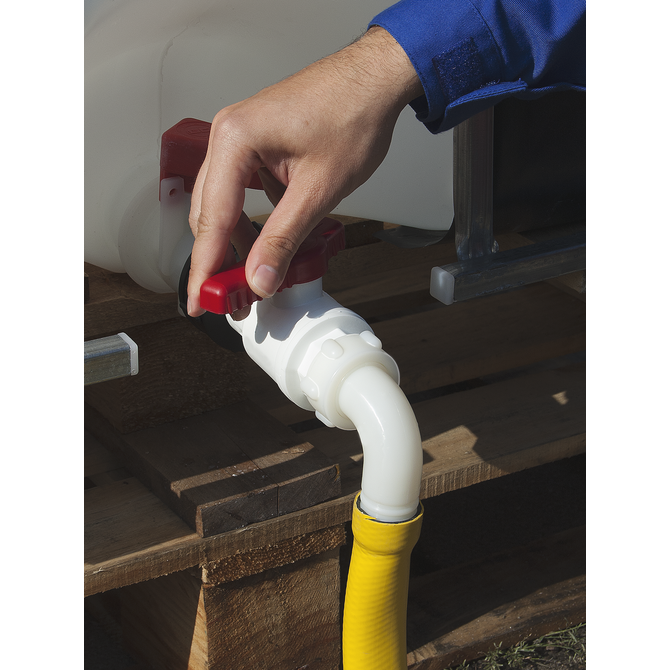

A sealing cap is included with the valve. Burkle states that the hose can be closed with the enclosed sealing cap when the outlet is not being used.
The valve uses an S 60x6 (DIN 60) internal thread at the IBC connection. Burkle identifies S 60x6 external and 1" external threads as standard connection options for its IBC discharge valves and states that the valves are designed for commonly used European IBC containers.
The supplied connection adapter and seal provide the interface between the IBC outlet and the discharge valve.
Where the appropriate thread is available, Burkle states that the discharge valve can also be screwed directly onto the original discharge valve already installed on an IBC tank. This provides an option for replacing a leaking or faulty original valve and for residual emptying of the container.
The 0534-0002 uses a ball valve to control liquid flow. Burkle specifies a low flow rate and states that the tap can be freely positioned, allowing the outlet orientation to be adjusted to suit the container and hose arrangement.
The valve is therefore suited to controlled dispensing, hose-based liquid transfer and residual emptying from compatible IBC containers.
For this specific IBC discharge valve, Burkle specifies a maximum operating pressure of 10 bar at 20 °C and a maximum operating temperature of 80 °C.
These ratings apply to the discharge valve according to the manufacturer's specifications. The pressure and temperature limits of the complete IBC, hose, fittings and liquid-handling system must also be considered when determining safe operating conditions.
The discharge valve uses polypropylene (PP) as the general material, with polyamide (PA) and NBR also specified by Burkle. The hose nozzle is made from PA, while NBR is used as a sealing material.
For chemical applications, verify compatibility between the liquid and all wetted materials before use. Chemical resistance depends on the specific liquid, concentration, temperature and exposure conditions.
| Application | Benefit |
|---|---|
| IBC liquid dispensing | Provides a dedicated valve and hose outlet for controlled liquid transfer. |
| Downward hose routing | 90° hose nozzle directs the connection downward from the IBC outlet. |
| IBC residual emptying | Can be used with compatible IBC connections to assist with residual liquid removal. |
| Hose-based liquid transfer | 30 mm external hose nozzle provides a connection point for suitable flexible hoses. |
| IBC valve replacement | Can be installed onto a compatible existing IBC discharge valve when the required thread is available. |

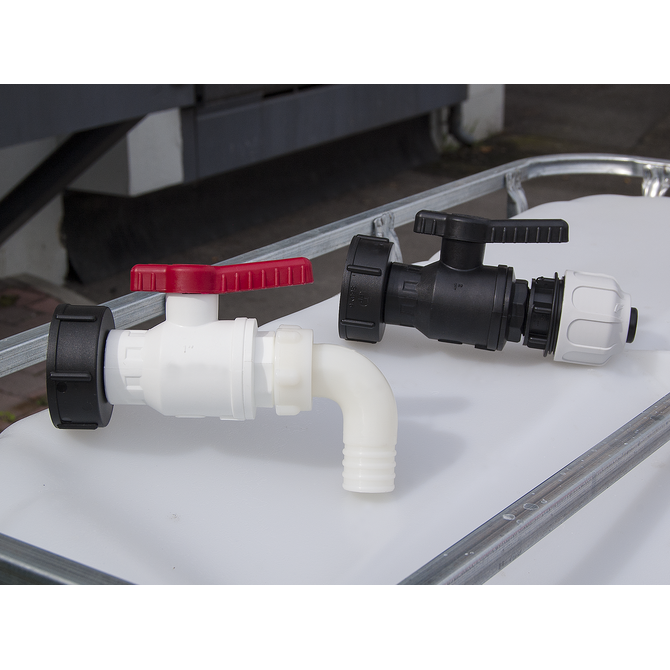

Burkle offers two closely related IBC discharge valve configurations:
| Feature | 0534-0002 | 0534-0001 |
|---|---|---|
| Outlet design | 90° hose nozzle | Hose screw connection |
| Hose connection | 30 mm external PA nozzle | 25 mm hose screw connection |
| Sealing cap | Included | Not the same outlet design |
| Best suited for | Downward hose routing and conventional flexible hose connection | Quick hose attachment without a separate hose clamp |
The valve uses an S 60x6 (DIN 60) internal thread for connection to a compatible IBC outlet.
The 90° hose nozzle has an external diameter of 30 mm and is made from PA (polyamide).
Yes. The sealing cap is included and can be used to close the hose connection when it is not being used.
The manufacturer specifies a maximum operating pressure of 10 bar at 20 °C.
The manufacturer specifies a maximum operating temperature of 80 °C.
Yes, provided the appropriate thread connection is available. Burkle states that the discharge valve can be screwed directly onto the original IBC discharge valve when the required thread is compatible.
The 0534-0002 uses a 90° hose nozzle and includes a sealing cap. The 0534-0001 uses an integrated hose screw connection designed to accept a wide range of hoses without an additional hose clamp.
If you are unsure whether your IBC outlet matches the S 60x6 connection or whether your hose is compatible with the 30 mm hose nozzle, contact Cambridge Environmental Products for assistance.
