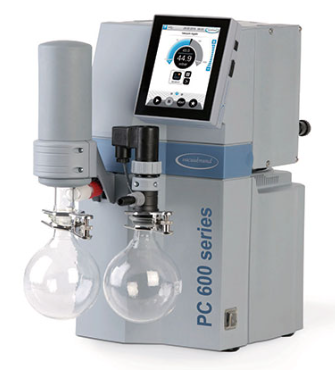

BrandTech™ VACUUBRAND™ PC 610 VARIO Select Electronic Control Chemistry Pump
SKU: 20737153~ea
BrandTech™ VACUUBRAND™ PC 610 VARIO Select Electronic Control Chemistry Pump
SKU: 20737153~ea
Regular price$21,549.06 CAD
$21,549.06 CAD
/
$21,549.06 CAD
- Secure payments
BrandTech™ VACUUBRAND™ PC 610 VARIO Select Electronic Control Chemistry Pump
VACUUBRAND™ PC 610 VARIO Select Electronic Control Chemistry Pump is an excellent choice for supporting controlled evaporation or drying processes. The PC 610 select can be used for many common solvents.
Easy-to-use, the VACUU·SELECT® controller provides a touch screen, application-based interface. Creating a new application is as easy as swiping a finger to drag-and-drop application building blocks. These pumps are excellent choices for supporting controlled evaporation or drying processes.
Product Features:
-
VACUU·SELECT® controller
Controller has a touch screen interface and predefined applications. It is easy-to-use and the modification of existing applications, or creation of new applications, is simple with drag-and-drop editing. -
Electronic Control
A solenoid valve, operated by the new VACUU·SELECT controller, provides precise two-point electronic control for important applications, maintaining vacuum levels between pre-set tolerances. -
No Oil Changes
These vacuum pumps utilize diaphragm vacuum technology. The totally dry operation eliminates the misting, handling and disposal of contaminated waste associated with rotary vane pumps. No oil to change or monitor! -
Reduced Maintenance
Typical diaphragm lifetimes are well in excess of 15,000 hours of use before replacement - that's years in most applications, minimizing downtime and service costs. When it is finally time for service, their unique design eliminates tedious, trial-and-error stroke length recalibration. -
Improved Productivity
VACUUBRAND® pumps are engineered for performance, with flow rates as much as 40% higher at working vacuum level than competitive pumps with similar free air capacity ratings. Higher flow rates mean reduced process times and higher throughput. -
Reliability
All VACUUBRAND® pumps and systems must pass rigorous product testing before leaving the factory. It's your assurance of a reliable pump.
Technical Data | PC 610 VARIO Select |
Vacuum Controller |
Vacuu-Select |
Number of Heads/Stages |
4/3 |
Max. pumping speed at 50/60 Hz |
3.4/3.8m3/h |
Max. pumping speed at 50/60 Hz |
2.0/2.2cfm |
Ultimate Vacuum (abs.) |
1.5/1.1mbar/torr |
Ultimate Vacuum (abs.) with gas ballast | 3/2.2mbar/torr |
Ambient Temperature Range (operation) |
10 - 40°C |
Ambient Temperature Range (storage) |
-10 - 60°C |
Max. Back Pressure (abs.) |
1.1bar |
Inlet Connection |
Hose Nozzle DN 8-10mm |
Outlet Connection |
Hose Nozzle DN 8-10mm |
Coolant Connection | 2 x Hose Nozzle DN 6-8mm |
Rated Motor Power |
0.25kW |
Rated Motor Speed at 50/60 Hz |
1500/1800min-1 |
Protection Class |
IP 40 |
Dimensions (L x W x H) |
419 x 243 x 457mm |
Weight |
20.4kg |
Noise Level at 50 Hz, typ. |
45dBA |
