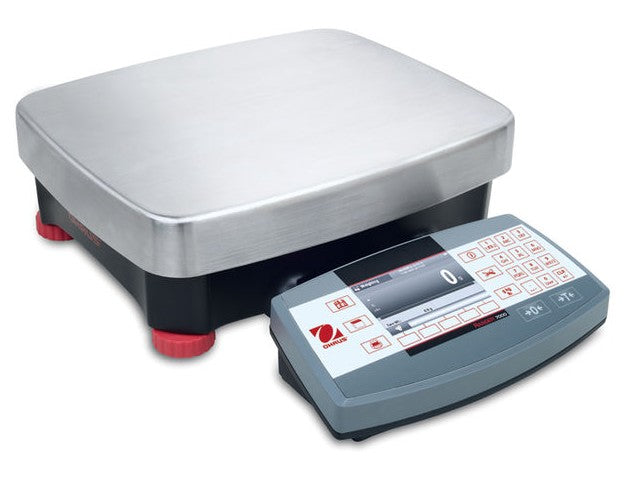

Ohaus R71MD60 Ranger 7000 - 60kg x 1.0g Legal For Trade Bench Scale
Ohaus R71MD60 is fast, flexible, and designed for durability in heavy duty industiral use applications. Featuring 20 advanced weighing modes, RS-232 + USB communication and GLP/GMP data output with a Real Time clock. Fast, 1 second stabilization time, weigh below hook and NTEP/Measurement Canada Approval make Ranger 7000 ideal for many applications where compliance is important.
Designed with a 4.3" (109 mm) Full-color WQVGA graphic display - making operation fast and easy, built into a sealed metal indicator. Sturdy modular design and die-cast housing boasts an IP54 rating. Featuring a 30 item library for formulation data, and a 300 item memory for weighing data.
Advanced Weighing Modes:
- Parts Counting
- Percent Weighing
- Dynamic Weighing
- Display Hold
- Filling
- Formulation
- Density Weighing
- Differential Weighing
- Sieve Analysis
-
Advanced Checkweighing with LED lights + audible alarm settings
Specifications:
Capacity |
60 kg |
Readability |
1.0 g |
Certified Readability |
10.0 g |
Pan Size |
14.8 x 12.2" / 377 x 311 mm |
Capacity x Readability |
60 kg x 0.001 kg |
Maximum Displayed Resolution |
1:75,000 |
Certified Capacity x Readability |
60 kg x 0.01 kg |
Legal for Trade |
NTEP Certified; Measurement Canada Approved Class III (AM-5940) |
Certified/Approved Resolution |
1:7,500 |
Linearity/Repeatability |
±2d |
Weighing Units |
kg, g, lb, oz, lb: oz |
Application Modes |
Weighing, Parts Counting, Percent Weighing, Dynamic Weighing (Display Hold) Filling, Formulation, Differential Weighing, Density Weighing |
Display |
4.3" TFT Graphic LCD |
Keypad |
8 function, 5 quick, 12 numeric membrane keys |
Construction |
Stainless Steel Platform, Die-Cast Housing |
Protection |
IP54 |
Stabilization Time |
1 second |
Zeroing Range |
2% or 10% of Capacity |
Safe Overload Capacity |
150% of Capacity |
Interface |
Standard RS232, USB Device, USB Host Optional Ethernet, 2nd RS232, Remote Base, 2 In/4 Out digital I/O |
Power |
100-240 VAC/ 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional) |
Display Dimensions (W x D x H) |
10.5 x 4.6 x 2.8" / 267 x 118 x 72 mm |
Base Housing Dimensions (W x D x minH) |
14.9 x 12.2 x 5" / 377 x 311 x 128 mm |
Platform Dimensions (W x D x H) |
14.9 x 12.2 x 1.9" / 377 x 311 x 48 mm |
Net Weight |
21.8 lb / 9.9 kg |
Shipping Dimensions |
29.5 lb / 13.4 kg |
Calibration |
Span or Linear |
Battery Life |
12 hours of continuous use |
Warranty |
12 Months |
Additional Literature:
Ranger 7000 Series Literature
Ranger 7000 Series Manual
Measurement Canada Approval AM-5940
