Ohaus R71MD15 Ranger 7000 - 15kg x 0.2g Legal For Trade Bench Scale

SKU: R71MD15~ea

SKU: R71MD15~ea

Item(s) currently out of stock. General estimated lead time for most products is 2-3 weeks, due to shipping delays. Please contact us at 1-800-535-3751 or sales@ceproducts.ca for an estimated lead time on any product. We're always happy to help!

Get a Quote

Description

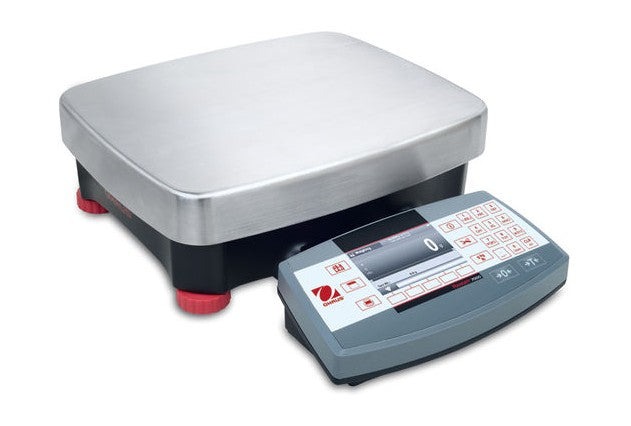

Ohaus R71MD15 Ranger 7000 - 15kg x 0.2g Legal For Trade Bench Scale

Ohaus R71MD15 is fast, flexible, and designed for durability in heavy duty industiral use applications. Featuring 20 advanced weighing modes, RS-232 + USB communication and GLP/GMP data output with a Real Time clock. Fast, 1 second stabilization time, weigh below hook and Legal for Trade certification make Ranger 7000 ideal for cannabis production and many other applications.

Designed with a 4.3" (109 mm) Full-color WQVGA graphic display - making operation fast and easy, built into a sealed metal indicator. Sturdy modular design and die-cast housing boasts an IP54 rating. Featuring a 30 item library for formulation data, and a 300 item memory for weighing data.

 Advanced Weighing Modes:

  • Parts Counting
  • Percent Weighing
  • Dynamic Weighing
  • Display Hold
  • Filling
  • Formulation
  • Density Weighing
  • Differential Weighing
  • Sieve Analysis
  • Advanced Checkweighing with LED lights + audible alarm settings



Specifications:

Capacity

15 kg

Readability

0.2 g

Certified Readability

2.0g

Pan Size

14.8 x 12.2" / 377 x 311 mm

Capacity x Readability

15 kg x 0.0002 kg
15,000 g x 0.2 g
30 lb x 0.0005 lb
480 oz x 0.01 oz

Maximum Displayed Resolution

1:75,000

Certified Capacity x Readability

15 kg x 0.002 kg
15,000 g x 2 g
30 lb x 0.005 lb
480 oz x 0.1 oz

Certified/Approved Resolution

1:7,500

Linearity/Repeatability

±2d

Weighing Units

kg, g, lb, oz, lb: oz

Application Modes

Weighing, Parts Counting, Percent Weighing, Dynamic Weighing (Display Hold)

Filling, Formulation, Differential Weighing, Density Weighing

Display

4.3" TFT Graphic LCD

Keypad

8 function, 5 quick, 12 numeric membrane keys

Construction

Stainless Steel Platform, Die-Cast Housing

Protection

IP54

Stabilization Time

1 second

Zeroing Range

2% or 10% of Capacity

Safe Overload Capacity

150% of Capacity

Interface

Standard RS232, USB Device, USB Host

Optional Ethernet, 2nd RS232, Remote Base, 2 In/4 Out digital I/O

Power

100-240 VAC/ 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional)

Display Dimensions (W x D x H)

10.5 x 4.6 x 2.8" / 267 x 118 x 72 mm

Base Housing Dimensions

(W x D x minH)

14.9 x 12.2 x 5" / 377 x 311 x 128 mm

Platform Dimensions

(W x D x H)

14.9 x 12.2 x 1.9" / 377 x 311 x 48 mm

Net Weight

21.8 lb / 9.9 kg

Shipping Dimensions

29.5 lb / 13.4 kg

Calibration

Span or Linear

Battery Life

12 hours of continuous use

Warranty

12 Months






Additional Literature:

Ranger 7000 Series Literature
Ranger 7000 Series Manual
Measurement Canada Approval AM-5940
