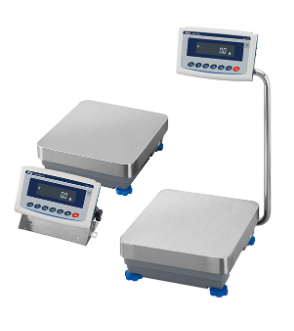

A&D GX-32001LD - 6.2kg x 0.1g / 32kg x 1g Dual Range High Capacity Washdown Precision Scale
A&D GX-32001LD is a dual range high capacity washdown precision scale that provides the precision of a laboratory balance with the durability of a washdown bench scale. With advanced features from the A&D Apollo family, it offers efficient, accurate weighing in demanding conditions. Weigh large or heavy materials with ease and confidence.
Features:
- Swing-arm display stand
- IP65 dust and waterproof
- Impact shock detection (ISD)
- RS-232C (D-Sub 9-pin) and USB (Mini-B) interfaces as standard
- Universal Flexi Coms (UFC)
- AD-Just – Automatic self-sensitivity adjustment
- Automatic level detection & warning
- Automatic precision assessment (APA)
- Automatic minimum weight calculation and implementation
- Flow rate display (FRD)
- Tare and data memory
- User access control (UAC) and key lock
Specifications:
| Capacity |
6.2kg / 32 kg
|
| Resolution |
0.1g / 1g |
| Linearity |
±0.2g / ±1g
|
| Repeatability |
0.1g / 0.5g |
Min. Unit Weight
|
140 g |
Stabilization Time
|
Approx. 1.5 seconds |
| Display Refresh Rate |
5 times/second, 10 times/second, or 20 times/second |
| Operating Environment |
5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) |
| Power Supply / Consumption |
AC adapter / approx. 30 VA |
| Weighing pan size |
384 × 344 mm |
| External Dimensions |
Swing-arm type - 372 × 615 × 130 mm
|
| Weight |
Approx. 17 kg |
IP Rating
|
IP65 |
Additional Literature:
A&D Apollo GX-L Series - Brochure
A&D Apollo GX-L Series - Manual
A&D Apollo GX-L Series - Quick Start Guide
