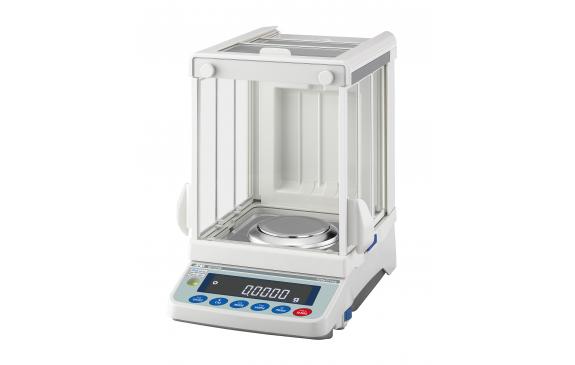

Apollo Series - A&D GF-124A - 122g x 0.0001g Advanced Analytical Balance with External Calibration

Fast, accurate and packed full of features, A&D GF-124A is ideal for applications where both precision and durability is needed. Built around the Smart Super Hybrid Sensor, which allows fast stabilization times of up to 1 second. Housed in die-cast aluminium with a stainless steel weigh pan and an easy to assemble anti-static breeze break. Features 6 straight forward operating keys, large backlit display, and ergonomic leveling adjustment. GLP/GMP/GCP compliant with full calibration reports.

Features:

Electronically Controlled Load (ECL)

Initially does a self-diagnostic before performing an internal repeatability test without an external weight in < 1.5 minutes.

Dia-Check is the diagnostic result that validates if the balance critically passes or fails.
SD is standard deviation that allows for daily precision check - ideal for S.O.P’s
QuickMin-S determines minimum sample weight in any given environment.
Min-S Alert – Alerts user to ensures they are operating within USP41 compliance.

Impact Shock Detection (ISD)

Impact-Alert visually & audible indicates the magnitudes of impact shocks.
Shock-log documents date, time, and shock level.

Flow Rate Display (FRD)

Streamline & improve filling or dosing accuracy & precision.

FR-Cal calculates, displays/outputs the mass or volume flow rate by entering density.
FR-Compare is a comparator which provides feedback if the flow rate is within limits.
FR-Secure stores tare values in our non-volatile memory if application was disrupted.

Specifications:

Capacity	122 g
Readability	0.0001 g
Repeatability (std. deviation)	0.0001 g
Minimum weight (typical)	120 mg
Linearity	±0.0002 g
Weighing pan size	Ø90 mm
Stabilization Time (when set to FAST under a good environment)	Approx. 1.5 sec (100 g)
Sensitivity drift	±2 ppm/°C (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF)
Operating environment	5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)
Display refresh rate	5 times/sec, 10 times/sec or 20 times/sec
Units of measure	mg, g, oz, ozt, ct, mom, dwt, gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit
Counting Mode - Minimum unit mass	0.0001 g
Counting Mode - Number of samples	5, 10, 25, 50 or 100 pieces
Percent Mode - Minimum 100% reference mass	0.0100 g
Percent Mode - % readability	0.01%, 0.1% or 1% (depends on the reference mass stored)
Communication interface	RS-232C and USB
Calibration	External Calibration
Applicable calibration weight value	50 g 100 g
External dimensions	259mm (W) × 358mm (D) × 332mm (H) (including the large glass breeze break)
Net weight	Approx. 7 kg
Power supply / consumption	AC adapter / approx. 30 VA
Warranty	5 Year

Additional Literature:

Datasheet
Datasheet French
Instruction Manual
Communication Manual
