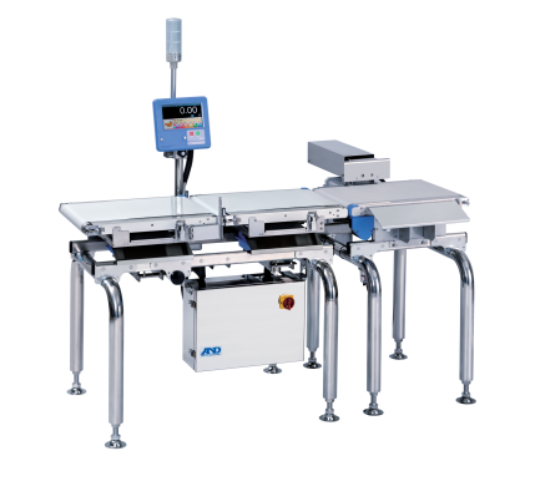

A&D 6,000g In-Motion Checkweigher - AD-4961-6K-3050

The essential checkweigher, AD-4961-6K-3050 offers high repeatability for a system in this class. With a 1 g +/- repeatability, and speeds of up to 145 Pieces per minute. Protected from dust and water to IP65 standards, the hygienic design is complemented by standard food grade belting.

Unique design allows the system to be customized to fit your exact needs without taking up unnecessary space or slowing down your line. Perfect for products such as bulk protein powder cannisters and applications in food & beverage, meat trays.

Easy to assembly modular design consists of 4 units infeed conveyor unit, weighing conveyor unit, control unit & base unit. 7 inch display utilizes a high visibility touch panel color LCD with friendly Graphic User Interface (audio guidance support function included). By inputting throughput (products per minute) or belt speed (m.min), optimal weighing conditions can be automatically set.

AD-4961-6K-3050 stores up to 1000 products, and allows quick and easy uploading of product images to the checkweigher from a USB flash drive for quick product identification. Products can be divided into 10 different groupings, with up to 100 products able to be stored in each group.

Capacity: up to 6000g
Resolution: .1g
Repeatability: 1g +/-
Throughput: up to 145 ppm
Compatible with Pusher Rejector

Specifications:

Model	AD-4961-6K-3050
Capacity	600 0g \| 13.2 lbs
Resolution	0.1 g
Accuracy	1.0 g +/-
Max. Throughput	145 pcs/min
Conveyor Belt width	300mm \| 11.8 in
Conveyor belt length	500mm \| 19.6 in
Conveyor Belt Material	Urethane
Belt Speed	10 ~ 80 m/min \| 33 ~ 262ft/min
Max. Product Dimensions	Length: 80 ~ 450 mm \| 3 ~ 17.7 in Width: 300mm \| 13 in
Weighing Sensor	Strain gauge load cell
Display	7" color touch screen
Number of product registration	1,000 items (10 groups x 100 items)
Comunication Protocol	Modbus TCP / RTU \| RS-232 / 485 \| TCP/IP (Postscript Printer) \| USB
External input	4 contact inputs
External output	8 24v outputs
IP Rating	IP65
Operational Temperature and humidity	-5 ~ 40 Celcius Humidity below 85%
Power Supply	Single Phase AC100-240V (+10% / -15%) 50/60 Hz 180 VA
External Dimensions	Length: 1005mm / Width : 736mm / Height: 720-870 mm \| Length: 39.5 in / Width: 28.9 in / 28.3 – 34.2 in
Weight	Aprox. 50 kg / 110 lbs
Construction Material	Stainless Steel

Optional Add Ons:

Part number	Description
AD4961-01	Display Stand
AD4961-02	Tower light
AD-4961-6K-MNT	6K Maintenance Kit
AD-4961-LEG	CW LEG EXTENSION KIT up to 40"

Additional Literature:
AD-4961 Series Brochure
A&D Inspection Family Brochure
