5°C – 500°C Ceramic Hot Plate - 7" x 7"

SKU: e-G51HP07C~ea

SKU: e-G51HP07C~ea

Item(s) currently out of stock. Estimated lead time for most products is 3-4 weeks. Please contact us at 1-800-535-3751 or for an estimated lead time on any product. We're always happy to help!

Get a Quote

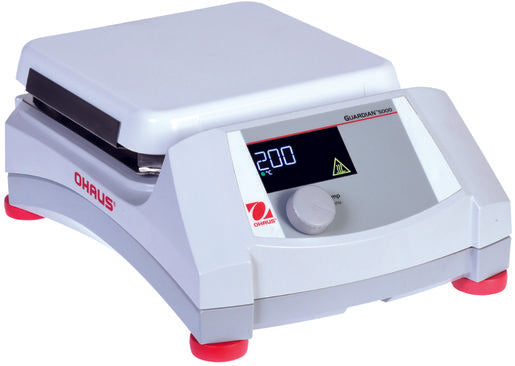

Ohaus Guardian 5000 Series e-G51HP07C Ceramic Hot Plate
Ohaus Guardian 5000 hot plate, ideal for academic, institutional and research applications. Features SmartHousing, which remains cool to the touch at all operating temperatures, is chemical resistant and designed to channel spills away from internal components. SafetyHeat protects your lab, using two independent safety sensors to monitor the electronics and shut off the heat before an over temperature event happens.
Function Heating
Capacity 15 L
Plate Construction Ceramic
Plate Size 7 in x 7 in (178 mm x 178 mm)
Temperature Range Ambient + 5°C – 500°C
Calibration Temperature calibration
Control Digital
Dimensions 4.8 in x 12.2 in x 8.8 in (122 mm x 309 mm x 223 mm)
Display Custom Backlit LCD
In-use cover Available as an Accessory
Net Weight 5.7 lb (2.6 kg)
Power 120V, 10A, 50/60Hz
Power Consumption 1,080 W
Safety Certification TUV
Working Environment 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing)
