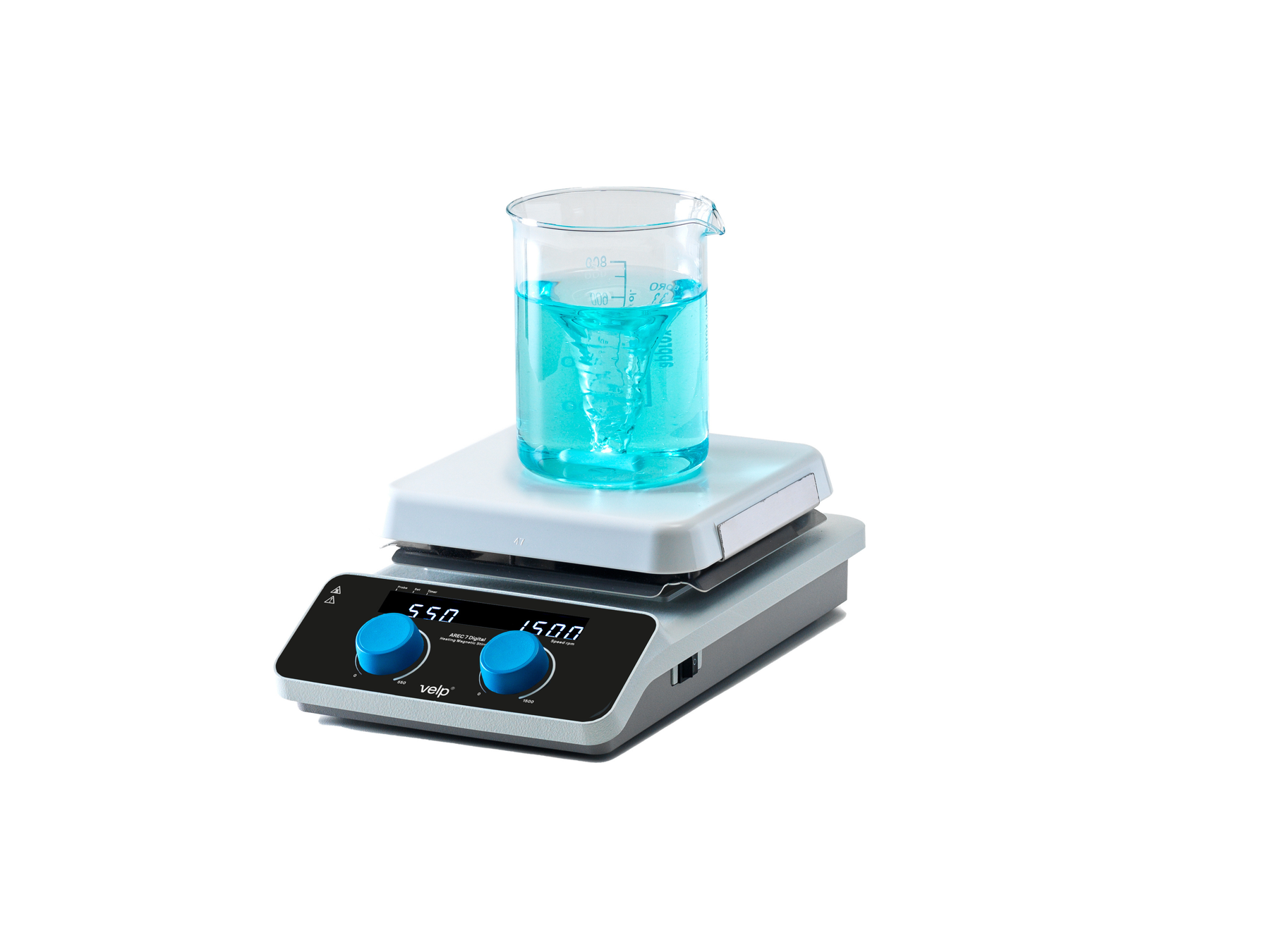

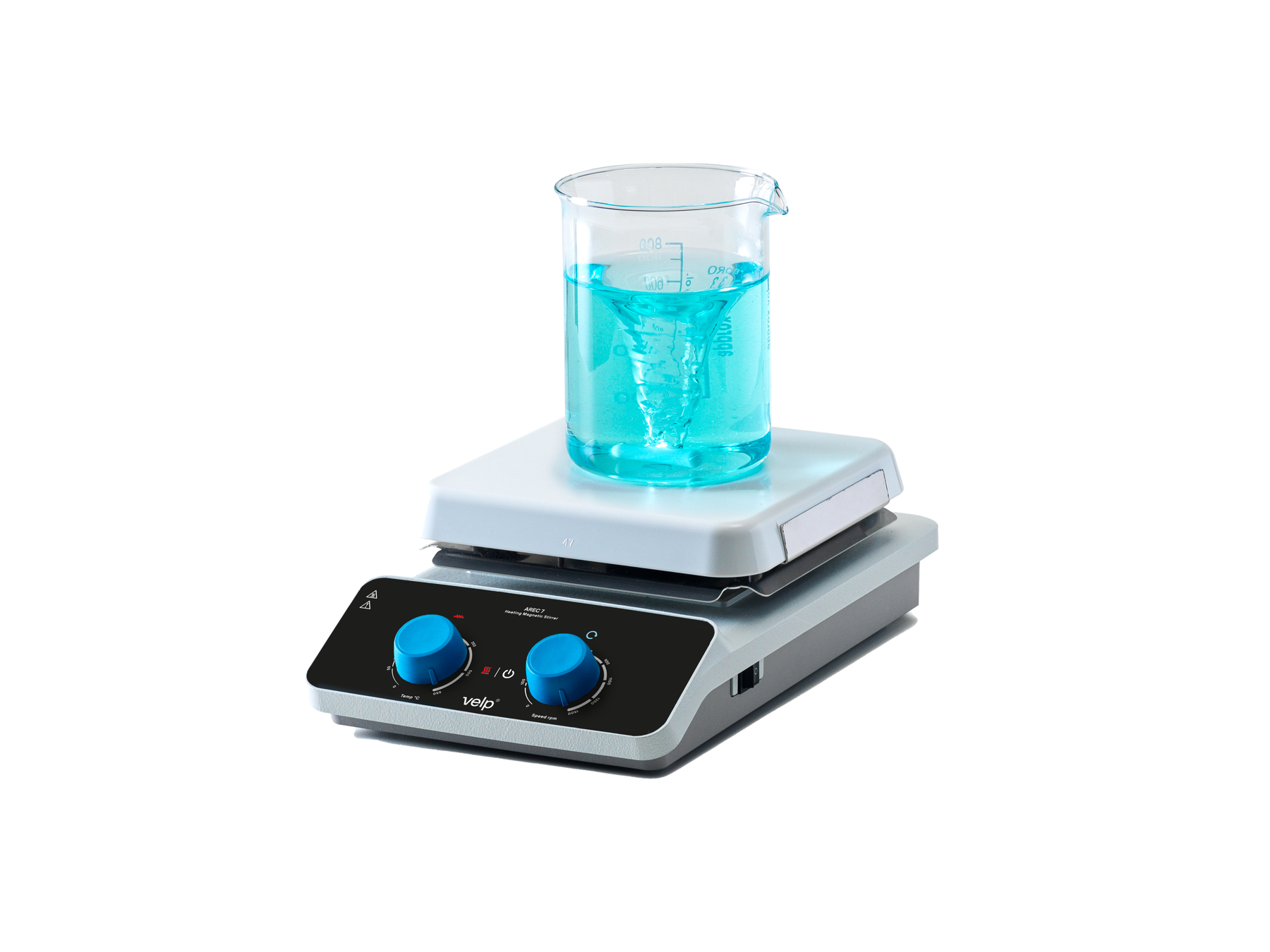

VELP AREC 7 Series Heating Magnetic Stirrers

The VELP AREC 7 Series are ceramic hotplate stirrers featuring a generous 7x7-inch surface, engineered for efficient heating and stirring from everyday lab applications to precise thermoregulation. Available in three variants, the analog AREC 7, the digital AREC 7 Digital, and the fully featured AREC 7 Advance, the series scales to meet the demands of any laboratory workflow. All three models share the same robust 180 x 180 mm ceramic top plate with exceptional chemical and scratch resistance, a brushless motor with SpeedServo™ torque compensation, and a heating range up to 550 °C. The AREC 7 Digital adds precise digital thermoregulation via Pt100, Pt1000, or VTF probe connection and a hot surface on-display warning. The AREC 7 Advance builds on this with programmable temperature and speed ramps, viscosity trend monitoring, auto-reverse, intermittent mode, a safety lock, and remote control via the VELP Ermes Cloud Platform over Wi-Fi. Designed and manufactured in Italy, the AREC 7 Series delivers reliability, safety, and performance for any heating and stirring application.

Features

All Models

• 180 x 180 mm (7x7-inch) ceramic top plate with exceptional chemical and scratch resistance and easy wipe-down cleaning
• Brushless motor with SpeedServo™ technology maintains constant stirring speed as viscosity changes
• Heating range up to 550 °C for a wide range of thermal applications
• Hot top warning (illuminated icon or on-display message) when surface exceeds 50 °C, even when heating is off
• Aluminum body with technopolymer enclosure for durable, long-lasting construction
• 800 W power input

AREC 7 Digital and Above (F20510681, F20510682)

• Digital user interface for precise, repeatable speed and temperature setting

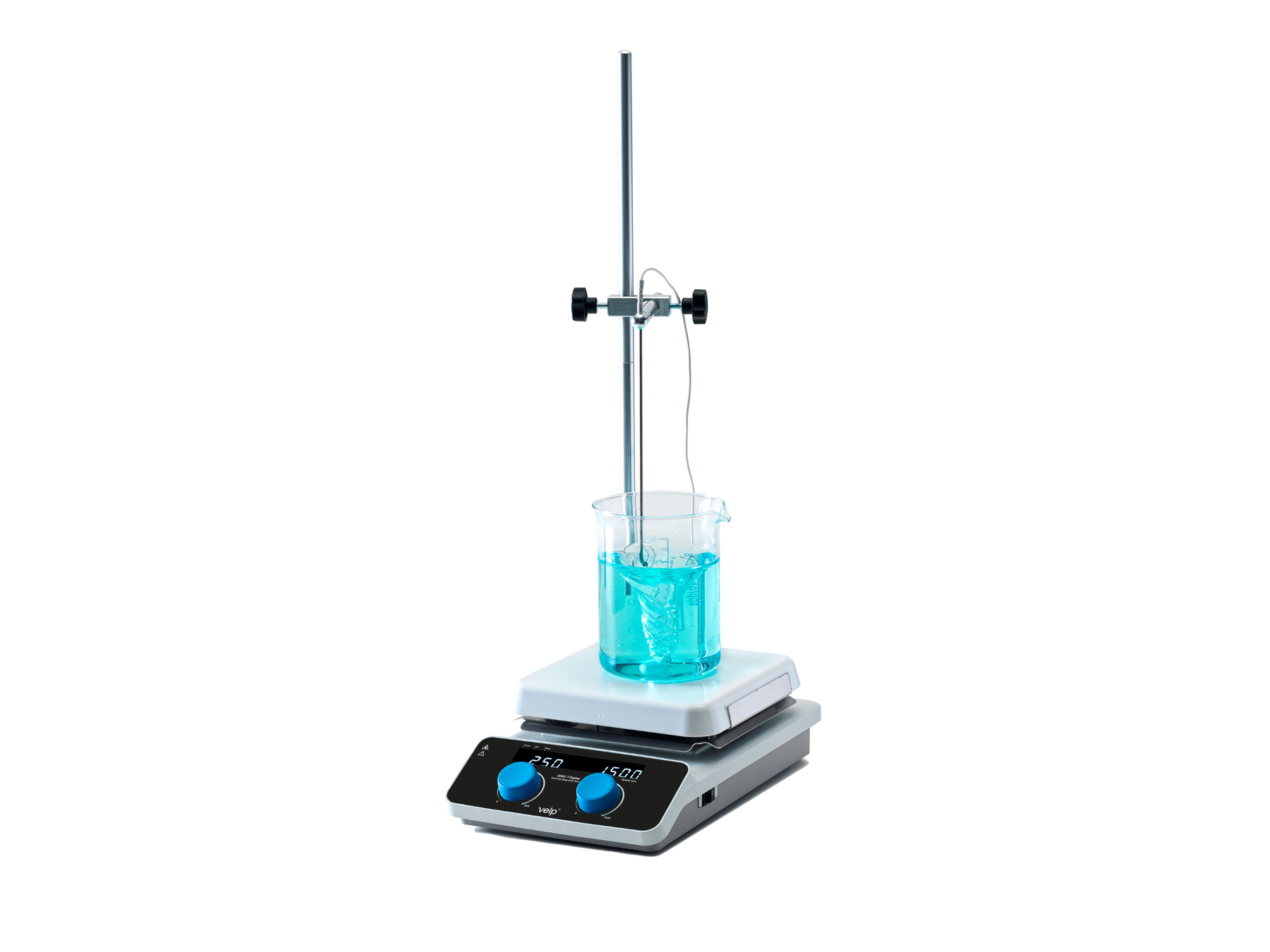

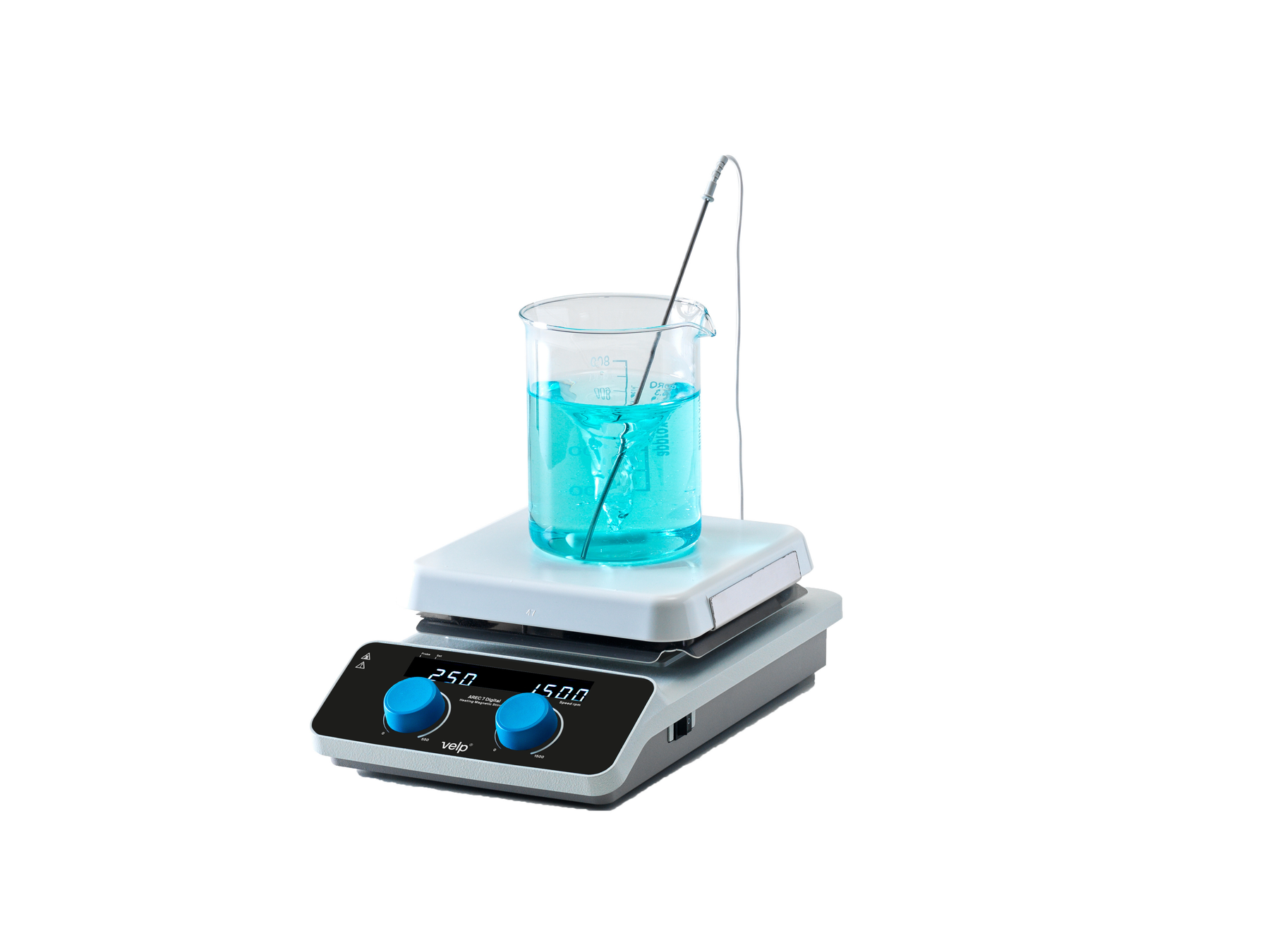

• Pt100 and Pt1000 external probe connection for medium thermoregulation accuracy of ±1.0 °C (range: room temp. to 350 °C)

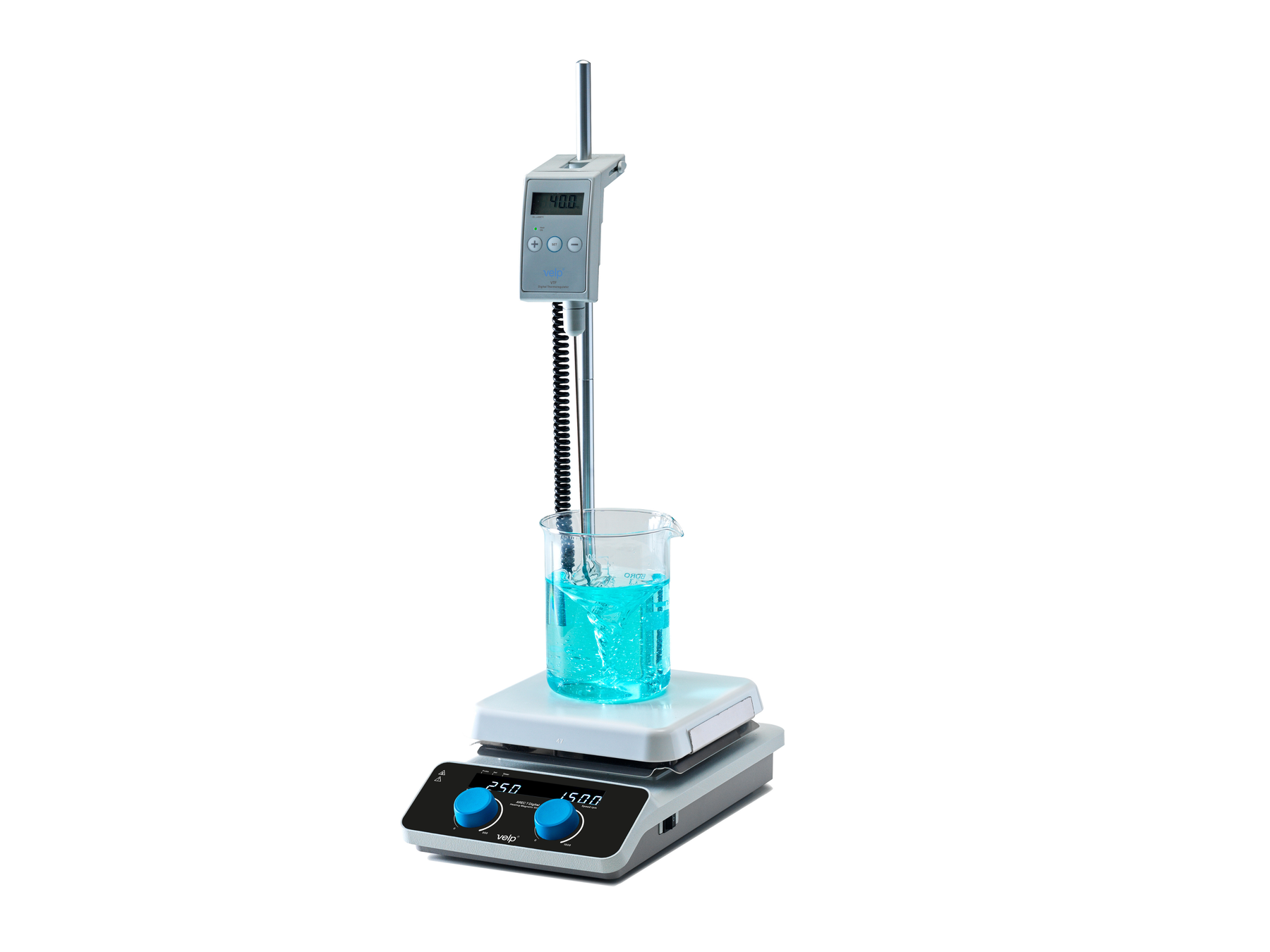

• VTF Digital Thermoregulator compatible for thermoregulation accuracy of ±0.5 °C (range: room temp. to 300 °C)
• Hot surface warning displayed on screen above 50 °C

AREC 7 Advance Only (F20510682)

• Programmable temperature and speed ramps with up to 9 temperatures and 9 speeds
• Viscosity trend measurement (1 minute to 99 hours 59 minutes) for real-time sample monitoring
• Timer (1 second to 99 hours 59 minutes) for unattended operations
• Auto-reverse (5 seconds to 99 hours 59 minutes) for improved mixing
• Intermittent mode for pulsed stirring workflows
• Settable rotation direction (clockwise and counterclockwise)
• Safety lock to prevent unintentional changes during a run
• Wi-Fi connectivity for remote control and monitoring via the VELP Ermes Cloud Platform
• USB-C interface for data transfer and PC control via ControllerSoft
• Tempered glass panel for enhanced visibility and chemical resistance
• Extended stirring volume up to 20 L at 30-1700 rpm

Specifications

Documentation:

Brochure

Manual
