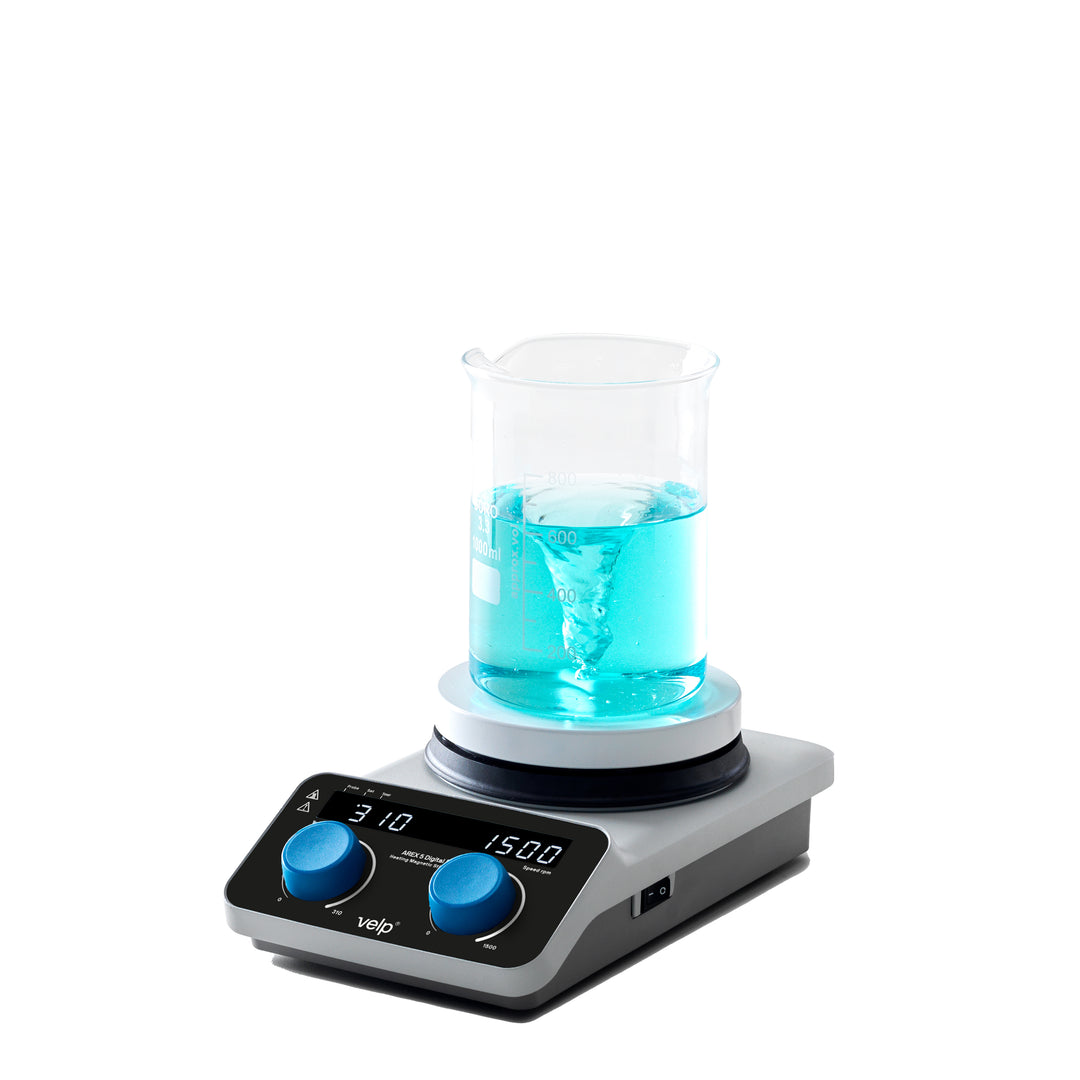

VELP ARE 5 / AREX 5 Series Heating Magnetic Stirrers

The VELP ARE 5 / AREX 5 Series are best-selling heating magnetic stirrers engineered to deliver powerful, reliable heating and stirring across a wide range of laboratory applications. Available in four variants spanning entry-level to advanced, the series scales from the straightforward analog ARE 5, through the analog AREX 5 and digital AREX 5 Digital, up to the fully featured AREX 5 Advance, giving every lab the right level of capability for their work. All four models share the same compact footprint, brushless motor with SpeedServo™ torque compensation, 135 mm ceramic-coated or aluminum alloy top plate, and IP 42 protection. The AREX 5 Digital adds precise digital thermoregulation via Pt100, Pt1000, or VTF probe connection. The AREX 5 Advance goes further with programmable temperature and speed ramps, viscosity trend measurement, auto-reverse, intermittent mode, a safety lock, and remote control via the VELP Ermes Cloud Platform over Wi-Fi. Designed and manufactured in Italy, the ARE 5 / AREX 5 Series is a trusted platform for university, research, and industrial laboratories worldwide.

Features

All Models

• Brushless motor with SpeedServo™ technology maintains constant stirring speed as viscosity changes
• 135 mm top plate (CerAlTop™ ceramic coating on AREX models; aluminum alloy on ARE 5) for excellent heat transfer and chemical resistance
• Dual indicator hot top warning (illuminated icon or on-display message) when surface exceeds 50 °C
• Insulating disk protects internal electronic components from heat and chemical exposure
• Temperature range up to 310 °C
• IP 42 protection class
• Brushless motor for durable, low-maintenance performance
• 630 W power input

AREX 5 and Above (F20510570, F20510580, F20510584)

• CerAlTop™ ceramic-coated plate with superior resistance to chemicals and scratches
• VTF Digital Thermoregulator compatible for thermoregulation accuracy of ±0.5 °C

AREX 5 Digital and Above (F20510580, F20510584)

• Digital user interface with 1 °C temperature setting resolution
• Pt100 and Pt1000 external probe connection for medium thermoregulation accuracy of ±1.0 °C
• Digital speed and heating control for precise, repeatable working conditions
• Hot surface warning displayed on screen above 50 °C

AREX 5 Advance Only (F20510584)

• • Programmable temperature and speed ramps with up to 9 temperatures and 9 speeds
  • Viscosity trend measurement for real-time monitoring of sample behaviour
  • Timer (1 second to 99 hours 59 minutes)
  • Auto-reverse (5 seconds to 99 hours 59 minutes) for improved mixing
  • Intermittent mode for pulsed stirring workflows
  • Settable rotation direction (clockwise and counterclockwise)
  • Safety lock to prevent unintentional changes during a run
  • Wi-Fi connectivity for remote control and monitoring via the VELP Ermes Cloud Platform
  • USB-C interface for data transfer and PC control via ControllerSoft
  • Pt1000 probe compatible in addition to Pt100 and VTF
  • Tempered glass panel for enhanced visibility and chemical resistance

Specifications

Documentation:

Brochure

Manual
