MULTI-HS Digital Multi-Position Hot Plate Stirrer
SKU: F20510530

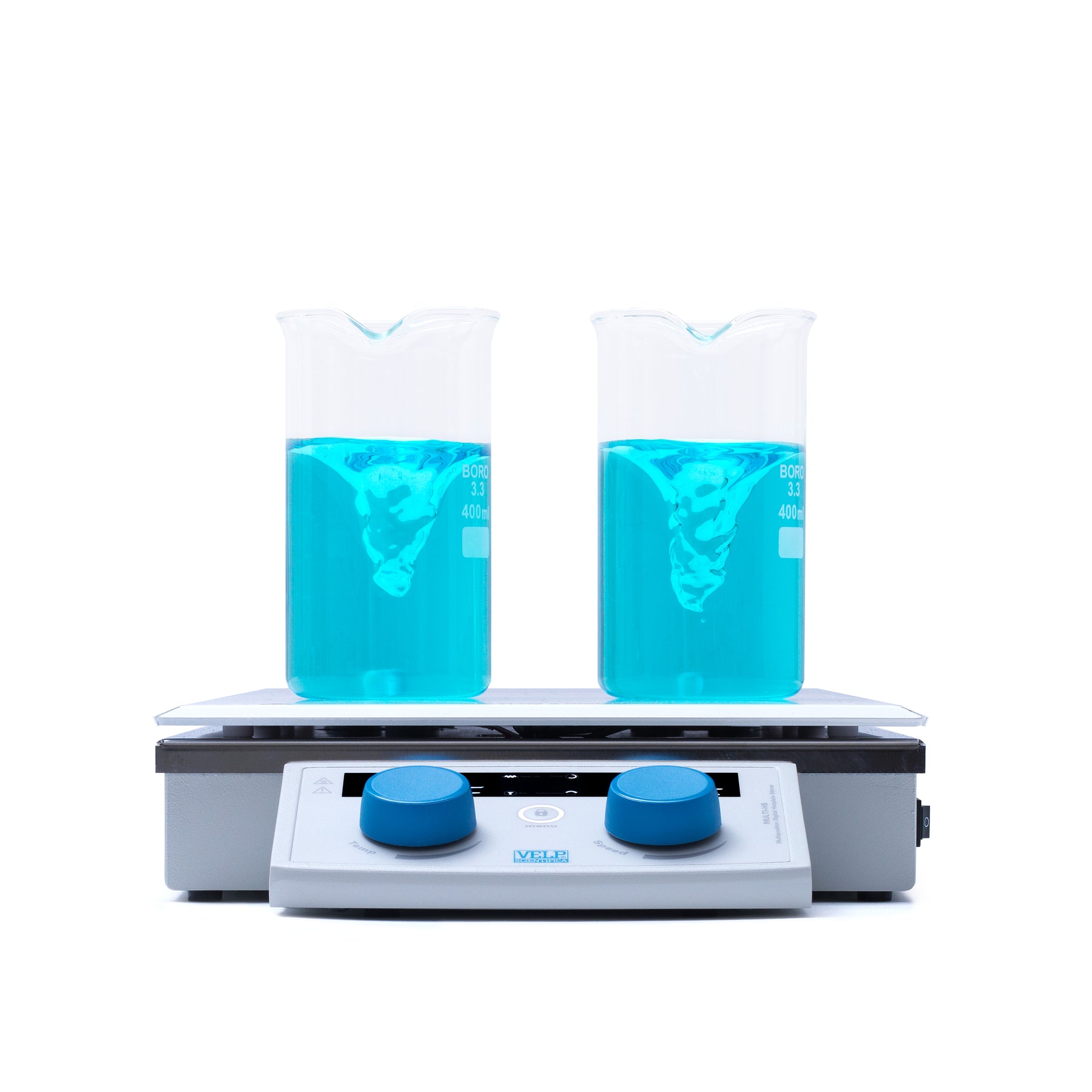

VELP MULTI-HS Digital Multi-Position Hot Plate Stirrer
The VELP MULTI-HS Digital series is a high-performance multi-position hotplate stirrer designed for simultaneous stirring and heating of multiple samples with precision and consistency. Available in 6-position and 15-position configurations, it delivers uniform temperature up to 120 °C across all positions, ensuring reproducible results in high-throughput laboratory workflows. Powered by VELP brushless motor technology, each position maintains constant speed independently, supported by SpeedServo™ feedback to compensate for viscosity changes during operation. The durable CerAlTop™ plate provides excellent heat distribution, chemical resistance, and easy cleaning, making it ideal for continuous laboratory use. A user-friendly digital interface allows full control of speed, temperature, timer, and auto-reverse functions, enabling unattended operation with maximum reliability. Designed and manufactured in Italy, the MULTI-HS series is a dependable solution for laboratories requiring efficient, parallel sample processing.
Features
- Simultaneous stirring and heating across multiple positions for high-throughput workflows
- Available in 6-position (MULTI-HS 6) and 15-position (MULTI-HS 15) configurations
- Uniform temperature distribution up to 120 °C across all positions
- VELP brushless motor technology ensures long life and consistent performance
- Independent stirring positions with dedicated motors for each sample
- SpeedServo™ system maintains constant speed even with viscosity changes
- Digital interface with intuitive controls for speed, temperature, timer, and settings
- Programmable timer (up to 99 h 59 min) for unattended operation
- Auto-reverse function for improved mixing efficiency
- CerAlTop™ ceramic-coated aluminum plate for excellent heat transfer and chemical resistance
- Hot plate warning displayed when temperature exceeds 50 °C for operator safety
- Safety lock feature prevents accidental changes to settings
- Compact, space-efficient design for bench use
Model-specific differences:

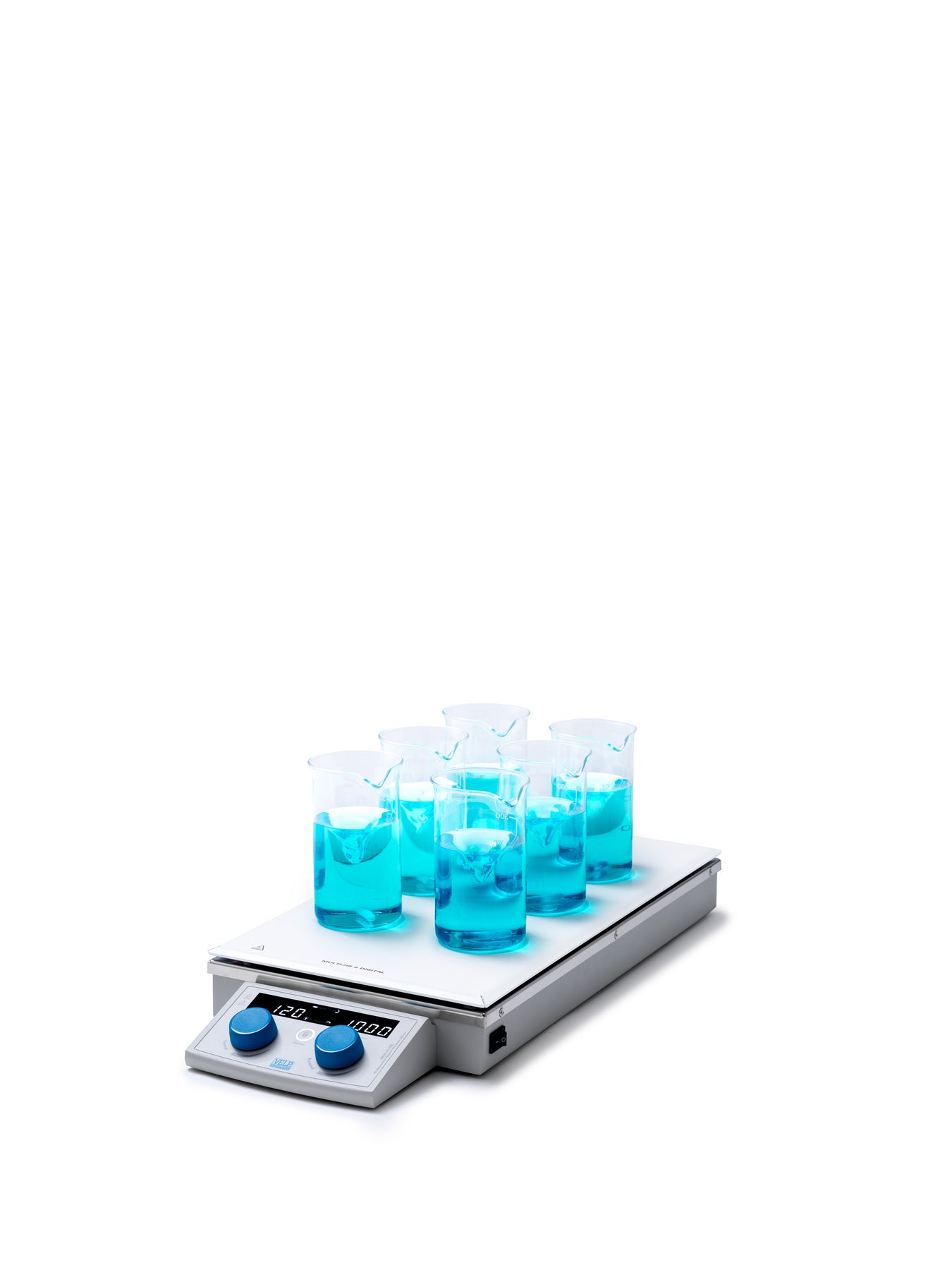

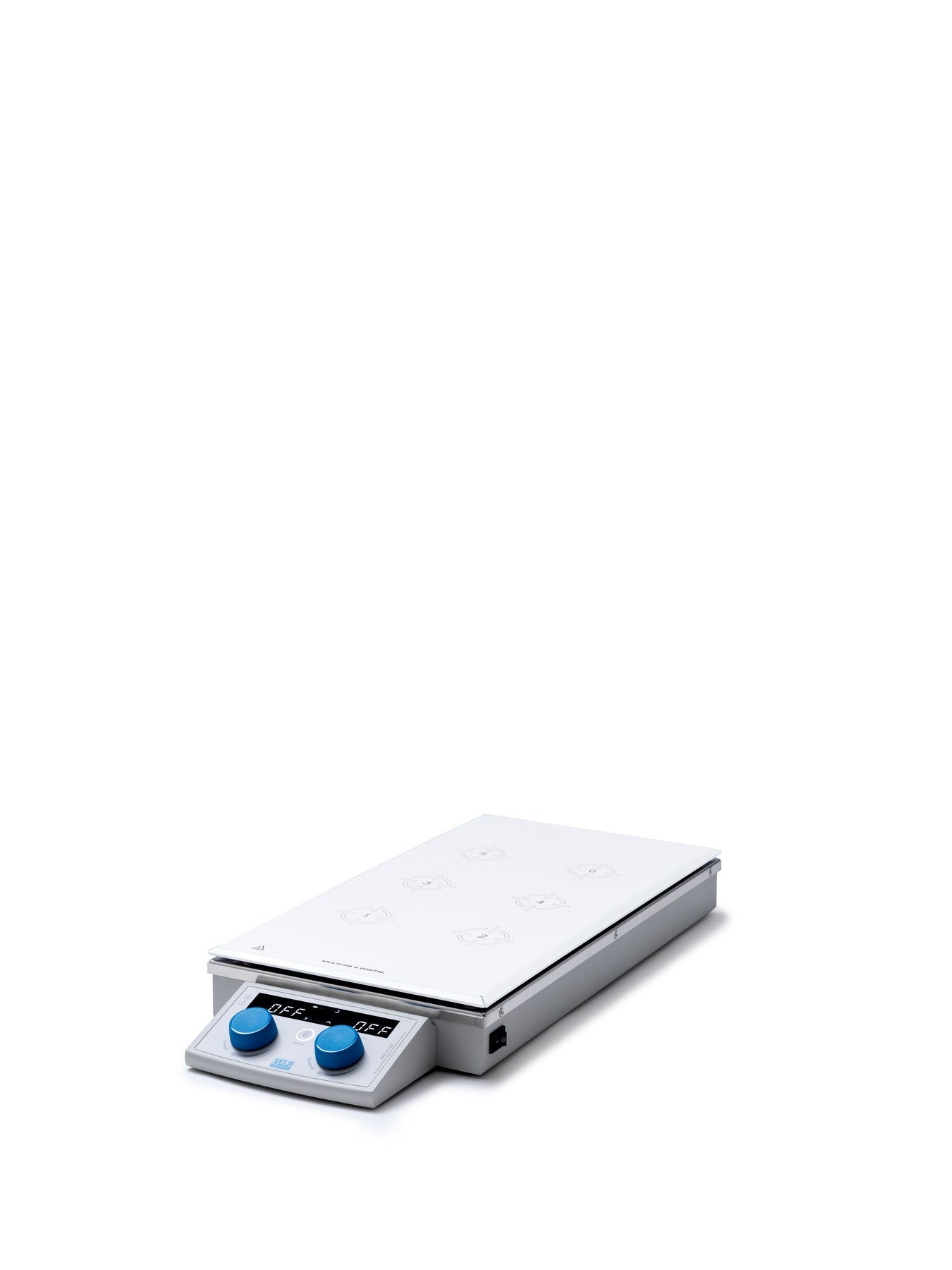

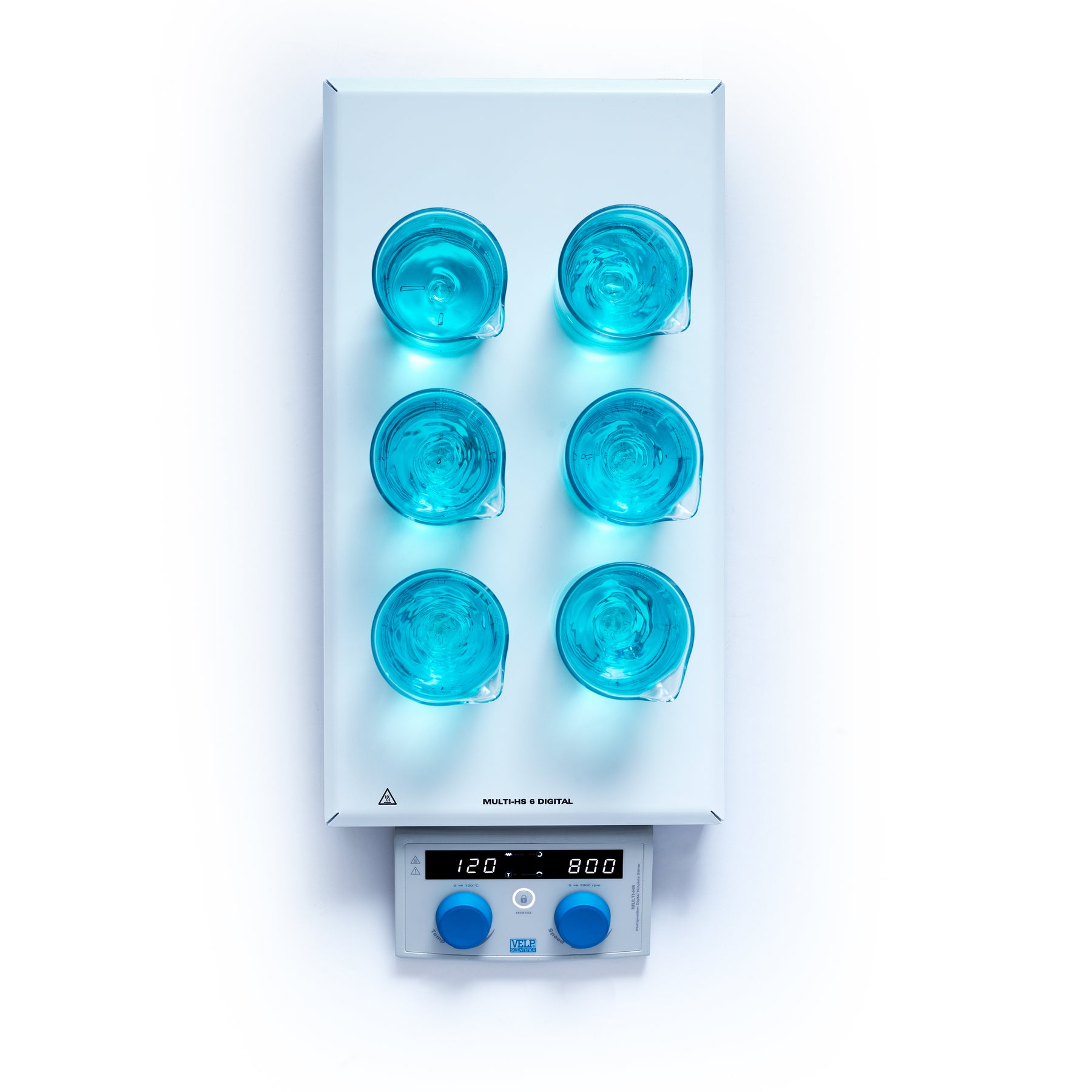

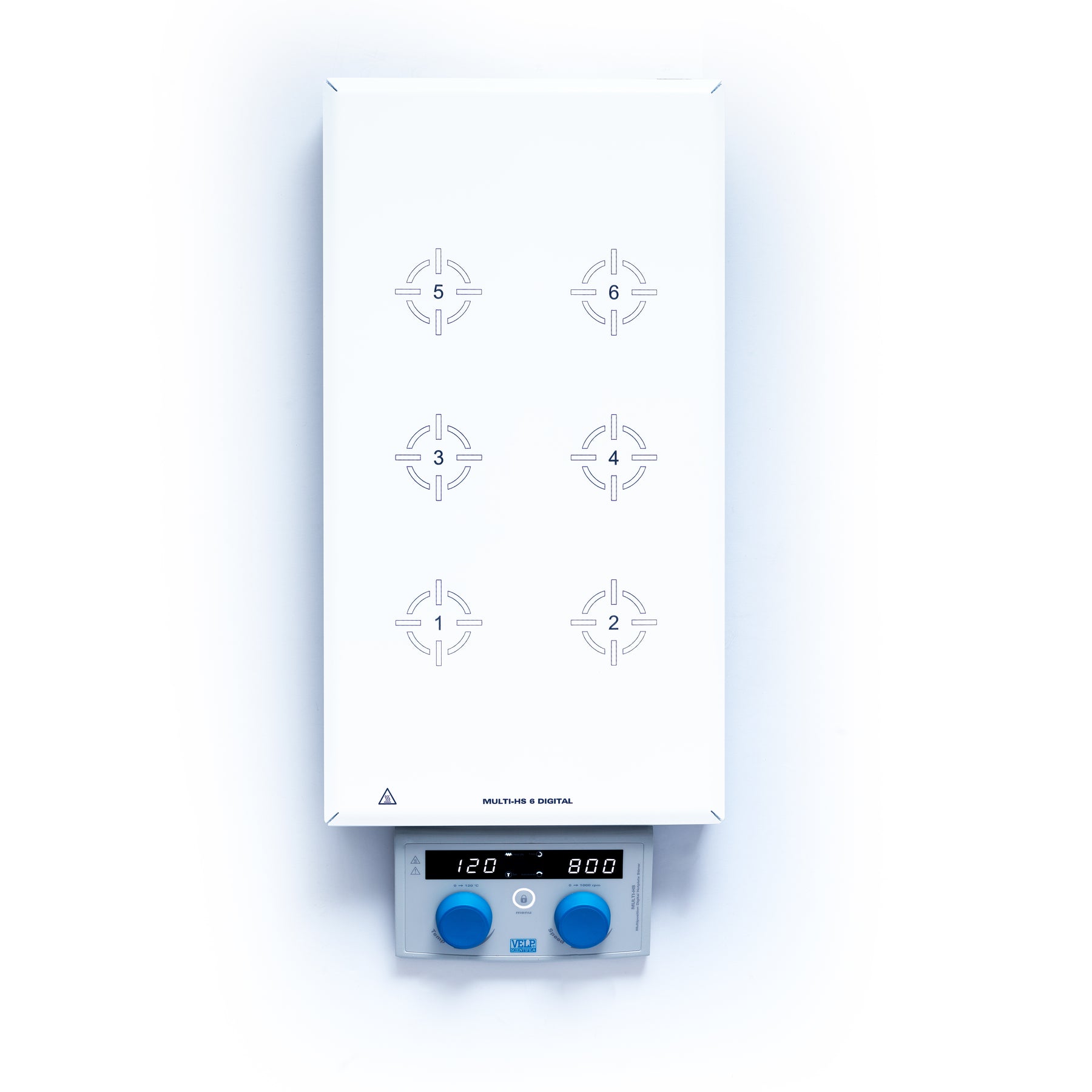

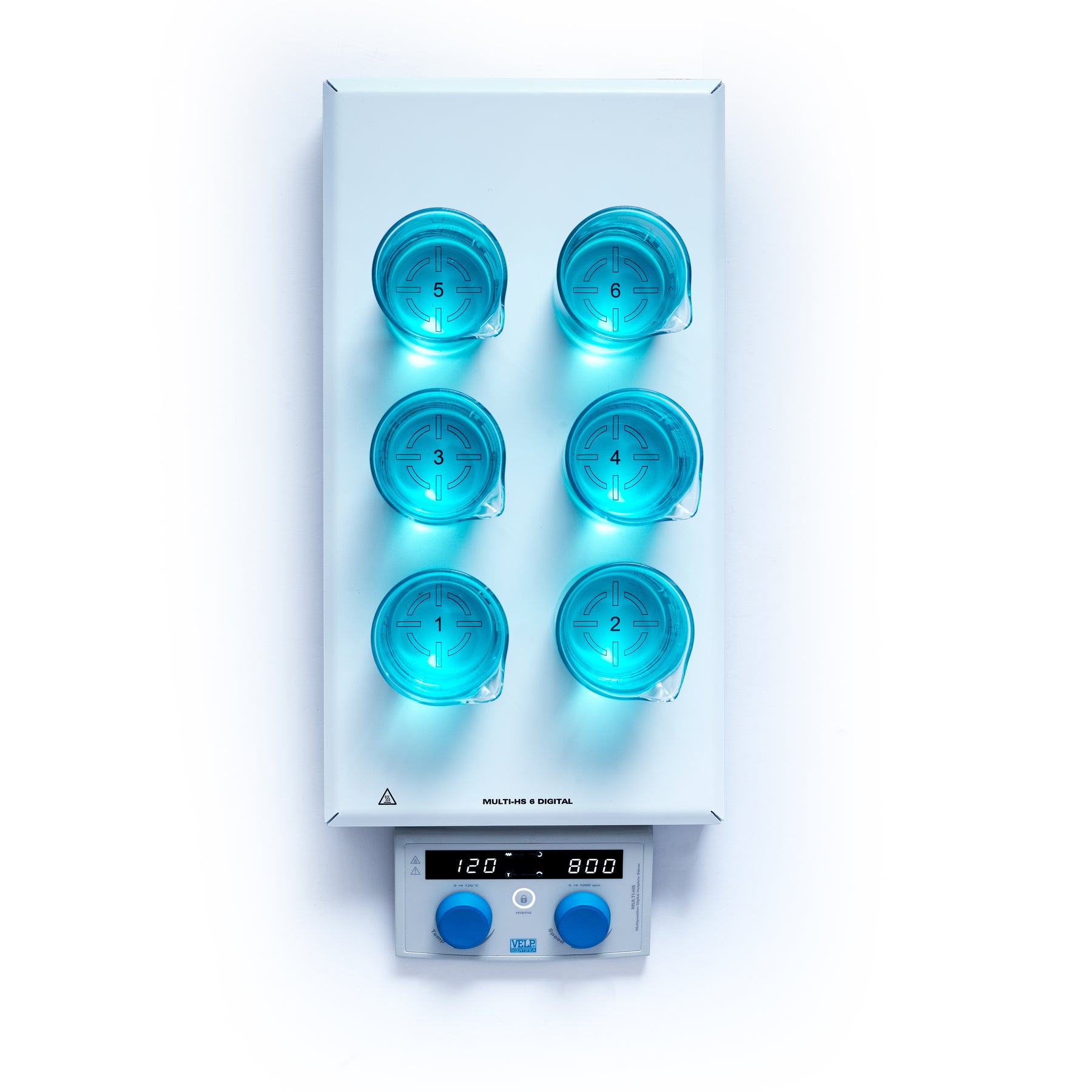

- MULTI-HS 6: 6 stirring positions, supports up to 400 mL per position, wider 100 mm spacing

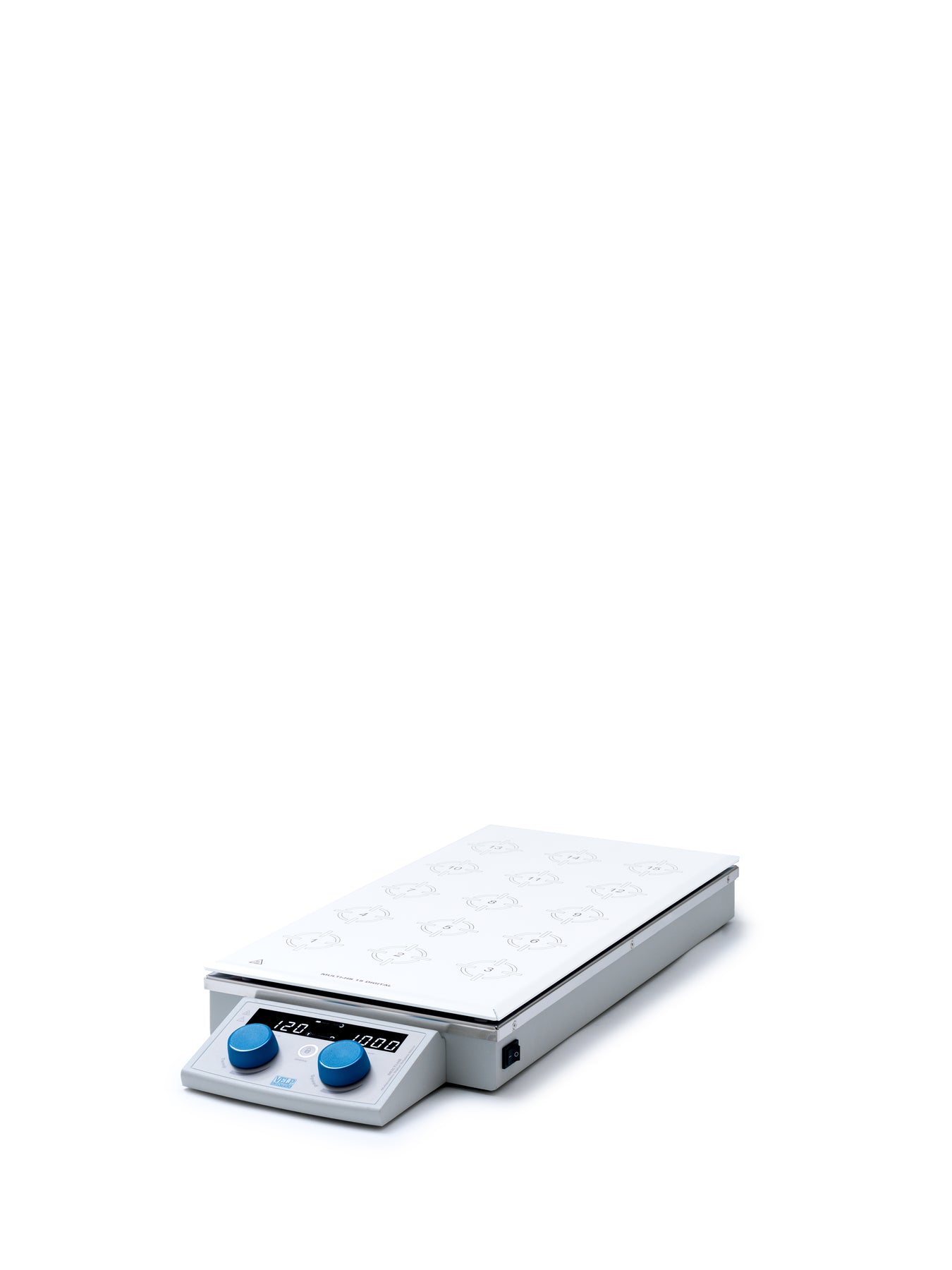

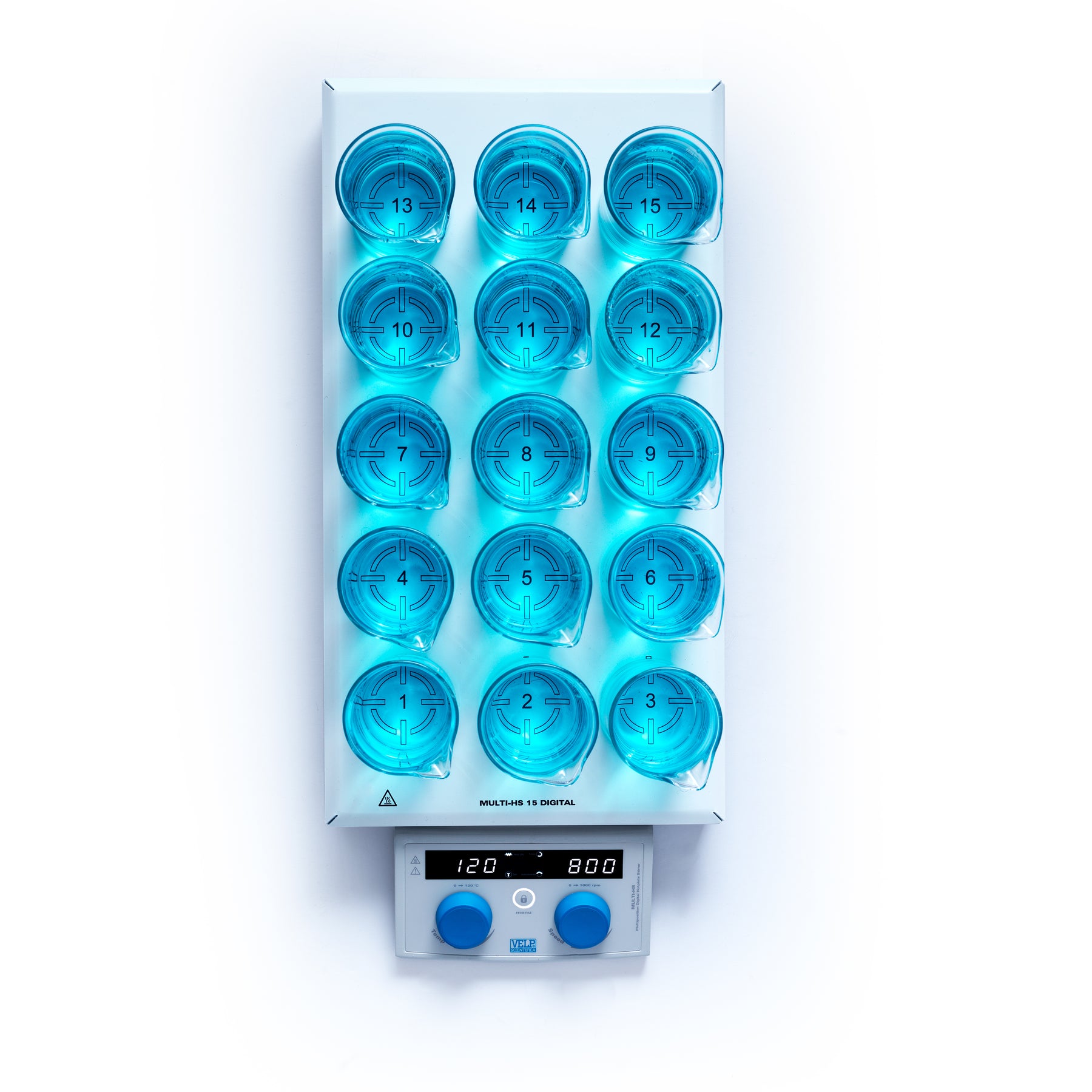

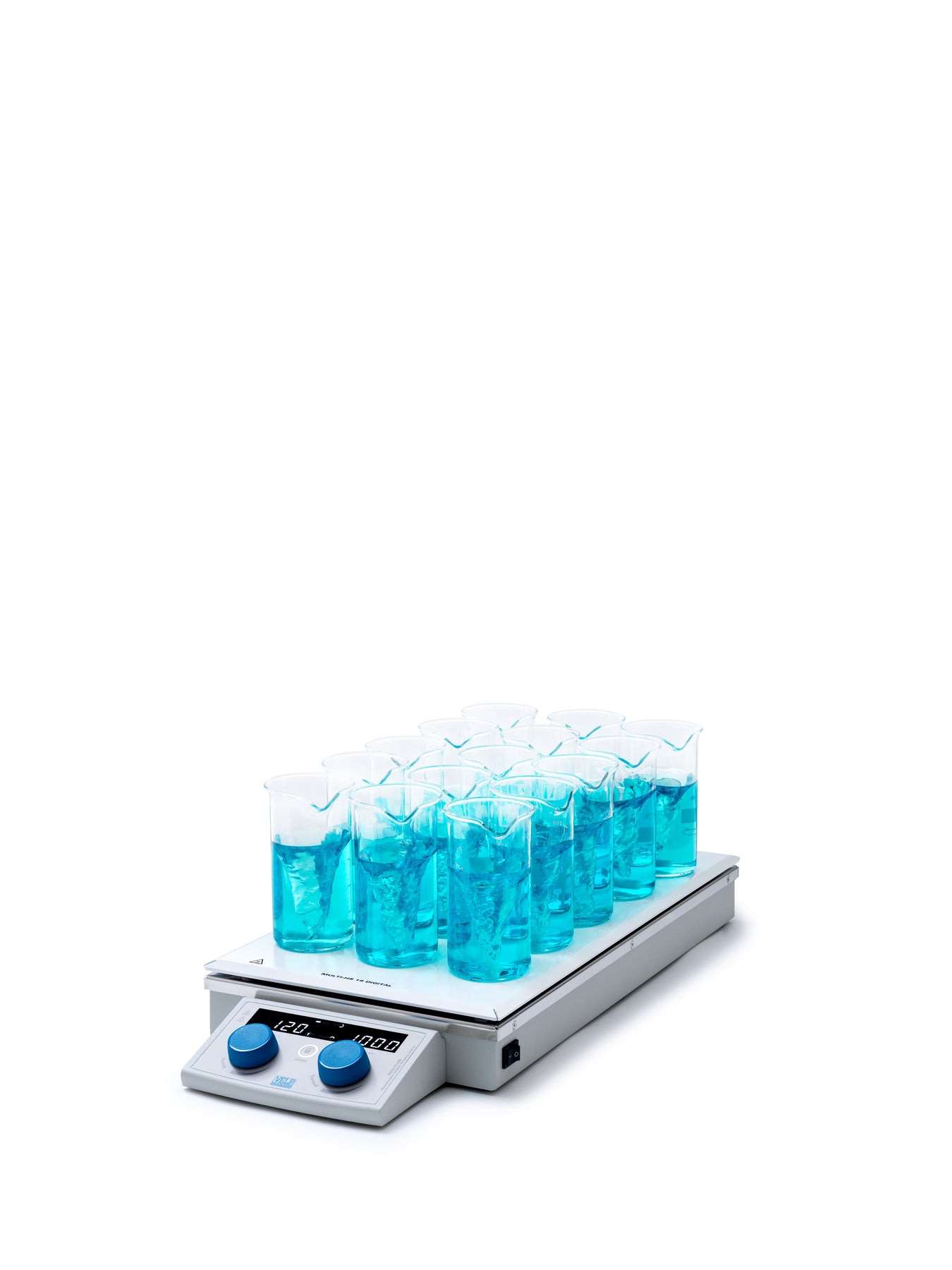

- MULTI-HS 15: 15 stirring positions, supports up to 250 mL per position, tighter 74 mm spacing
Specifications
| MULTI-HS 6 | MULTI-HS 15 | |
|---|---|---|
| Number of Positions | 6 | 15 |
| Maximum Volume per Position | 400 mL | 250 mL |
| Position Spacing | 100 mm | 74 mm |
| Number of Motors | 6 brushless motors | 15 brushless motors |
| Speed Range | 100 – 1000 rpm | 100 – 1000 rpm |
| Speed Accuracy | ±5 rpm | ±5 rpm |
| Temperature Range | Up to 120 °C | Up to 120 °C |
| Temperature Resolution | 1 °C | 1 °C |
| Timer | 1 min to 99 h 59 min | 1 min to 99 h 59 min |
| Auto-Reverse | 5 s to 99 min 59 s | 5 s to 99 min 59 s |
| Plate Material | CerAlTop™ (ceramic-coated aluminum alloy) | CerAlTop™ (ceramic-coated aluminum alloy) |
| Plate Dimensions | 432 × 223 mm | 432 × 223 mm |
| Hot Top Warning | Yes (>50 °C) | Yes (>50 °C) |
| Dimensions (W × H × D) | 240 × 65 × 550 mm | 240 × 65 × 550 mm |
| Weight | 4.7 kg | 4.8 kg |
| Heating Output | 600 W | 600 W |
| Input Voltage | 115 V / 60 Hz | 115 V / 60 Hz |
| Origin | Designed and manufactured in Italy | Designed and manufactured in Italy |
$4,207.16 CAD
