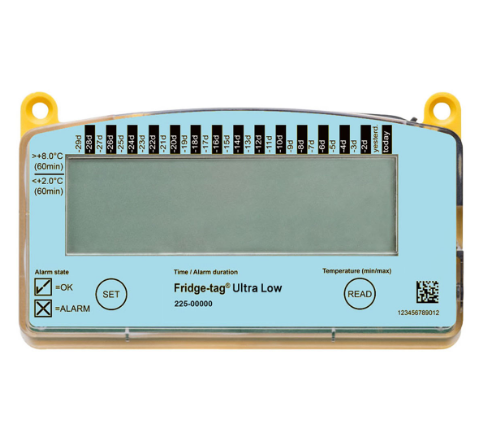

Fridge-Tag® Ultra LowTemperature Data Logger

The Fridge-Tag® Ultra Low Temperature Data Logger is the perfect tool for monitoring sensitive vaccines and pharmaceuticals stored at ultra low temperatures. IMonitor temperatures as low as -90°C and receive instant alerts when limits are exceeded. Plus, generate PDF reports with a clear temperature graph for quick decision making.

NIST traceable, with 2 year certificate and FDA 21 CFR Part 11 requirements met. No software needed for reporting or computer connection, with 30-day status display and 56 days of temperature and alarm data in PDF report.

Included: Data logger, 3yr NIST certificate, Vial & Probe

SPECIFICATIONS:

DESCRIPTION	Electronic ultra low temperature logger with USB and external Sensor Fridge-tag device must be mounted outside of the Freezer with external sensor placed inside
MANUFACTURER’S REF	Fridge-tag Ultra Low
TYPICAL APPLICATION AREA	Monitoring of Ultra Low Temperature Freezer down to -90°C
EXTERNAL DIMENSIONS (L X W X H)	128 x 75 x 19 mm, Display 95 x 27 mm
WEIGHT	112 g
STORAGE CONDITION (INACTIVE)	0 °C to +30 °C / +32 °F to +86 °F
ONLY WITH EXTERNAL SENSOR PLACED INSIDE THE FREEZER (Fridge-tag device must be mounted outside of the Freezer)
OPERATING TEMPERATURE	–90 to 0°C / –130 to +32°F
ALARM TEMPERATURE RANGE	–80°C to -5°C in 0.1°C increments –112°F to +23°F
ACCURACY OF TEMPERATURE MEASUREMENT	+/- 1.5°C from –90°C to –30°C +/- 3.2°F from –130°F to –22°F +/- 0.5°C from –30°C to 0°C +/- 0.9°F from –22°F to +32°F
ALARM LIMITS 2	individually programmable alarm limits (1 upper and 1 lower alarm limit)
ALARM TRIGGER TIME	1 minute to 23 h 59 min
ALARM INDICATION	visual, optional audible (buzzer)
LOGGING INTERVAL	5 min (standard)
MEASUREMENT ACCURACY OF THE TIME	+/- 30 minutes / year
CALIBRATION	Every sensor is factory calibrated according NIST/ILAC standard traceable. Calibration certificate on request
MEMORY SPACE 30	30 day overview on display; PDF report length factory settable: 28, 56, 84 or 112 day overview
BATTERY	Lithium battery – complies with IATA DGR Packaging Instruction 970-Section II
PROTECTION CLASS	IP64 (external sensor not plugged in)
2D CODE ON LABEL	2D data matrix
OPERATING LIFETIME AND SHELF LIFE	Up to 3 1/2 years (1/2 year storage / 3 years useful life). The battery status indicator on the display provides information on the remaining lifetime.
WARRANTY	2 years from date of delivery (see general Berlinger Terms & Conditions)
MANIPULATION	Fridge-tag Ultra Low cannot be manipulated, reset or turned off without destroying it
FORMAT OF THE ORIGINAL DOCUMENT	PDF / ASCII (it can also be imported by many ERP or data management systems)
SOFTWARE FOR VERIFYING PDF AND ASCII FILE	www.berlinger.com/verifier JAVA™ / The software verifies the digital signature of the ASCII and PDF files.
STANDARDS	CE, EMC, ROHS compliant, REACH

Additional Literature:
Fridge-Tag® Ultra Low Manual
