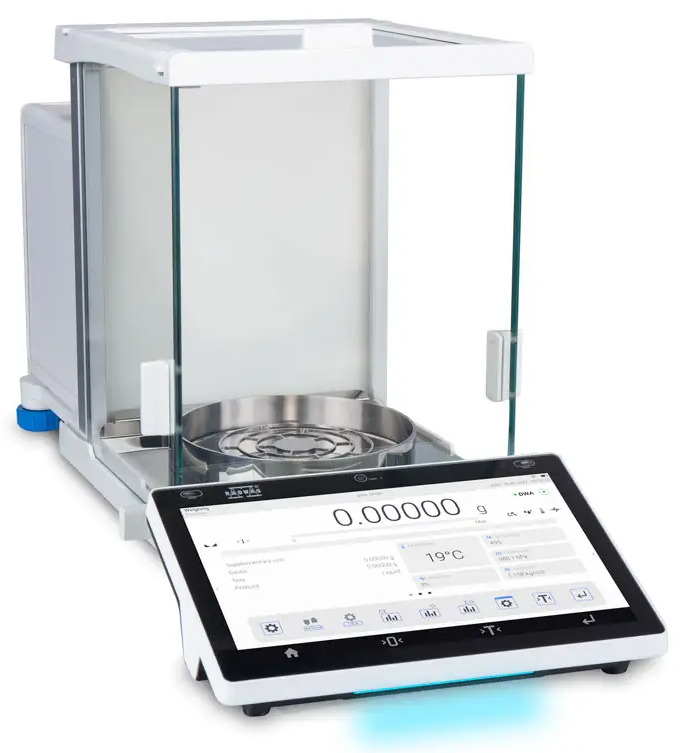

RADWAG XA 52.5Y Analytical Balance 52g x 0.01mg

XA 52.5Y Analytical Balance 52g x 0.01mg is an advanced analytical weighing device of the ELLIPSIS series of balances. Accurately determining weight, the ELLIPSIS series of balances can additionally provide digital auditing, voice command capability and is able to send light messages.

The digital weighing auditor equips the balance with real-time air buoyancy compensation and informs about the need for periodic inspection of accuracy and sensitivity. Additionally, the balance can be verified with a user password, RFID card, fingerprint reader, facial recognition mechanism, or a combination there these.

10’’ display offers comprehensive overview, up to 3 screens, widgets, charts, statuses, notes, and measurement history. Colour coding helps users observe and assess statuses, results, operations, and alerts with ease. Customizable widgets enable users to display essential data.

Adjacency, a process executed at two points as opposed to one, increases accuracy across the entire weighing range. This can provide more precise measurement outcomes. Additionally, the scale presents information regarding whether the weight of the sample is below or above the minimum weight allowance. Electrostatic samples that can't be weighed are no problem - the ionizer will quickly neutralize the charge.

Optional under-pan weighing - weighing instruments will allow under-pan weighing at any time after the purchase. All you need to do is order a dedicated hook.

Maximum capacity [Max]	52g
Minimum Load	1mg
Readability [d]	0.01mg
Verification Scale Interval [e]	1mg
Tare range	-52g
Standard repeatability [5% Max]	0.005mg
Standard repeatability [Max]	0.01mg
Standard minimum weight (USP)	10mg
Standard minimum weight (U=1%, k=2)	1mg
Permissible repeatability [5% Max]	0.012mg
Permissible repeatability [Max]	0.02mg
Linearity	±0.03mg
Eccentric Load Deviation	0.03mg
Stabilization time	4s
Adjustment	internal (automatic)
OIML Class	I
Leveling System	semi-automatic - LevelSENSING
Display	10″ touchscreen
Protection Class	IP 43
Delivery Components	Analytical Balance, weighing pan, weighing pan shield, centering ring, brush, fabric dust cover, power supply
Weighing Chamber Dimensions	168x160x228mm
Weighing pan dimensions	ø90 + ø85 (option)mm
Packaging dimensions	492x595x750mm
Net weight	9.8kg
Gross weight	16kg
Communication interface	USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot
Power supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.6A max*
Operating temperature	+10 — +40°C
Operating temperature change rate	±0.3°C/1h (±1°C/8h)
Relative Humidity	20% — 80%
Relative Humidity change rate	±1%/h (±4%/8h)

Additional Literature:

XA 52.5Y - Datasheet
