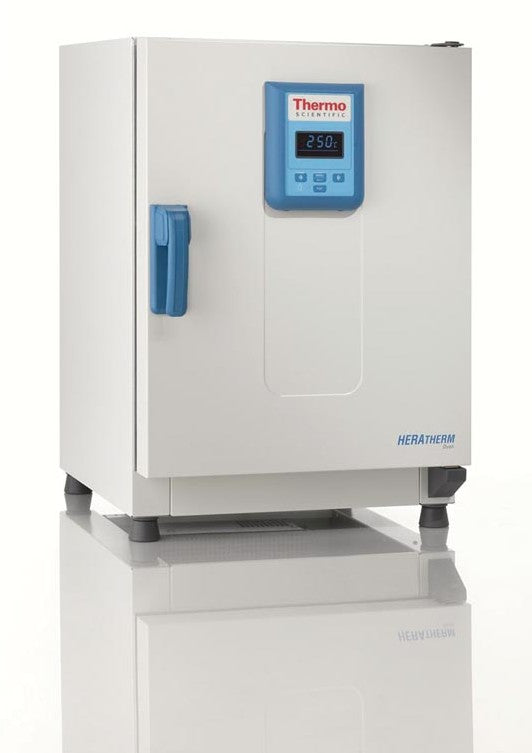

Heratherm™ General Protocol Gravity Convection Oven
50°C - 250°C - 6.2 cu. Ft. / 176L
Heratherm™ General Protocol Gravity Convection provide gentle drying and heating, ideal for research, clinical, and industrial needs. Designed to protect delicate samples while providing temperature uniformity of ±4°C or better, and temperature stability of at least ±0.4°C at 150°C. Features automatic over-temperature alarm system to protect samples. Large, easy to view display with built in timer and simple, microprocessor-based touch button controls.
Features and Benefits
- Low energy consumption

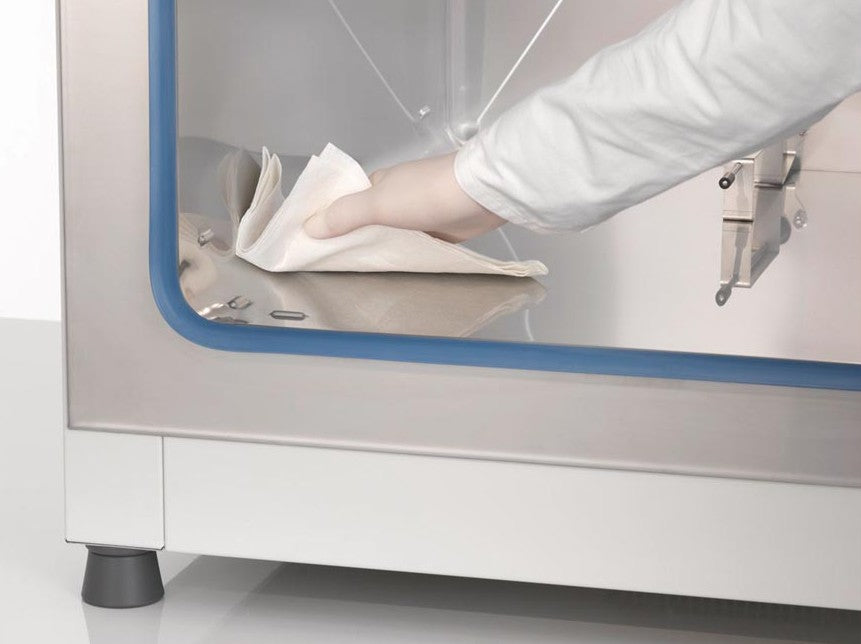

- Inner chambers made from corrosion-resistant galvanized steel with rounded corners for easy cleaning

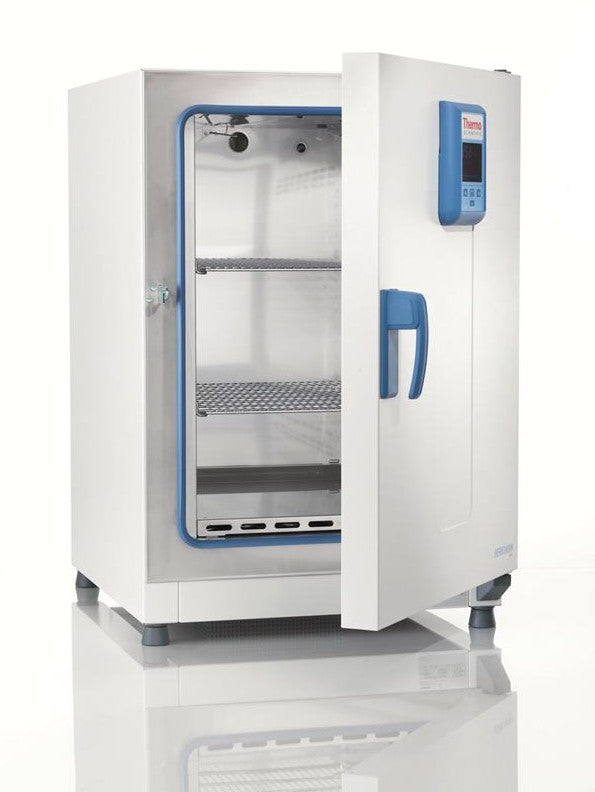

- Doors can be opened over 180° making these units easy to access
- Heratherm™ ovens come standard with a RS232 data interface
- The exhaust vent can be used as an access port for an external temperature sensor
Specifications
|
Max Temperature
|
250°C (482°F)
|
|
Volume
|
6.2 cu ft (176 L)
|
|
Outside Dimensions
(WxHxD)
|
25.2 x36.2 x 29.1" (64x 92x 73.8 cm)
|
|
Chamber Dimensions
(WxHxD)
|
17.2 x 26.8 x 23.2" (43.8 x 68 x 58.9 cm)
|
|
Power
|
120V/ 14A / 1680W
|
|
Spatial Temperature
Deviation at 150 °C
|
± 4 °C
|
|
Temperature Deviation
Over Time at 150 °C
|
± 0.4 °C
|
|
Footprint
|
5.1 sq. ft. / 0.47 m2
|
|
Controller Type
|
Microprocessor control with vacuum fluorescent display
|
|
Timer
|
ON / OFF
|
|
Max. Shelf Load
|
25 kg / 55 lbs
|
|
Number of Shelves
|
2 Supplied, 19 Max.
|
|
Warranty
|
2 Year Manufacturer warranty
|
Additional Literature:
Heratherm™ Heating and Drying Ovens Brochure
Heratherm™ Heating and Drying Ovens Manual
