Heratherm™ General Protocol Mechanical Convection Oven
+50°C - 250°C - 6.3 cu. Ft / 179L

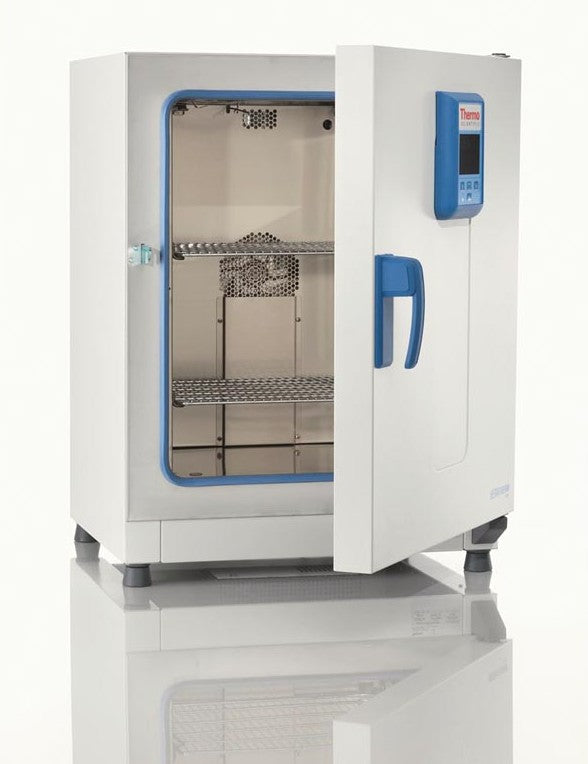

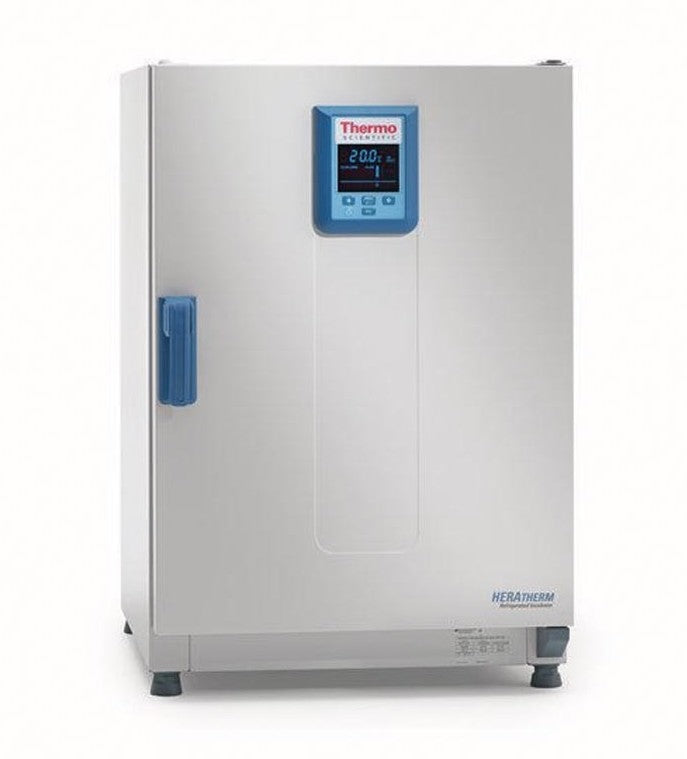

Heratherm™ General Protocol ovens provide mechanical convection for drying, heating, and superior temperature uniformity. These models provide temperature uniformity of ±4.0°C or better, and temperature stability of at least ±0.4°C at 150°C. Low energy consumption, with built in timer and automatic overtemperature alarm system to protect samples.
Features and Benefits

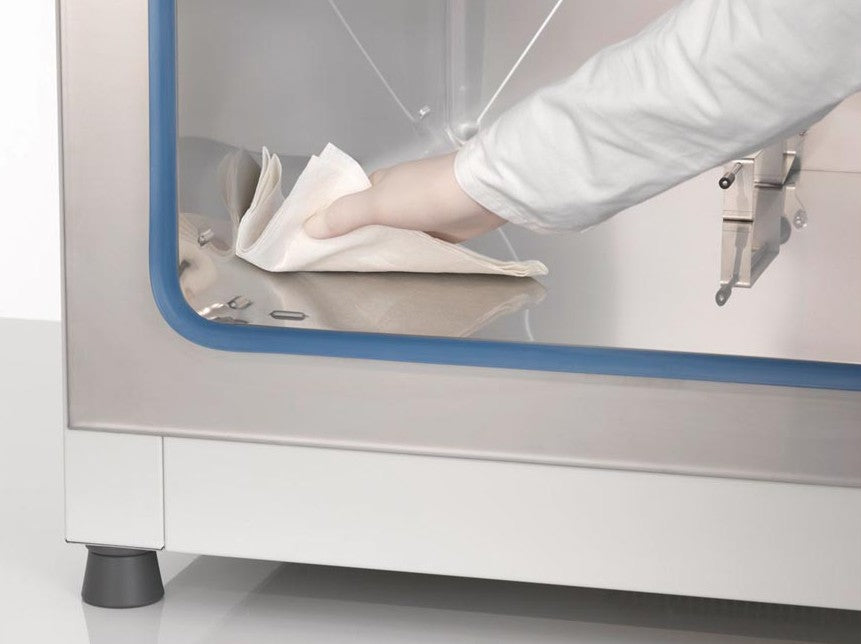

- Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
- Large, easy to view vacuum fluorescent display
- Simple, microprocessor-based touch button controls
- Doors can be opened over 180° making these units easy to access
- The exhaust vent can be used as an access port for an external temperature sensor
- All Heratherm™ ovens come standard with a RS232 data interface
- Easy to use, microprocessor-controlled touch button operation
Features and Benefits
- Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
- Large, easy to view vacuum fluorescent display
- Simple, microprocessor-based touch button controls
- Doors can be opened over 180° making these units easy to access
- Automatic overtemperature alarm system to protect samples
- The exhaust vent can be used as an access port for an external temperature sensor
- All Heratherm™ ovens come standard with a RS232 data interface
- Easy to use, microprocessor-controlled touch button operation
Specifications
|
Max Temperature |
250°C (482°F) |
|
Volume |
6.3 cu ft (179 L) |
|
Outside Dimensions |
25.2 x 36.2 x 29.1" (64 x 92 x 73.8 cm) |
|
Chamber Dimensions |
18.3 x 27.9 x 21.4" (464 x 708 x 543 cm) |
|
Power |
120V / 13.8A / 1660W |
|
Spatial Temperature |
± 3 °C |
|
Temperature Deviation |
± 0.3 °C |
|
Footprint |
5.1 sq. ft. / 0.47 sq. m |
|
Controller Type |
Microprocessor control with vacuum fluorescent display |
|
Timer |
ON / OFF |
|
Max. Shelf Load |
25 kg / 55 lbs |
|
Number of Shelves |
2 Supplied, 16 Max. |
|
Warranty |
2 Year Manufacturer warranty |
