Heratherm™ General Protocol Gravity Convection Oven
50
°C - 250°C - 2.3 cu. Ft. / 65L

Heratherm™ General Protocol Gravity Convection provide gentle drying and heating, ideal for research, clinical, and industrial needs. Designed to protect delicate samples while providing temperature uniformity of ±4°C or better, and temperature stability of at least ±0.4°C at 150°C. Features automatic over-temperature alarm system to protect samples. Large, easy to view display with built in timer and simple, microprocessor-based touch button controls.

Features and Benefits

  • Low energy consumption

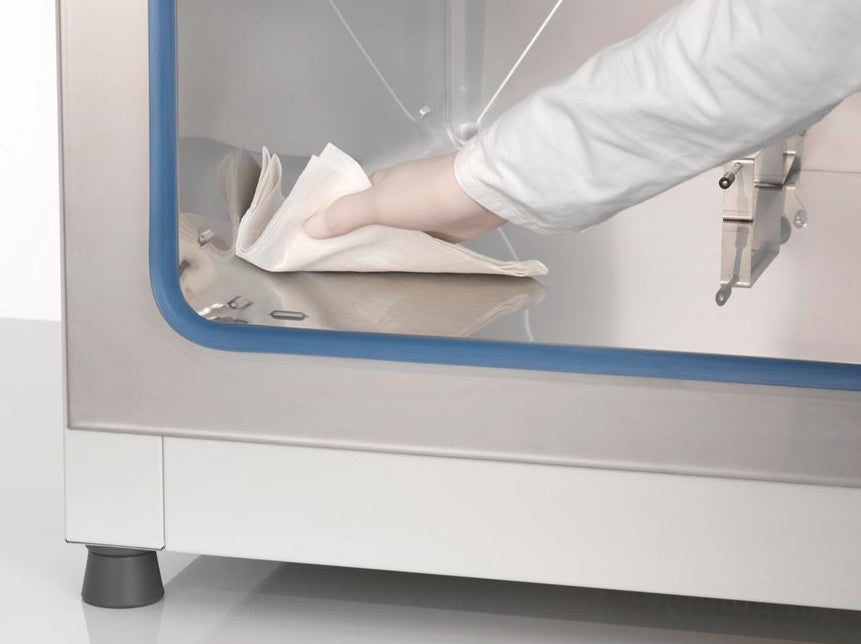

  • Inner chambers made from corrosion-resistant galvanized steel with rounded corners for easy cleaning
  • Doors can be opened over 180° making these units easy to access
  • Heratherm™ ovens come standard with a RS232 data interface
  • The exhaust vent can be used as an access port for an external temperature sensor

Specifications:

Max Temperature

250°C (482°F)

Volume

2.3 cu ft (65 L)

Outside Dimensions
(WxHxD)

20.9 x 28.3 x 22.2" (53 x 72 x 56.5 cm)

Chamber Dimensions
(WxHxD)

12.9 x 18.9 x 16.3" (32.8 x 48 x 41.5 cm)

Power

120V / 14.4A / 1730W

Spatial Temperature
Deviation at 150 °C

± 4 °C

Temperature Deviation
Over Time at 150 °C

± 0.4 °C

Footprint

3.2 sq. ft. / 0.3 m2

Controller Type

Microprocessor control with vacuum fluorescent display

Timer

ON / OFF

Max. Shelf Load

25 kg / 55 lbs

Number of Shelves

2 Supplied, 13 Max.

Warranty

2 Year Manufacturer warranty



Additional Literature

Heratherm™ Heating and Drying Ovens Brochure

Heratherm™ Heating and Drying Ovens Manual
