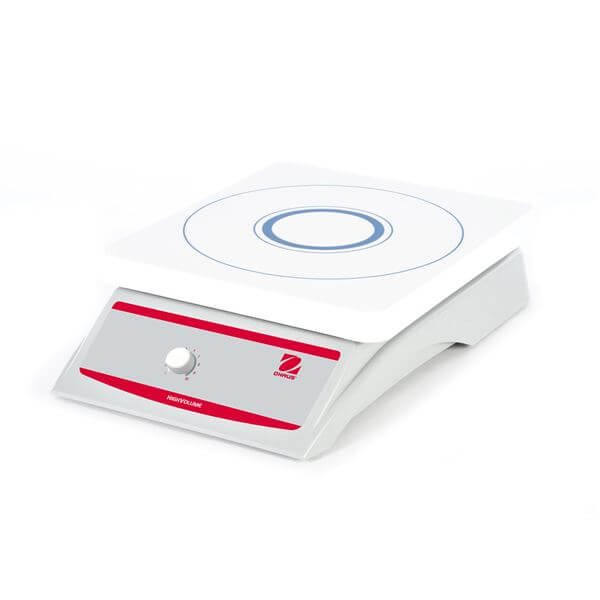

Ohaus STHVAL - Analog High Volume Stirrer - 25 Liter
SKU: STHVAL~ea
SKU: STHVAL~ea
Description
Ohaus STHVAL High Volume Stirrer features a chemical-resistant top plate with a white reflective surface that is easy to clean. Durable aluminum cast housing and the broad top plate allows processing of oversized vessels such as carboys for your large volume stirring. The powerful magnetic drive is also capable of mixing highly viscous materials. Ideal for Carboys, Chromatography, Mixing viscous materials, polymers, pilot scale and other large volume Stirring and Mixing applications.
Speed ramping feature slowly increases the motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control and provides excellent low-end speed control. Analog model is an economical choice. Includes a 70 mm egg shaped stir bar.
Specifications:Capacity | 25 L |
Control | Analog |
Dimensions | 4 in x 17 in x 11 in (97 mm x 432 mm x 279 mm) (HxLxW) |
Net Weight | 13.6 lb (6.2 kg) |
Plate Construction | Glass Filled Nylon |
Plate Size | 12.5 in x 11 in (318 mm x 279 mm) |
Power | 120V, 1.3A, 50/60Hz |
Power Consumption | 75 W |
Safety Certification | UL; cUL |
Speed Range | 60 rpm to 1400 rpm |
Working Environment | 41°F – 104°F, 20% to 80%RH non-condensing (5°C – 40°C, 20% to 80% RH, non-condensing) |
Warranty | 24 Months |
Additional Literature:
Ohaus STHVAL Datasheet
Ohaus STHVAL Manual
