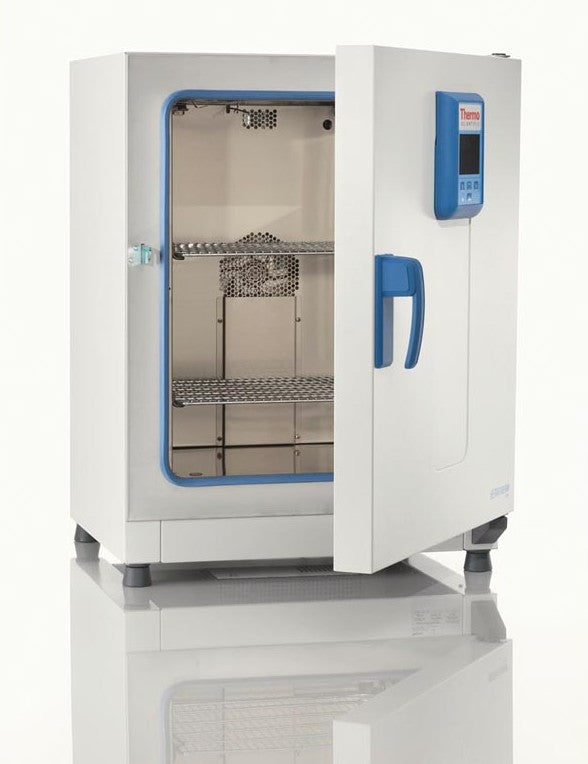

Heratherm™ General Protocol Mechanical Convection Oven - 2.3cu.Ft / 66L

SKU: OMS60~ea

Heratherm™ General Protocol Mechanical Convection Oven - 2.3cu.Ft / 66L

SKU: OMS60~ea
Default Title
Regular price $4,852.16 CAD
  • Secure payments
Shipping calculated at checkout.

Heratherm™ General Protocol Mechanical Convection Oven
+50°C - 250°C  -  2.3cu.Ft / 66L

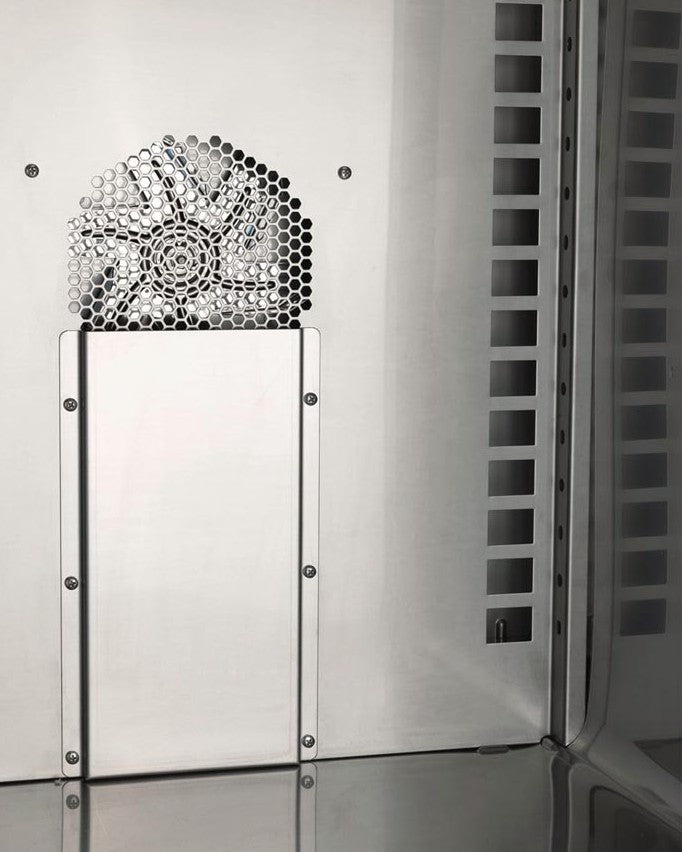

Heratherm™ General Protocol ovens provide mechanical convection for drying, heating, and superior temperature uniformity.These models provide temperature uniformity of  ±4.0°C or better, and temperature stability of at least ±0.4°C at 150°C. Low energy consumption, with built in timer and automatic overtemperature alarm system to protect samples.

Features and Benefits

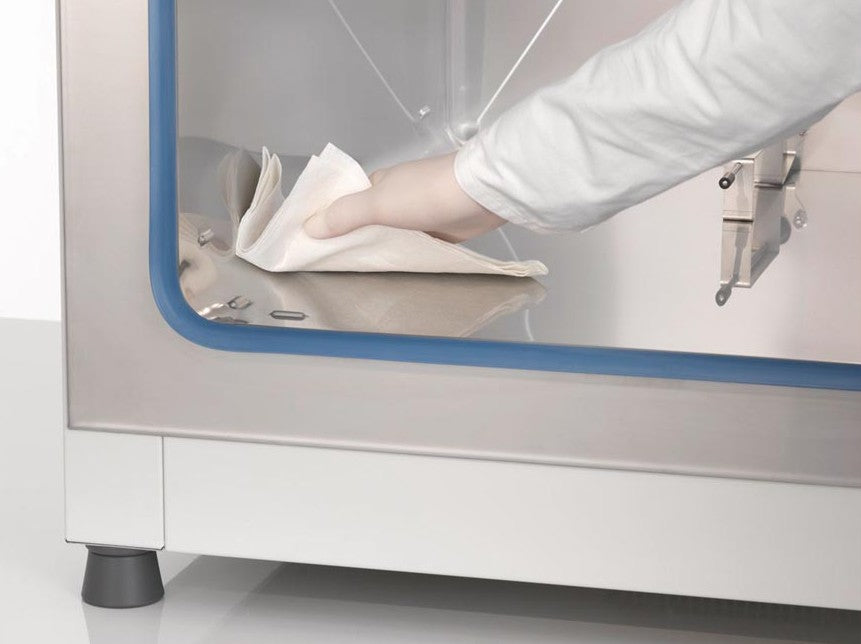

  • Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
  • Large, easy to view vacuum fluorescent display
  • Simple, microprocessor-based touch button controls
  • Doors can be opened over 180° making these units easy to access
  • The exhaust vent can be used as an access port for an external temperature sensor
  • All Heratherm™ ovens come standard with a RS232 data interface
  • Easy to use, microprocessor-controlled touch button operation


Max Temperature

250°C (482°F)


2.3 cu ft (66 L)

Outside Dimensions

20.9 x 28.3 x 22.2" (53 x 72 x 56.5 cm)

Chamber Dimensions

13.9 x 20 x 14.5" (32.8 x 48 x 41.5 cm)


120V / 14.4A / 1440W

Spatial Temperature
Deviation at 150 °C

± 3.3 °C

Temperature Deviation
Over Time at 150 °C

± 0.3 °C


3.2 sq. ft. / 0.3 sq. m

Controller Type

Microprocessor control with vacuum fluorescent display



Max. Shelf Load

25 kg / 55 lbs

Number of Shelves

2 Supplied, 13 Max.


2 Year Manufacturer warranty


Additional Literature

 Heratherm™ Heating and Drying Ovens Brochure

 Heratherm™ Heating and Drying Ovens Manual
