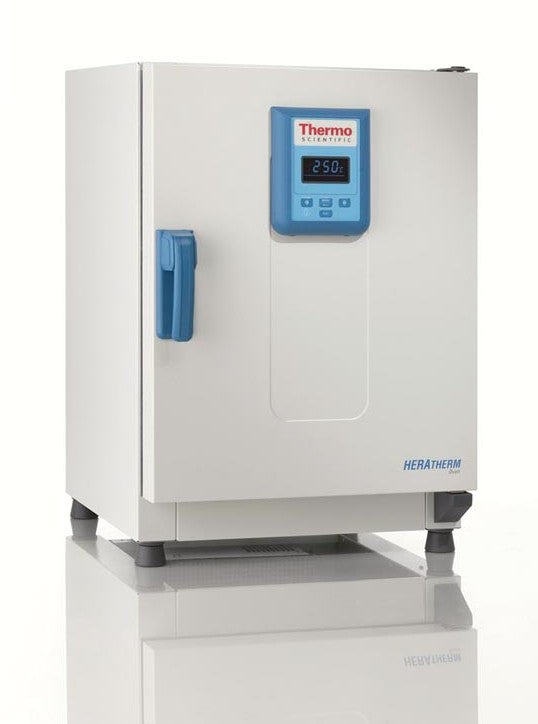

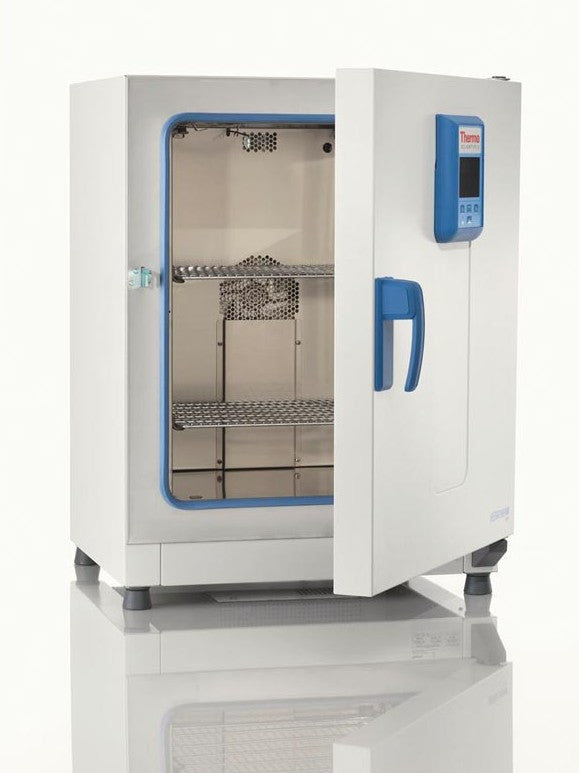

Heratherm™ Advanced Protocol Mechanical Convection Oven -
+50°C - 330°C - 6.1 cu. Ft. / 170L
Heratherm™ Advanced Protocol Ovens have unmatched temperature performance, that allows them to be an efficient and flexible tool that can be used for multiple applications.
These Mechanical convection models provide temperature uniformity of ±3.0°C or better, and temperature stability of at least ±0.2°C at 150°C. These models also have a simple calibration routine that ensures temperature continues to be accurate over time
Features and Benefits
- Broad temperature range - up to 330°C
- Adjustable fan speed for application-related airflow in mechanical convection models (e.g. drying of powders)
- High speed for expedited drying and heating, quick recovery, and optimal temperature stability and uniformity
- Programmable controller for temperature ramps and dwells
- Up to 10 programs can be saved, each with 10 discrete steps
- Features electronically controlled fan speed and damper position
- Programs can be repeated automatically
- Access port allows the introduction of sensors for independent data monitoring
- Boost function enables rapid heating up - no need to operate the oven 24/7
Specifications:
|
Max Temperature
|
330°C (626°F)
|
|
Volume
|
6.1 cu ft (170 L)
|
|
Outside Dimensions
(WxHxD)
|
25.2 x 36.2 x 29.1" (64 x 92 x 73.8 cm)
|
|
Chamber Dimensions
(WxHxD)
|
18.3 x 27.9 x 20.4" (46.4 x 70.8 x 51.8 cm)
|
|
Power
|
208-240V / 14A / 3360W
|
|
Spatial Temperature
Deviation at 150 °C
|
± 1.5 °C
|
|
Temperature Deviation
Over Time at 150 °C
|
± 0.2 °C
|
|
Footprint
|
5.1 sq. ft. / 0.47 sq. m
|
|
Controller Type
|
Microprocessor control with vacuum fluorescent display
|
|
Timer
|
ON / OFF
|
|
Max. Shelf Load
|
25 kg / 55 lbs
|
|
Number of Shelves
|
2 Supplied, 19 Max.
|
|
Warranty
|
2 Year Manufacturer warranty
|
Additional Literature
Heratherm™ Heating and Drying Ovens Brochure
Heratherm™ Heating and Drying Ovens Manual
