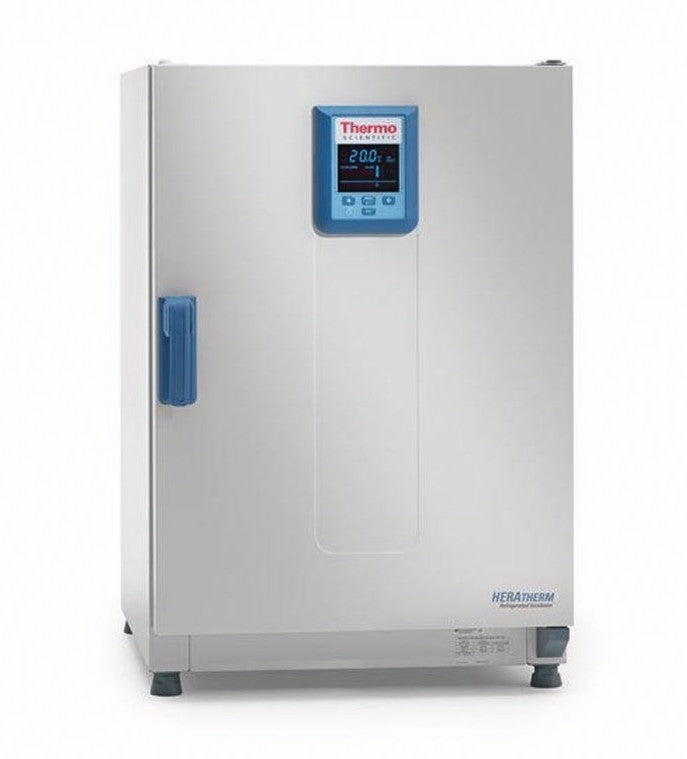

Heratherm™ General Protocol Mechanical Convection Oven
+50°C - 250°C - 3.65 cu. ft / 104L

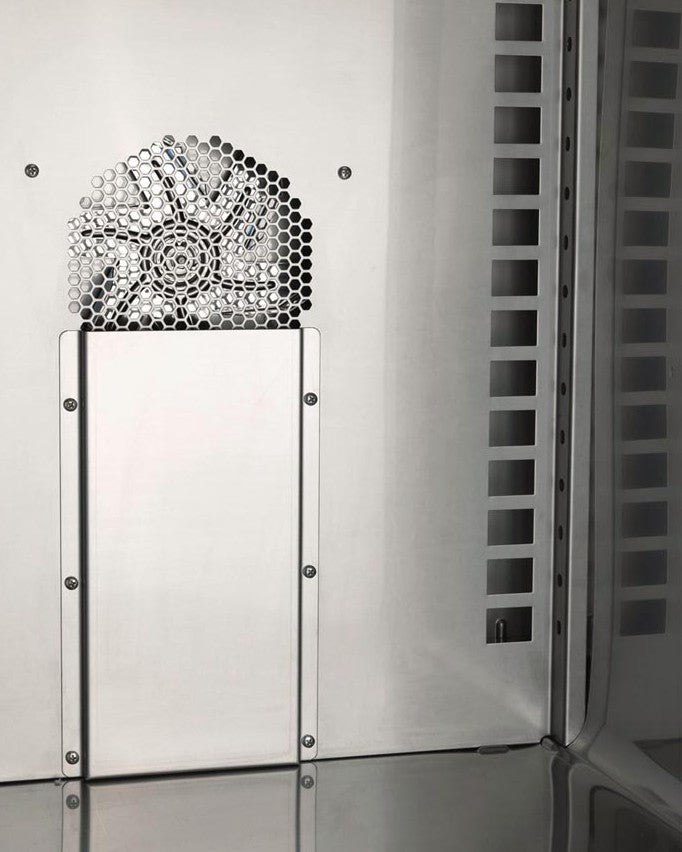

Heratherm™ General Protocol ovens provide mechanical convection for drying, heating, and superior temperature uniformity. These models provide temperature uniformity of ±4.0°C or better, and temperature stability of at least ±0.4°C at 150°C. Low energy consumption, with built in timer and automatic overtemperature alarm system to protect samples.
Features and Benefits:

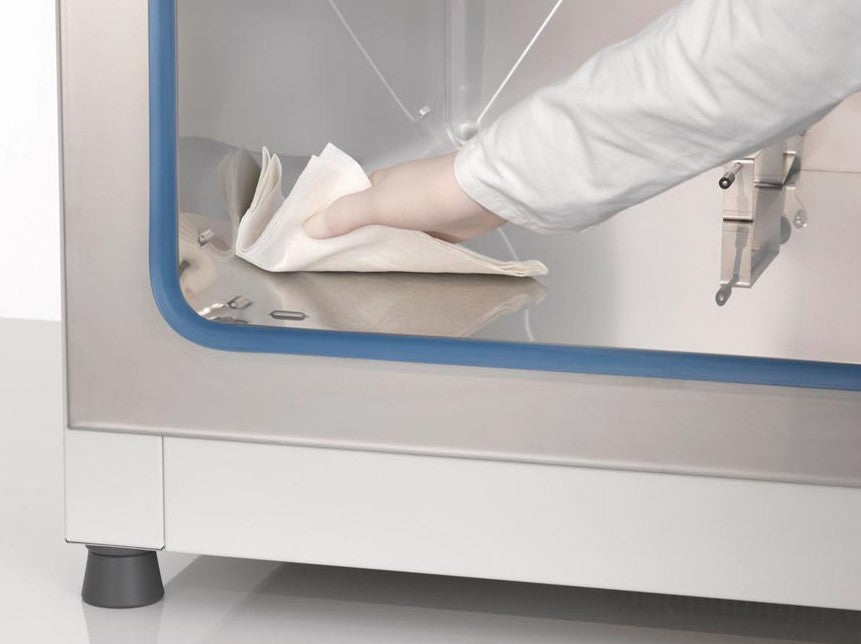

- Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
- Large, easy to view vacuum fluorescent display
- Simple, microprocessor-based touch button controls

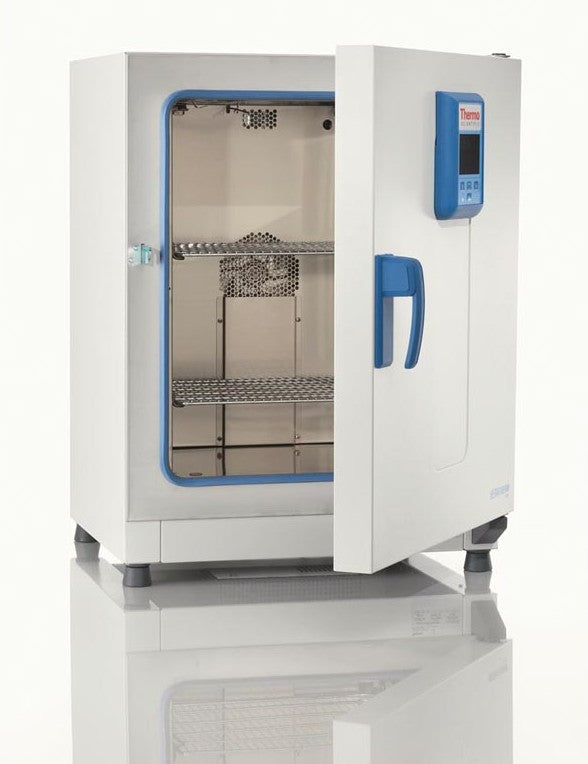

- Doors can be opened over 180° making these units easy to access
- The exhaust vent can be used as an access port for an external temperature sensor
- All Heratherm™ ovens come standard with a RS232 data interface
- Easy to use, microprocessor-controlled touch button operation
Specifications:
|
Max Temperature
|
250°C (482°F)
|
|
Volume
|
3.65 cu. ft (104 L)
|
|
Outside Dimensions
(WxHxD)
|
25.2 x 32.3 x 22.2" (64 x 82 x 56.5 cm)
|
|
Chamber Dimensions
(WxHxD)
|
18.3 x 23.9 x 14.5" (46.4 x 60.8 x 36.8 cm)
|
|
Power
|
120V / 13.8A / 1660W
|
|
Spatial Temperature
Deviation at 150 °C
|
± 2.5 °C
|
|
Temperature Deviation
Over Time at 150 °C
|
± 0.3 °C
|
|
Footprint
|
3.9 sq. ft. / 0.36 sq. m
|
|
Controller Type
|
Microprocessor control with vacuum fluorescent display
|
|
Timer
|
ON / OFF
|
|
Max. Shelf Load
|
25 kg / 55 lbs
|
|
Number of Shelves
|
2 Supplied, 16 Max.
|
|
Warranty
|
2 Year Manufacturer warranty
|
Additional Literature:
Heratherm™ Heating and Drying Ovens Brochure
Heratherm™ Heating and Drying Ovens Manual
