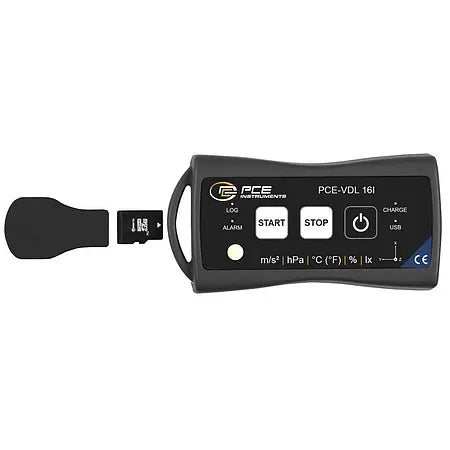

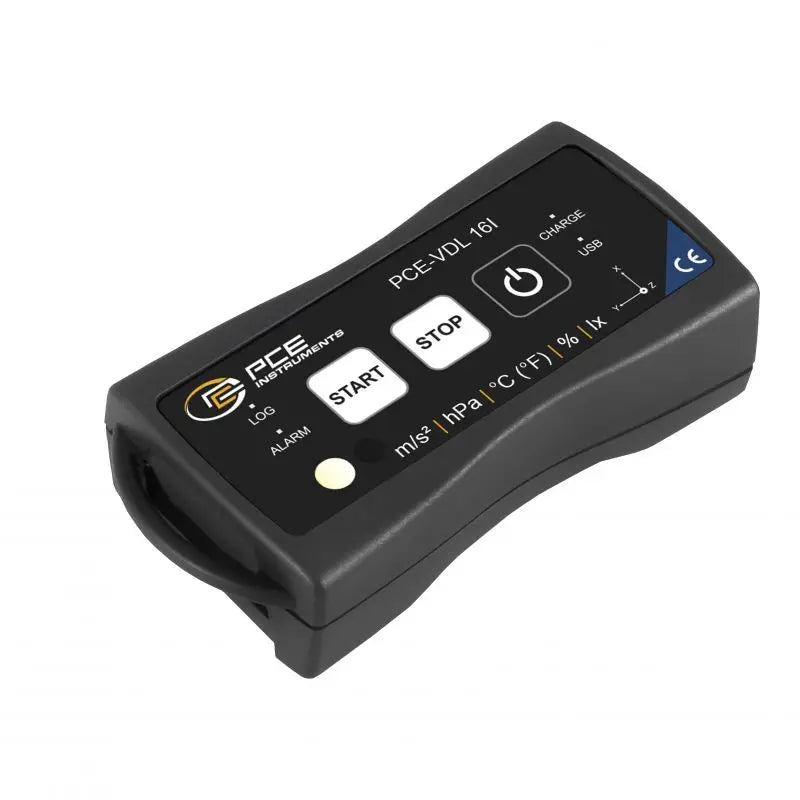

Vibration Data Logger, 3-Axis 800 Hz, Temp RH Pressure Light, SD, PCE-VDL 16I

The PCE-VDL 16I is a compact vibration data logger that records 3-axis acceleration up to 800 Hz plus temperature, relative humidity, air pressure, and light in one device. It is built for real-world diagnostics where you need vibration and environmental context on the same timeline.

Ideal for condition monitoring, fault diagnosis, shock and stress testing, machine inspections, and preventive maintenance programs across Canadian manufacturing, utilities, research labs, and field service teams.

Key Benefits

3-axis acceleration logging up to 800 Hz for vibration and shock capture
Environmental sensors included: temperature, humidity, air pressure, and light
32 GB SD card included for long data runs
Compact footprint for tight installations and field deployments
Made in Germany for industrial-grade reliability

Typical Applications (Canada)

Rotating equipment checks (fans, pumps, motors, gearboxes)
Shock logging during transport and handling (sensitive instruments, equipment crates)
Maintenance troubleshooting with vibration plus ambient conditions (humidity and temperature effects)
Long-term monitoring for preventive maintenance programs
R and D stress tests where vibration needs environmental correlation

Specifications

Acceleration (3-axis)

Measuring range: ±16 g
Resolution: 0.00390625 g
Accuracy: 0.24 g
Max sampling rate: 800 Hz

Temperature

Range: -20 to 65 °C
Accuracy: ±0.2 °C
Resolution: 0.01 °C
Max sampling rate: 1 Hz

Humidity

Range: 0 to 100% RH
Accuracy: ±1.8% RH
Resolution: 0.04% RH
Max sampling rate: 1 Hz

Air Pressure

Range: 10 to 2000 mbar
Accuracy: ±2 mbar (750 to 1100 mbar), otherwise ±4 mbar
Resolution: 0.02 mbar
Max sampling rate: 1 Hz

Light

Range: 0.045 to 188,000 lux
Resolution: 0.045 lux
Max sampling rate: 1 Hz

Physical

Size: 86.8 x 44.1 x 22.2 mm

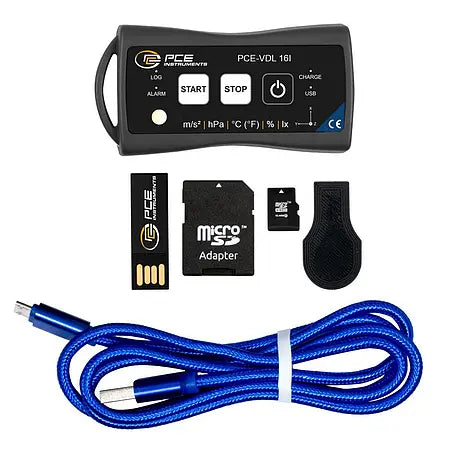

What’s Included

PCE-VDL 16I logger
USB to Micro-USB data cable
32 GB SD memory card
SD card ejector tool
USB drive with PC software and user manual
