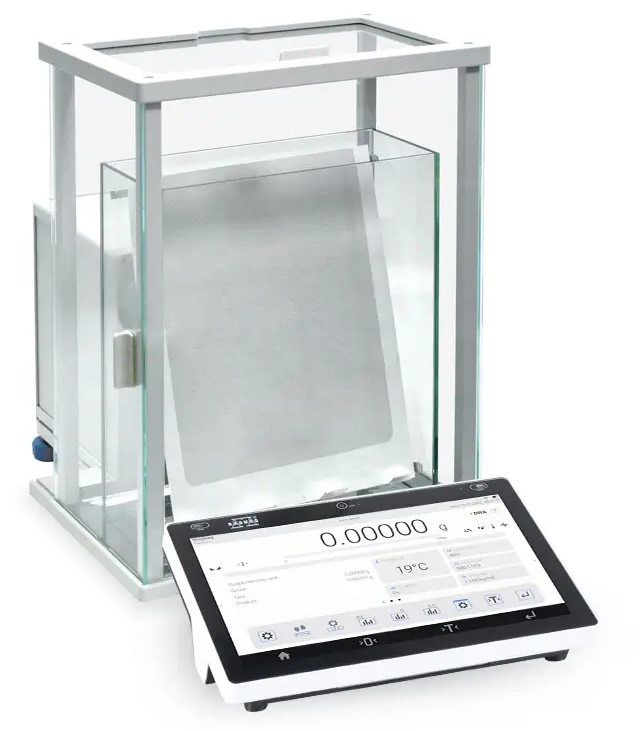

RADWAG XA 52.5Y.F Analytical Balance 52g x 0.01mg
SKU: XA 52.5Y.F
RADWAG XA 52.5Y.F Analytical Balance 52g x 0.01mg
XA 52.5Y.F Analytical Balance 52g x 0.01mg is an advanced analytical weighing device of the ELLIPSIS series of balances. Accurately determining weight, the ELLIPSIS series of balances can additionally provide digital auditing, voice command capability and is able to send light messages.
The digital weighing auditor equips the balance with real-time air buoyancy compensation and informs about the need for periodic inspection of accuracy and sensitivity. Additionally, the balance can be verified with a user password, RFID card, fingerprint reader, facial recognition mechanism, or a combination of these.
10’’ display offers comprehensive overview, up to 3 screens, widgets, charts, statuses, notes, and measurement history. Colour coding helps users observe and assess statuses, results, operations, and alerts with ease. Customizable widgets enable users to display essential data.
Adjacency, a process executed at two points as opposed to one, increases accuracy across the entire weighing range. This can provide more precise measurement outcomes. Additionally, the scale presents information regarding whether the weight of the sample is below or above the minimum weight allowance. Electrostatic samples that can't be weighed are no problem - the ionizer will quickly neutralize the charge.
Optional under-pan weighing - weighing instruments will allow under-pan weighing at any time after the purchase. All you need to do is order a dedicated hook.
| Maximum capacity [Max] |
52g |
| Minimum Load |
1mg |
| Readability [d] |
0.01mg |
| Verification Scale Interval [e] |
1mg |
| Tare range |
-52g |
| Standard repeatability [5% Max] |
0.007mg |
| Standard repeatability [Max] |
0.01mg |
| Standard minimum weight (USP) |
14mg |
| Standard minimum weight (U=1%, k=2) |
1.4mg |
| Permissible repeatability [5% Max] |
0.01mg |
| Permissible repeatability [Max] |
0.02mg |
| Linearity |
±0.03mg |
| Eccentric Load Deviation |
0.2mg |
| Stabilization time |
5 s (30 s for filters) |
| Adjustment |
internal (automatic) |
| OIML Class |
I |
| Leveling System |
semi-automatic - LevelSENSING |
| Display |
10″ touchscreen |
| Protection Class |
IP 43 |
| Delivery Components |
Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centering ring, brush, fabric dust cover, power supply |
| Weighing pan dimensions |
210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option) |
| Packaging dimensions |
510x865x680mm |
| Net weight |
12.7kg |
| Gross weight |
25kg |
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A |
| Operating temperature |
+10 — +50°C |
